close| Price | 172,000৳ |
| Regular Price | 189,000৳ |
| Status | In Stock |
| Product Code | 53823 |
| Brand | Solis |
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |
| Noise Level | < 65 dB(A) | |

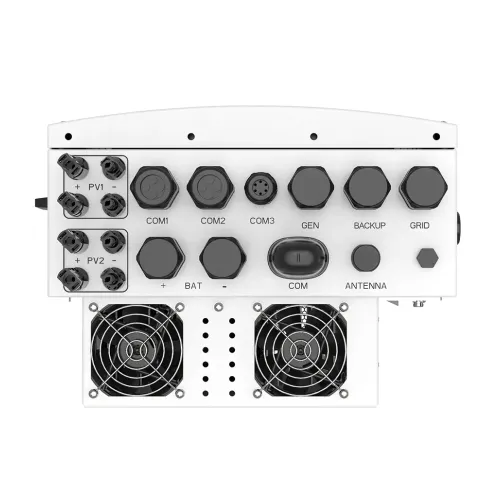

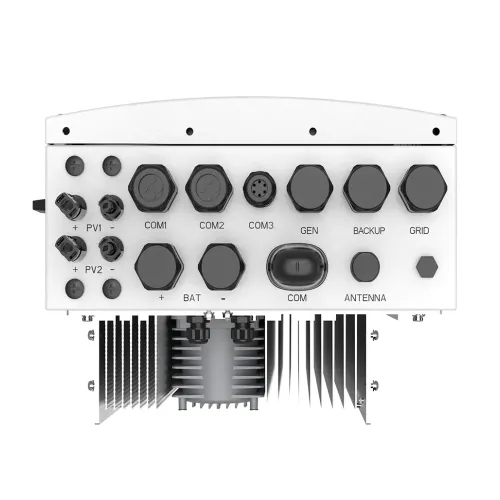

| Others | Display: 7.0" LCD & Bluetooth + APP DC connection: MC4 plug (PV port) / Terminal Block (BAT port) AC connection: Terminal Block Communication interface: Standard: RS485, CAN |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 8kW Rated grid voltage: 220 V / 230 V Rated grid output current: 36.4 A / 34.8 A Output AC (Back-up) Rated output power: 8 kW Back-up switch time: < 10 ms Rated output voltage: L/N/PE, 220 V / 230 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Input voltage range: 187 - 253 V Max. input current: 50 A Frequency range: 45 - 55 Hz / 55 - 65 Hz |
|
| DC Input | Supported Battery type: Li-ion / Lead-acid Battery voltage range: 40 - 60 V Max. charge / discharge power: 8 kW Max. charge / discharge current: 190 A Communication: CAN / RS485 |
|
| Solar Input | Input (PV Side) Recommended max. PV array size: 16 kW Max. usable PV input power: 12.8 kW Max. input voltage: 500 V Rated voltage: 330 V Start-up voltage: 90 V MPPT voltage range: 90 - 435 V Max. current input: 32 A / 32 A |
|
| Generator Input | Input AC (Generator side) Max. input power: 8 kW Max. input current: 36.4 A / 34.8 A Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 335 × 560 × 253 mm | |
| Weight | Approx. 23 kg | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |

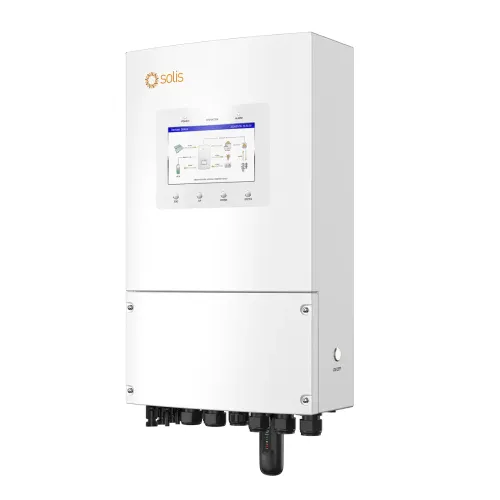

The Solis S6-EH1P8K-L-PLUS 8kW Single Phase Hybrid Solar Inverter delivers efficient solar power conversion for residential and commercial energy systems. With a rated output power of 8kW and maximum efficiency of 96.2%, this solar inverter supports reliable energy management. Its single-phase design operates at 220V or 230V, while IP66 protection supports installation in challenging environmental conditions.
The Solis S6-EH1P8K-L-PLUS supports a recommended maximum PV array size of 16kW and usable PV input power up to 12.8kW. It features a 500V maximum PV input voltage and dual 32A input capacity. Compatible with lithium-ion and lead-acid batteries, this hybrid inverter supports 40–60V battery systems, with charging and discharging power up to 8kW. These specifications support flexible solar energy storage and management.
This Solis solar inverter delivers 8kW backup output with a switching time below 10 milliseconds. Integrated protection includes anti-islanding, DC reverse polarity protection, and AFCI 2.0. Its operating temperature range extends from -25°C to +60°C. These features support stable operation and additional electrical protection. Users can monitor performance through the 7-inch LCD, Bluetooth, and mobile app connectivity.
The Solis S6-EH1P8K-L-PLUS includes RS485 and CAN communication interfaces for system integration and battery communication. Its generator input supports up to 8kW, providing another energy source when required. Measuring 335 × 560 × 253mm and weighing approximately 23kg, the unit features a white finish. Although it is not a 3kW solar inverter, this 8kW single phase inverter suits systems requiring higher output capacity.
In Bangladesh, you can get original Solis S6-EH1P8K-L-PLUS 8kW Hybrid Solar Inverter From Star Tech. We have a large collection of latest Inverter to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Solis S6-EH1P8K-L-PLUS 8kW Hybrid Solar Inverter comes with 5 Year warranty.
The latest price of Solis S6-EH1P8K-L-PLUS 8kW Hybrid Solar Inverter in Bangladesh is 172,000৳. You can buy the Solis S6-EH1P8K-L-PLUS 8kW Hybrid Solar Inverter at best price from our website or visit any of our showrooms.
