close| Price | 295,000৳ |
| Regular Price | 320,000৳ |
| Status | In Stock |
| Product Code | 53846 |
| Brand | Solis |
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |
| Noise Level | < 65 dB(A) | |
| Others | Display: 7.0" LCD & Bluetooth + APP PV connection MC4 connector Battery connection: Terminal Block AC connection: Terminal Block Communication interface: Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel × 2, RS485-Meter, RS485, DRM, DI, DO × 2 |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 16 kW Rated grid voltage: L/N/PE, 220 V / 230 V Rated grid output current: 72.7 A / 69.6 A Output AC (Back-up) Rated output power: 16 kW Back-up switch time: < 10 ms Rated output voltage: L/N/PE, 220 V / 230 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Max. input power: 24 kW Input voltage range: 187 - 253 V Max. input current: 109.1 A / 104.3 A |
|
| DC Input | Supported Battery type: Li-ion / Lead-acid Battery voltage range: 40 - 60 V Max. charge / discharge current: 290 A Communication: CAN / RS485 |
|
| Solar Input | Input DC (PV side) Recommended max. PV array size: 32 kW Max. usable PV input power: 25.6 kW Max. input voltage: 550 V Rated voltage: 380 V Start-up voltage: 100 V MPPT voltage range: 80 - 520 V Max. current input: 40 A / 40 A / 40 A |
|
| Generator Input | Input AC (Generator side) Max. input power: 16 kW Max. input current: 72.7 A / 69.6 A Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 459 × 845 × 313 mm | |
| Weight | Approx. 55.5 kg | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
The Solis S6-EH1P16K03-NV-YD-L 16 kW hybrid inverter is designed for single-phase solar power systems. This solar inverter delivers 97.6% maximum efficiency and supports grid connectivity, battery storage, and backup power. Its maximum PV input voltage reaches 550V DC, while the recommended maximum solar array size is 32 kW. With 25.6 kW maximum usable PV input power, this system supports high-capacity solar energy conversion for residential and commercial installations.
The Solis S6-EH1P16K03-NV-YD-L supports lithium-ion and lead-acid batteries with a 40–60V voltage range. Its maximum charge and discharge current reaches 290A, supporting substantial battery energy transfer. The MPPT voltage range spans 80–520V, with a 100V startup voltage. As an energy storage inverter, it integrates solar generation and battery storage. CAN and RS485 communication interfaces support compatible battery management systems.
This Solis hybrid inverter provides 16 kW rated grid output and 16 kW backup output at 220V or 230V. Its backup switching time is under 10 milliseconds. The grid solar inverter supports up to 24 kW AC input and 16 kW generator input. Wi-Fi, LAN, Bluetooth, and app control enable system monitoring. A 7-inch LCD displays operating information for convenient access.

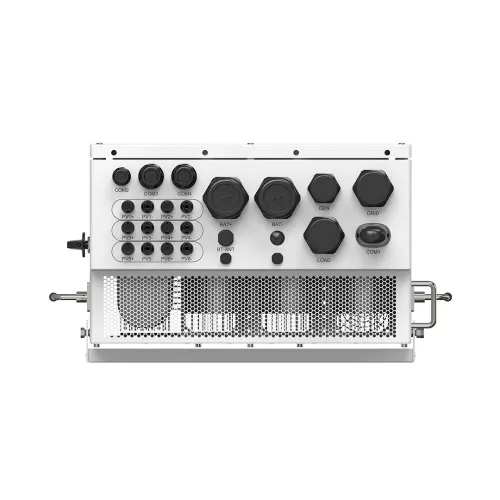

The Solis S6-EH1P16K03-NV-YD-L single-phase solar inverter features IP66 protection, anti-islanding safeguards, DC reverse-polarity protection, and surge protection. Its operating temperature range extends from -25°C to +60°C, with noise below 65 dB(A). The white unit measures 459 × 845 × 313 mm and weighs approximately 55.5 kg. MC4 PV connectors and terminal-block battery and AC connections support organized installation.
In Bangladesh, you can get original Solis S6-EH1P16K03-NV-YD-L 16kW Hybrid Solar Inverter From Star Tech. We have a large collection of latest Inverter to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Solis S6-EH1P16K03-NV-YD-L 16kW Hybrid Solar Inverter comes with 5 Year warranty.
The latest price of Solis S6-EH1P16K03-NV-YD-L 16kW Hybrid Solar Inverter in Bangladesh is 295,000৳. You can buy the Solis S6-EH1P16K03-NV-YD-L 16kW Hybrid Solar Inverter at best price from our website or visit any of our showrooms.
