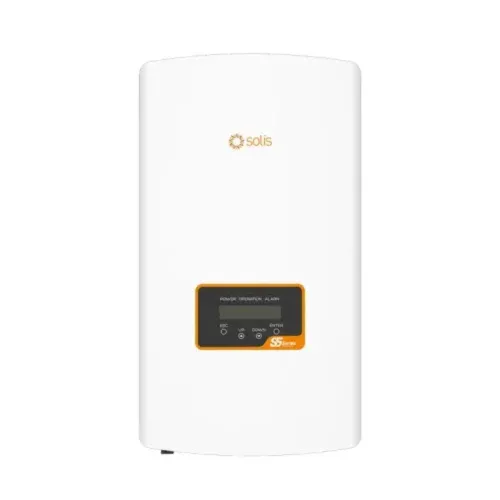

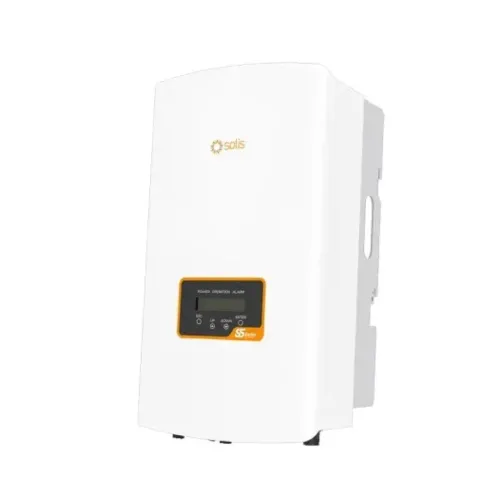

Solis S5-GR3P10K 10KW Three Phase ON-Grid Solar Inverter

Solis S5-GR3P10K 10KW Three Phase ON-Grid Solar Inverter

The SOLIS S5-GR3P10K 10KW Three Phase ON-Grid Solar Inverter is designed for solar power systems connected to a compatible three-phase electricity grid. It converts DC electricity generated by solar panels into AC electricity for grid-connected use. With a rated output power of 10kW and a recommended maximum PV input power of 15kW, this Solis 10KW Inverter supports solar system configurations designed around its electrical specifications. Its transformerless design and dual MPPT system provide key features for compatible residential, commercial, and other three-phase solar installations.

Solar Panel Compatibility

The Solis S5-GR3P10K Inverter provides 10kW of rated AC output power, with maximum output power of 11kW and maximum apparent output power of 11kVA. It supports a recommended maximum solar PV input power of 15kW. The inverter has a maximum DC input voltage of 1100V and a rated DC voltage of 600V. Its start-up voltage is 180V, allowing installers to assess the solar array's electrical requirements when planning a compatible system.

Dual MPPT Technology for Solar Input

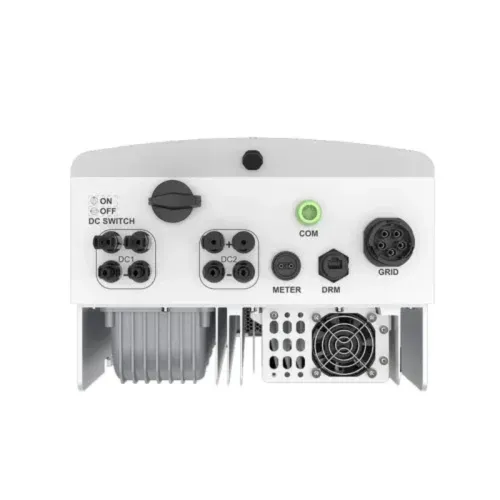

This Solis Dual MPPT Inverter features two maximum power point trackers (MPPTs) and supports two input strings for the 10KW model. Its MPPT voltage range is 160–1000V, while the maximum input current is 16A per input. These specifications help installers plan the solar panel arrangement and manage the electrical input within the inverter's limits. The panel string voltage, current, and total PV capacity should be checked before installation to ensure compatibility.

Three-Phase Grid-Tied Solar Connection

The Solis 10KW Three Phase Inverter supports three-phase grid connections at 220/380V or 230/400V, with a rated grid frequency of 50Hz or 60Hz. It is designed for on-grid solar systems that operate alongside a compatible electricity grid. The inverter also supports export power control, which can help manage electricity exported to the grid when the required equipment and settings are configured. Confirm local grid requirements and connection standards before installation.

High Efficiency with Energy Monitoring

The Solis S5-GR3P10K Solar Inverter offers maximum conversion efficiency of up to 98.5% for this model. Higher conversion efficiency helps reduce energy losses during the conversion of solar DC power into AC power. The series also supports 24-hour load consumption monitoring and adaptive weak-grid functionality. Monitoring availability depends on the system configuration and required communication equipment.

IP66 Rating for Protection

This Solis On-Grid Solar Inverter has an IP66 ingress protection rating. Its listed protection functions include DC reverse-polarity protection, short-circuit protection, output overcurrent protection, insulation resistance monitoring, residual current detection, surge protection, grid monitoring, anti-islanding protection, and temperature protection. The datasheet lists integrated AFCI 2.0 as optional. These features support system protection, while correct installation and configuration remain essential for safe operation.

Operating Conditions

The Solis S5-GR3P10K measures 310 × 563 × 219mm and uses a transformerless topology. The datasheet specifies an operating ambient temperature range of -25°C to +60°C, relative humidity of 0–100%, and a maximum operating altitude of 4000 metres. Night-time self-consumption is listed as less than 1W. Installers should consider the mounting location, ventilation, electrical connections, and environmental conditions when planning the installation./p>

Buy Solis S5-GR3P10K 10KW Three Phase ON-Grid Solar Inverter from Star Tech

In Bangladesh, you can get original Solis S5-GR3P10K 10KW Three Phase ON-Grid Solar Inverter From Star Tech. We have a large collection of latest Inverter to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. Solis S5-GR3P10K 10KW Three Phase ON-Grid Solar Inverter comes with 5 Year warranty.
