close| Price | To be announced |
| Status | Up Coming |
| Product Code | 50399 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2) | |
| Chipset | INTEL Z890 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
|
| M.2 Socket | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 1x DisplayPort 1.4 |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8125D 2.5Gbps LAN | |
| Wireless Communication module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

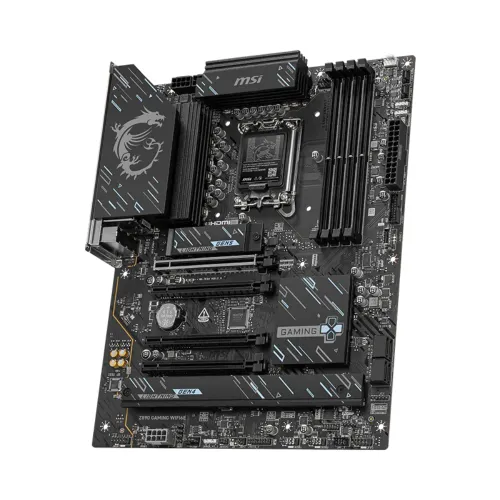

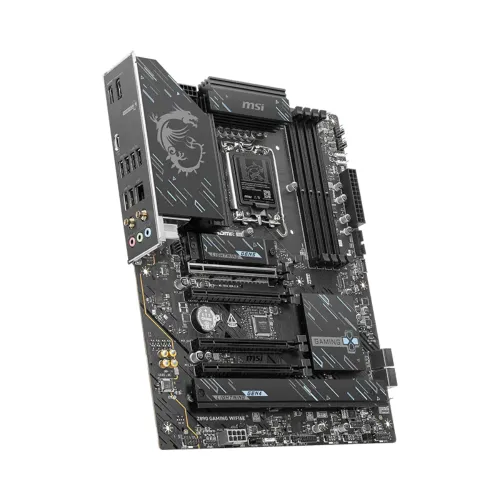

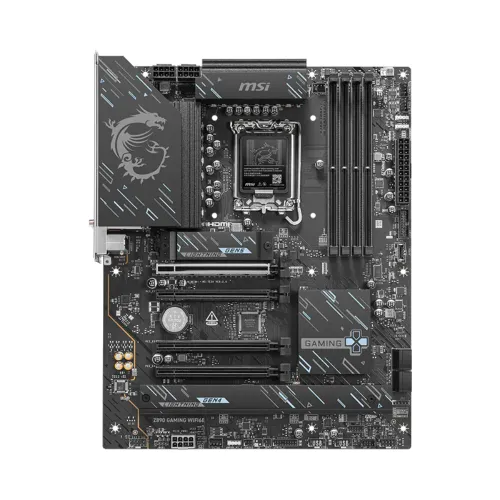

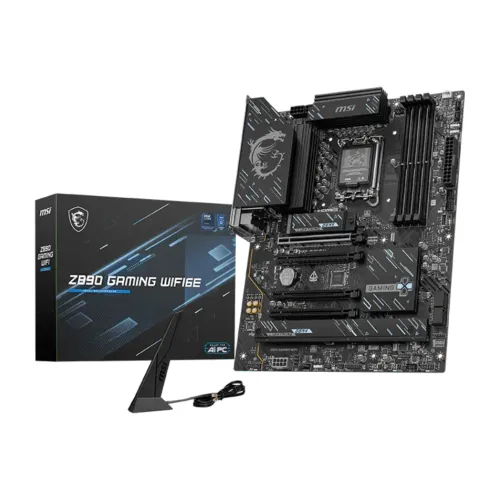

The MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard compitable with Intel Core Ultra Series 2 processors through the LGA 1851 socket. This motherboard supports four DDR5 UDIMM slots with a maximum capacity of 256GB and overclocking speeds up to 8800+ MT/s. The MSI Z890 GAMING WIFI6E ATX Motherboard includes four PCIe x16 slots, with the primary PCI_E1 slot running PCIe 5.0 x16 directly from the CPU.
Three M.2 slots support PCIe 5.0 and PCIe 4.0 NVMe drives, with the third slot also supporting SATA mode for storage flexibility. The MSI GAMING Motherboard provides four SATA 6G ports with RAID 0, 1, 5, and 10 support for SATA devices. RAID 0, 1, and 5 support extends to M.2 NVMe storage for flexible data redundancy configurations. The MSI Z890 Motherboard features Realtek ALC897 7.1-channel high-definition audio for immersive sound during gaming and media playback.
Onboard graphics output includes one HDMI 2.1 port and one DisplayPort 1.4, both supporting 4K at 60Hz. The MSI LGA 1851 Motherboard offers extensive USB connectivity, including USB 20Gbps Type-C ports both front and rear. MSI Z890 GAMING WIFI6E Motherboard has Realtek 8125D 2.5Gbps LAN delivers fast wired networking for demanding online gaming and large file transfers. The MSI ATX Motherboard includes built-in Wi-Fi 6E supporting 2.4GHz, 5GHz, and 6GHz bands up to 2.4Gbps, alongside Bluetooth 5.3. Three Addressable V2 RGB headers and one standard RGB header support extensive lighting customization options.
The MSI DDR5 Motherboard provides four system fan headers, a CPU fan header, and a combo pump and system fan header for comprehensive cooling control. The MSI Z890 GAMING WIFI6E Motherboard has four EZ Debug LEDs simplify troubleshooting during system builds and upgrades. A TPM 2.0 header adds hardware-level security support for Windows 11 systems. The MSI Motherboard measures 243.84mm by 304.8mm in standard ATX form factor, fitting most ATX cases.
In Bangladesh, you can get original MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price.The MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard has 3 year warranty.
The latest price of MSI Z890 GAMING WIFI6E ATX Motherboard in Bangladesh is 0৳. You can buy the MSI Z890 GAMING WIFI6E ATX Motherboard at best price from our website or visit any of our showrooms.
