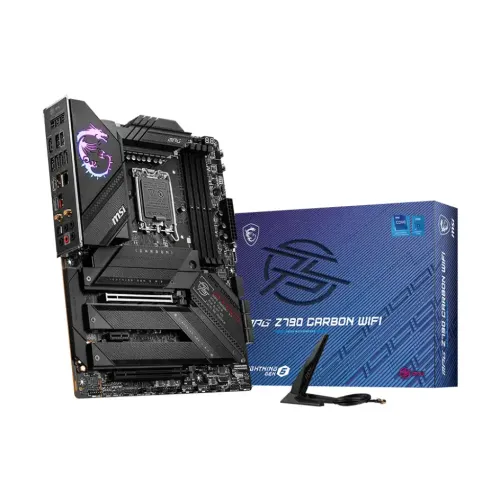

MSI MPG Z790 CARBON WIFI ATX Motherboard
  • MSI MPG Z790 CARBON WIFI ATX Motherboard
  • MSI MPG Z790 CARBON WIFI ATX Motherboard
  • MSI MPG Z790 CARBON WIFI ATX Motherboard
  • MSI MPG Z790 CARBON WIFI ATX Motherboard
Product | lenovo Ideapad Gaming 3 15ACH6

MSI MPG Z790 CARBON WIFI ATX Motherboard

Price 47,300৳
Regular Price 57,200৳
Status In Stock
Product Code 25331
Brand MSI

Key Features

  • Model: MPG Z790 CARBON WIFI
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 128GB, 7600+(OC) MHz
  • Graphics Output: 1x HDMI
  • Features: 2.5G LAN and Intel Wi-Fi 6E Solution
  • View More Info

Payment Options

Specification

Basic Information
Supported CPUSupports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
ChipsetINTEL Z790
Form FactorATX
243.84mmx304.8mm
AudioRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Memory
TypeDDR5
Slots4 x DIMM
Supported Memory7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC) /4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory128GB
Graphics
Graphics1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
Connector & Ports
HDMI1x HDMI
USB (s)4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
6x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)
LAN Port (s)Intel 2.5Gbps LAN
Wireless Communication moduleIntel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G port
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
AudioAudio Connectors
Internal I/O Ports1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen 2x2 Type C
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Others
Special Features 1x EZ LED Control switch
1x 2-Digit Debug Code LED
4x EZ Debug LED
Warranty Information
Manufacturing Warranty3 years

Description

MSI MPG Z790 CARBON WIFI ATX Motherboard

The MSI MPG Z790 CARBON WIFI Motherboard supports 14th/13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket. This ATX motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 7600+(OC) MHz. It comes with PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2. It also enables RAID 0, 1, 5, and 10 through SATA or 0, 1, and 5 via M.2. GPUs and other adaptor cards may be installed through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. It comes with an enlarged heatsink with a heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The 14th Gen Motherboard is equipped with 2.5 GbE Intel LAN and Wi-Fi 6E; quickly connects to wireless peripherals with Bluetooth 5.2. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals through two USB 2.0, two USB 3.2 Gen 1, and three USB 3.2 Gen 2x2 Type-A ports, or a USB 3.2 Gen 2x2 Type-C port. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI MPG Z790 CARBON WIFI 14th Gen Motherboard comes with a 03-year warranty.

What is the price of MSI MPG Z790 CARBON WIFI ATX Motherboard in Bangladesh?

The latest price of MSI MPG Z790 CARBON WIFI ATX Motherboard in Bangladesh is 47,300৳. You can buy the MSI MPG Z790 CARBON WIFI ATX Motherboard at best price from our website or visit any of our showrooms.
