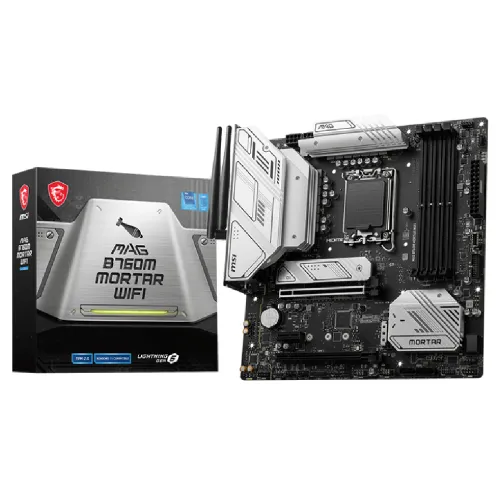

MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard
  • MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard
  • MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard
  • MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard

MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 27004
Brand MSI

Key Features

  • Model: MAG B760M MORTAR WIFI
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7000+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2x M.2 slot, Intel Wi-Fi 6E
  • View More Info
stars 220 Star Points
Out Of Stock

Specification

Basic Information
Supported CPUSupports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
ChipsetINTEL B760
Form FactormATX
243.84mmx243.84mm
AudioRealtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
TypeDDR5
Slots4
Supported MemorySupport 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory192GB
Graphics
GraphicsSupport HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz
Connector & Ports
HDMI1x HDMI
Display Port (s)2x DisplayPort
USB (s)4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)Realtek 2.5Gbps LAN
Wireless Communication moduleIntel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio1x Front Audio (JAUD)
Internal I/O Ports1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty3 years

Description

MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard

The MSI MAG B760M MORTAR WIFI DDR5 motherboard is an excellent choice for both gamers and power users. It supports Intel Core processors from the 14th, 13th, and 12th generations, as well as Pentium Gold and Celeron CPUs for the LGA 1700 socket. This motherboard also supports DDR5 memory, which can be overclocked to rates of up to 7000+ MHz. This motherboard's upgraded power architecture is a crucial feature, with a 12+1+1 duet rail power system, two 8-pin CPU power connections, Core Boost, and Memory Boost. These characteristics guarantee that the motherboard can easily manage high-performance processing needs. The MSI MAG B760M MORTAR WIFI DDR5 motherboard delivers a lightning-fast gaming experience for gamers. It has a PCIe 5.0 slot, a Lightning Gen 4 x4 M.2 slot, and a USB 3.2 Gen 2x2 port for quick data transmission and connection. This motherboard has a premium thermal solution, which incorporates an expanded heatsink design and M.2 Shield Frozr to avoid overheating. Its design assures that the system can operate at peak performance for extended periods without failure. The 14th Gen Motherboard also has an audio boost for studio-quality sound and a high-quality PCB constructed with 2oz thicker copper and server-grade level material. These qualities ensure that the motherboard is long-lasting and sturdy. This MSI MAG B760M MORTAR WIFI DDR5 motherboard is a strong and efficient choice for individuals looking for a high-performance system with quick connectivity and excellent audio quality.

Buy MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard from best Motherboard Shop in BD

In Bangladesh, you can get the original MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI MAG B760M MORTAR WIFI DDR5 Motherboard comes with 3 years warranty.

What is the price of MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard in Bangladesh?

The latest price of MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard in Bangladesh is 27,000৳. You can buy the MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard at best price from our website or visit any of our showrooms.
