close| Price | 23,500৳ |
| Regular Price | 25,850৳ |
| Status | In Stock |
| Product Code | 50866 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| BIOS | Flash BIOS Button | |
| Form Factor | mATX 226mmx243.84mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz |
|
| Display Port (s) | 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126 5G LAN | |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Bundled Software | Support for Windows 11 64-bit | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

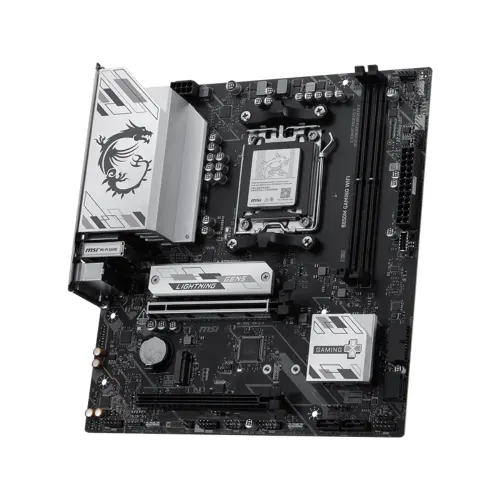

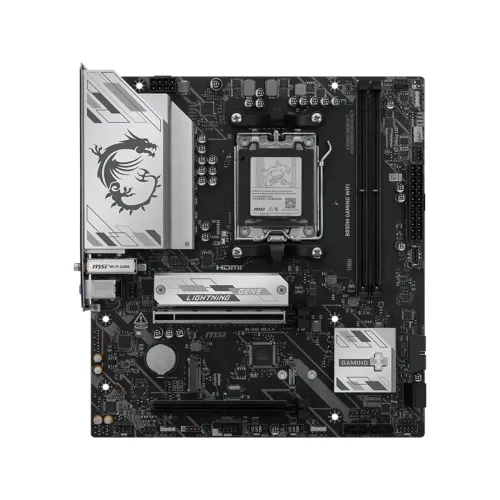

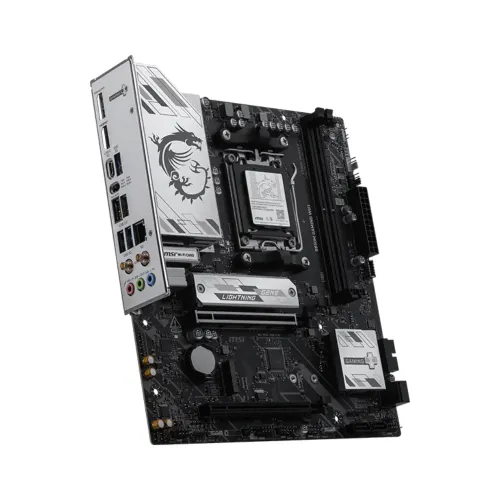

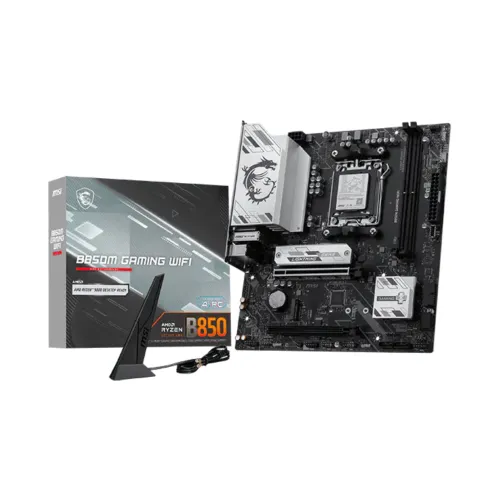

The MSI B850M GAMING WIFI AM5 mATX Motherboard is built for AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. This Motherboard runs on the AMD B850 chipset and supports two DDR5 UDIMM slots with a maximum capacity of 128GB. DDR5 memory speeds reach up to 8200 MT/s via overclocking, with JEDEC speeds supported from 4800 to 5600 MT/s for broad compatibility. AMD EXPO and dual-channel memory support maximize bandwidth and performance across all supported Ryzen processor generations.
The MSI B850M GAMING WIFI AM5 Motherboard features a primary PCIe 5.0 x16 slot delivering up to 128GB/s bandwidth for next-generation GPU performance. A secondary PCIe 4.0 x4 slot from the chipset provides additional expansion capability for other peripherals and cards. Two M.2 slots include M.2_1 supporting PCIe 5.0 x4 from the CPU and M.2_2 supporting PCIe 4.0 x4 for ultra-fast NVMe storage. Both M.2 slots benefit from M.2 Shield Frozr thermal protection that prevents throttling and keeps SSDs running at peak speeds.
The MSI B850M GAMING WIFI mATX Motherboard has four SATA 6G ports support RAID 0, 1, and 10 configurations for flexible traditional storage setups. The MSI WIFI7 Motherboard includes a pre-installed Wi-Fi 7 module supporting 2.4GHz, 5GHz, and 6GHz bands at up to 2.9Gbps with Bluetooth 5.4, MLO, and 4KQAM. A Realtek 8126 5G LAN controller delivers premium wired network performance for low-latency gaming and streaming.
Onboard graphics output includes HDMI 2.1 and DisplayPort 1.4, both supporting up to 4K 60Hz resolution. This MSI B850M GAMING WIFI AMD Motherboard has realtek ALC897 powers 7.1-channel HD audio for immersive studio-grade sound quality. The MSI AMD AM5 Motherboard features four EZ Debug LEDs and one EZ Memory Detection LED for simplified hardware troubleshooting. An extended PWM heatsink and enhanced circuit design keep even high-end processors running at full speed consistently. The MSI mATX Motherboard measures 226×243.84mm and fully supports Windows 11 64-bit operating systems.
In Bangladesh, you can get original MSI B850M GAMING WIFI7 AM5 mATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI B850M GAMING WIFI7 AM5 mATX Motherboard has 3 year warranty.
The latest price of MSI B850M GAMING WIFI mATX Motherboard in Bangladesh is 23,500৳. You can buy the MSI B850M GAMING WIFI mATX Motherboard at best price from our website or visit any of our showrooms.
