close| Price | To be announced |
| Status | Up Coming |
| Product Code | 51029 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4 |
|
| Chipset | AMD B550 | |
| BIOS | Flash BIOS Port | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4400+ MT/s • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode |
|
| Maximum Memory | Up to 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
|
| LAN Port (s) | Realtek RTL8111H 1Gbps LAN | |
| Wireless Communication module | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Dual-band 1T1R mode Supports MU-MIMO RX Supports 2.4GHz/ 5GHz/ 6GHz frequency band Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED Support for Windows 11 64-bit, Windows 10 64-bit |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

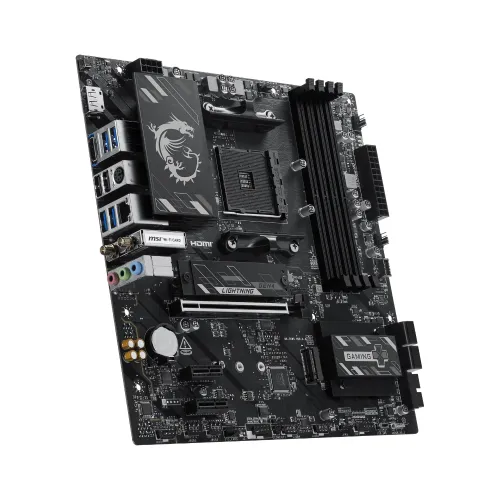

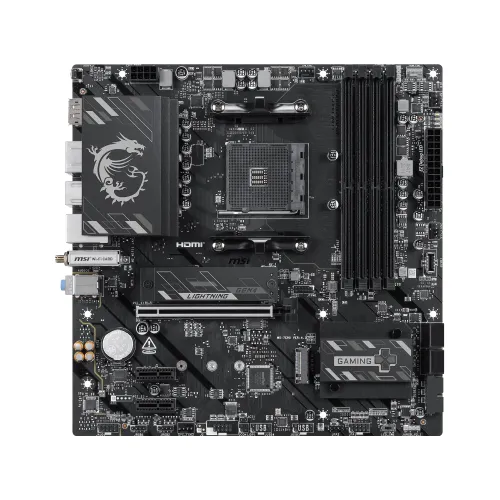

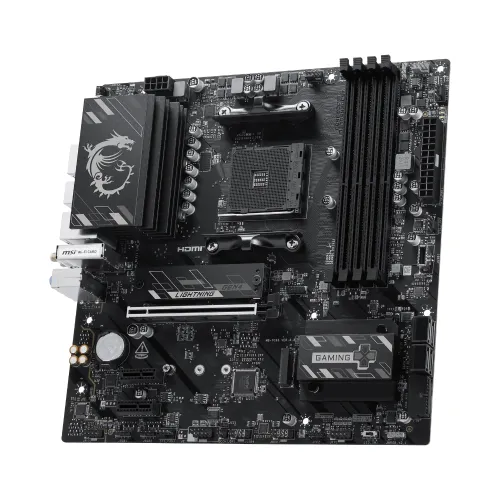

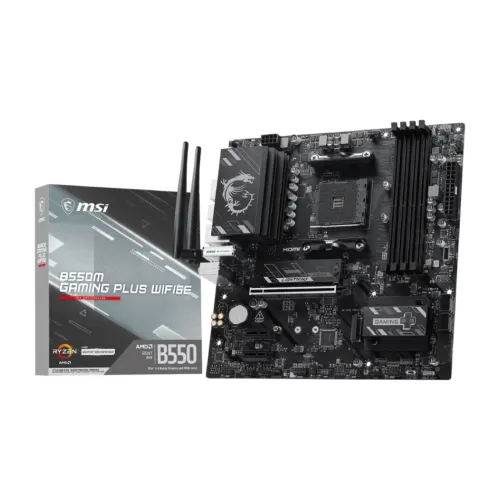

The MSI B550M GAMING PLUS WIFI6E AMD AM4 mATX Motherboard uses the AMD B550 chipset paired with an AM4 socket. This Motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors. Four DDR4 memory slots allow up to 128GB capacity, with speeds reaching 4400+MHz through A-XMP overclocking mode. Dual-channel support, JEDEC speeds, and non-ECC unbuffered memory compatibility ensure smooth multitasking and stable everyday computing.
This MSI B550M GAMING PLUS WIFI6E AMD Motherboard includes onboard HDMI 2.1 and DisplayPort 1.4 outputs for 4K 60Hz visuals. One PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots provide flexible expansion for graphics and peripherals. Realtek ALC897 codec delivers 7.1-channel high definition audio for immersive gaming and multimedia experiences. Storage options include two M.2 slots, PCIe 4.0 x4 and PCIe 3.0 x4, plus four SATA 6G ports. RAID 0, 1, and 10 support for SATA drives, along with RAID 0 and 1 for NVMe, boosts data protection.
This MSI B550M GAMING PLUS WIFI6E AMD AM4 Motherboard has ten USB ports cover USB 2.0 and USB 5Gbps Type A and Type C connections for fast, versatile connectivity. Realtek RTL8111H Gigabit LAN ensures stable wired networking, while built-in Wi-Fi 6E and Bluetooth 5.3 add wireless freedom. This MSI Motherboard features generous internal headers, including fan connectors, RGB headers, front panel, and TPM 2.0 support. Four EZ Debug LEDs simplify troubleshooting, making builds faster and reducing guesswork during assembly.
The MSI B550M GAMING PLUS WIFI6E Motherboard is a compact 243.84mm by 243.84mm mATX form factor fits neatly into most modern PC cases. MSI Center software unifies system tools into one user-friendly interface for easy monitoring and customization. Windows 11 and Windows 10 64-bit operating systems are fully supported for everyday reliability.
In Bangladesh, you can get original MSI B550M GAMING PLUS WIFI6E AM4 mATX Motherboard From Star Tech. We have a large collection of latest MSI AMD Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI B550M GAMING PLUS WIFI6E AM4 mATX Motherboard comes with 3 years warranty.
The latest price of MSI B550M GAMING PLUS WIFI6E mATX Motherboard in Bangladesh is 0৳. You can buy the MSI B550M GAMING PLUS WIFI6E mATX Motherboard at best price from our website or visit any of our showrooms.
