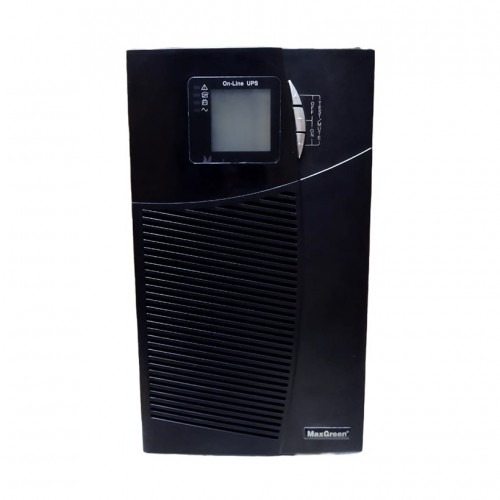

MaxGreen MGO-S1K(PX1K) 1 KVA Online UPS
mymensingh outlet

MaxGreen MGO-S1K(PX1K) 1 KVA Online UPS

Price To be announced
Status Discontinued
Product Code 10325
Brand MaxGreen

Key Features

  • Model: MaxGreen MGO-S1K(PX1K) 1 KVA
  • Capacity 1KVA/900W
  • Input voltage 220VAC
  • Battery Voltage/Capacity: 3X12V/9AH
  • Weight 10.8kg
  • View More Info
stars 220 Star Points
info Call for Best Price: 01313717027
Discontinued

Specification

Main Feature
Capacity1KVA/900W
Input Voltage220VAC
Output Voltage220VAC
Frequency (Battery Mode)50Hz+/-0.05Hz
BatteryBattery Type Value Regulated Maintainance Free Lead Acid(VRLA) for standard Model with internal battery
Battery Voltage/Capacity 3X12V/9AH
Recharge Time ~5Hours
Max recharge current 1.5A
Floating charge Voltage 27.3V
Input Features
Frequency40~70Hz
Power Factor0.99@Full Load
Voltage Range110V~300V Halfload 176V~300V Full load
Manufacture Warranty
Warranty01 Year

Description

MaxGreen MGO-PX1K 1 KVA Online UPS has  Input Nominal input voltage 220VAC ,Voltage Range 110V~300V Halfload 176V~300V Full load, Frequency Range 40~70Hz,Power Factor 0.99@Full Load. Output voltage 220VAC,Voltage Regulation 1%, Frequency(Sync.Mode) 47Hz~53Hz. Frequency(Bat.Mode) 50Hz+/-0.05Hz ,Output THDv 2% linear Load 6% Non-Linear Load ,Waveform Pure Sinewave. Transfer Time Line Mode--Bat Mode 0ms, Inv--Bypass Mode <4ms. Efficiency AC-AC 89% ,ECO 94% ,Battery Mode 88%. Battery & Charger Voltage/Capacity 3X12V/7AH. Battery Type Value Regulated Maintenance Free Lead Acid(VRLA) for standard Model with internal battery.Recharge Time ~5Hours.Max recharge current 1.5A. Floating charge Voltage 27.3V. Display LCD, Buzzer Alarm Bat.Mode/Bat.Low/Overload/Fault. Dimension 145(W)X220(H)X328(L)mm. Weight 10.8 kg. Environment Humidity 5~97%(Non Condensing) .Operating Ambient Temperature 0~40℃. Communication Port S 232/SNMP(opion)/USB(option).
