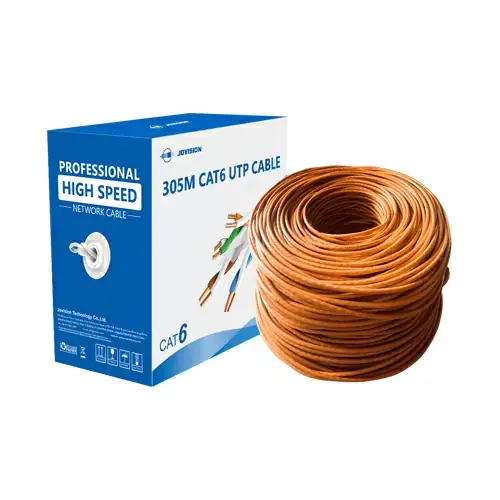

Jovision JVS-NL6A57 CAT6 305M UTP Cable

Jovision JVS-NL6A57 CAT6 305M UTP Cable

The Jovision JVS-NL6A57 CAT6 305M UTP Cable is a premium networking solution engineered for high-speed and reliable data transmission over long distances. The Jovision JVS-NL6A57 CAT6 UTP Cable features CCA (Copper-Clad Aluminum) conductors with 8% copper, each with a diameter of 0.57 mm ± 0.01 mm (23 AWG) for excellent electrical performance. These conductors are insulated with high-density polyethylene (HDPE), boasting a minimum thickness of 0.18 mm and a diameter of 0.89 mm ± 0.1 mm, organized in four colour-coded twisted pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green, and Brown/White-Brown. A translucent PE separator (4.5 × 0.4 mm) minimizes crosstalk, while the orange PVC sheath provides robust protection with a minimum thickness of 0.8 mm and an outer diameter of 6 mm ± 0.20 mm. Mechanically, the Jovision JVS-NL6A57 CAT6 305 Meter UTP Cable offers tensile strengths of ≥13.5 MPa for the sheath and ≥16 MPa for insulation, with elongation at break values of ≥150% for the sheath and ≥300% for insulation, and conductor elongation of ≥15%, ensuring durability during installation. With a maximum DC resistance of 18.5Ω/100m, this cable guarantees stable network performance. Designed for versatile applications, the Jovision JVS-NL6A57 operates in temperatures from –20°C to +60°C, supports installation between 0°C and +50°C, and can be stored at –10°C to +40°C with <60% humidity. Available in a generous 305-meter length (1000.66 ft ± 1.5 m) and packaged in two protective boxes per pack, with net and gross weights of 7.8 kg ± 0.4 kg and 8.8 kg ± 0.4 kg, the Jovision JVS-NL6A57 CAT6 305M UTP Cable is the ideal choice for professional, commercial, and residential network setups.

Buy Jovision JVS-NL6A57 CAT6 305M UTP Cable From Star Tech

In Bangladesh, you can get the original Jovision JVS-NL6A57 CAT6 305M UTP Cable From Star Tech. We have a large collection of the latest UTP Cable to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Jovision JVS-NL6A57 CAT6 305M UTP Cable comes with no Warranty.
