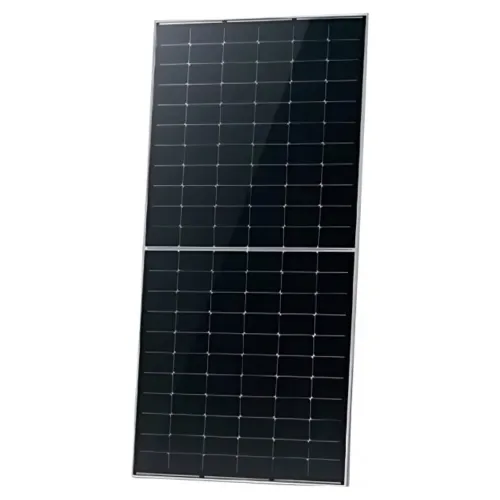

JinKo 66HL4M-BDV 625W N-Type Bifacial Module Dual Glass Solar Panel

JinKo 66HL4M-BDV 625W N-Type Bifacial Module Dual Glass Solar Panel

The JinKo 66HL4M-BDV is a high-output N-Type Solar Panel designed for modern solar power systems. It uses N-type monocrystalline cells with TOPCon technology for strong energy performance. This 625W Solar Panel delivers up to 625W maximum power, with module efficiency reaching 23.14%. The series also includes 600W solar panel power options. Its bifacial design captures light from both sides for higher energy yield.The Dual glass construction uses 2.0 mm anti-reflective front glass and 2.0 mm heat-strengthened rear glass. This structure supports long-term outdoor operation.

JinKoSolar HOT 2.0 technology further supports efficiency and module reliability. SMBB technology improves light trapping and current collection. TOPCon technology helps reduce LID and LeTID degradation. JinKo Tiger Neo 66HL4M-BDV N-Type Solar Panel also supports stronger low-light performance during changing weather conditions. The Bifacial Module has a certified front static load of 5400 Pa. Its rear side supports up to 2400 Pa static load. Anti-PID technology helps reduce performance loss from potential-induced degradation.

The module contains 132 cells and measures 2382 × 1134 × 30 mm. JinKo 66HL4M-BDV Solar Panel weighs 32.4 kg and uses an IP68-rated junction box. The maximum power voltage (Vmp) ranges from 40.16V to 40.88V. The maximum power current (Imp) ranges from 14.94A to 15.29A. The open-circuit voltage (Voc) ranges from 48.28V to 49.28V. The short-circuit current (Isc) ranges from 15.84A to 16.14A. The module supports up to 1500V DC system voltage. JinKo 66HL4M-BDV 625W Solar Panel operating temperature ranges from -40°C to +85°C. This Dual glass Bifacial Module suits commercial, industrial, utility-scale, and high-capacity solar installations.

Buy JinKo 66HL4M-BDV 625W N-Type Solar Panel from Star Tech

In Bangladesh, you can get original JinKo 66HL4M-BDV 625W N-Type Solar Panel From Star Tech. We have a large collection of latest Solar Panel to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The JinKo 66HL4M-BDV 625W N-Type Solar Panel comes with 10 year warranty.
