close| Price | 39,000৳ |
| Regular Price | 42,900৳ |
| Status | In Stock |
| Product Code | 49127 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors |
|
| Chipset | AMD X870 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMMs | |
| Supported Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

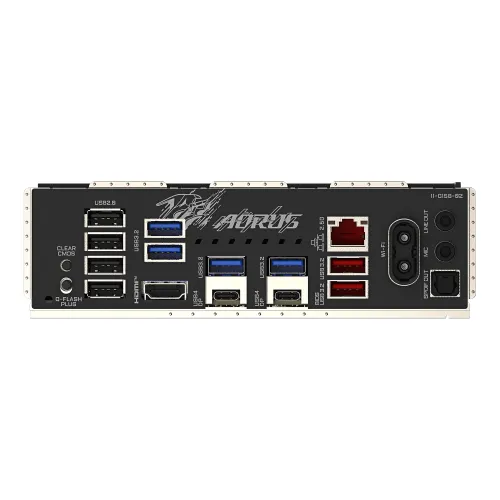

| USB (s) | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

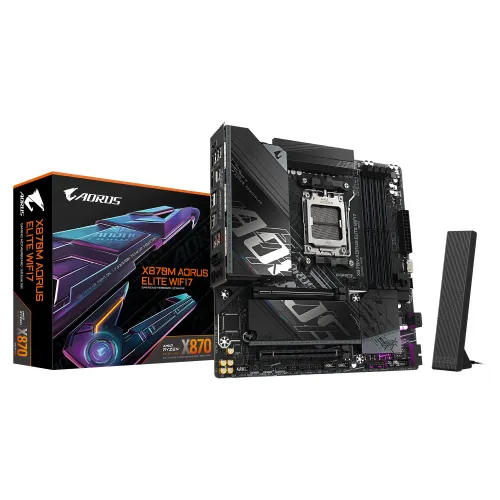

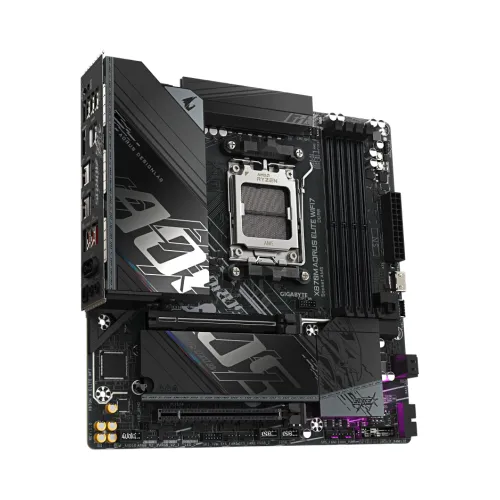

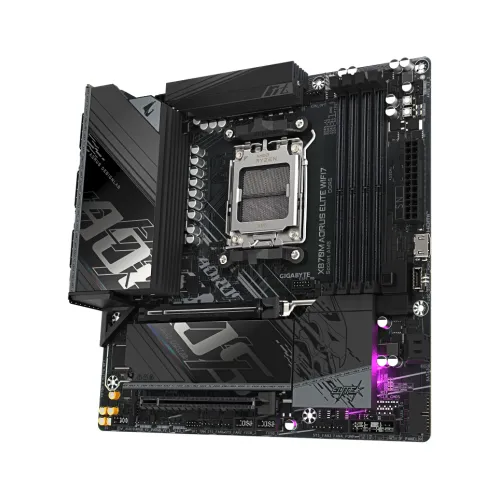

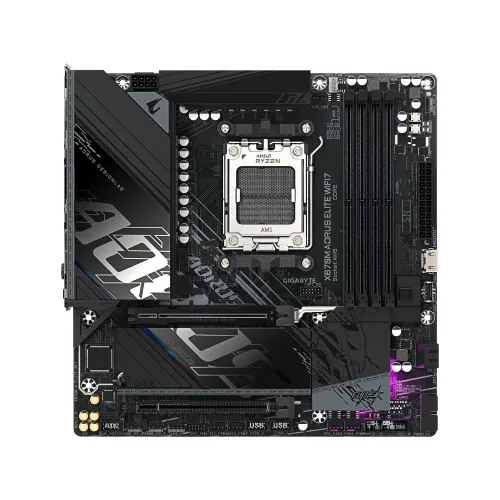

The GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard is a next‑generation Gigabyte motherboard engineered for gamers, creators, and PC enthusiasts. Supporting AMD Ryzen AM5 processors, this GIGABYTE X870M AORUS ELITE WIFI7 Motherboard delivers cutting‑edge performance with DDR5 memory, PCIe 5.0 expansion, and ultra‑fast WiFi 7 connectivity. Compact yet powerful, this Gigabyte WiFi motherboard combines advanced thermal design, high‑speed networking, and versatile expansion in a micro‑ATX form factor, making it one of the most reliable Gigabyte 870 motherboards for modern builds.
The GIGABYTE X870M AORUS ELITE supports DDR5 memory for faster data transfer and improved efficiency, ideal for gaming and multitasking. PCIe 5.0 slots provide ultra‑fast bandwidth for next‑generation GPUs and NVMe SSDs, ensuring maximum performance for high‑end systems.
Designed for AMD Ryzen AM5 processors, this motherboard delivers robust computing power for gaming, streaming, and productivity. The X870M AORUS ELITE ensures multi‑core performance and advanced workload support in a compact design.
Equipped with WiFi 7 and 2.5GbE LAN, this Gigabyte WiFi motherboard provides ultra‑fast and stable connectivity. Perfect for competitive gaming and high‑bandwidth tasks, it ensures seamless online experiences with reduced latency.
Featuring enlarged heatsinks, optimized airflow, and reinforced thermal guards, the X870M AORUS ELITE maintains stability under heavy loads. The AORUS cooling system ensures consistent performance during extended gaming sessions.
The micro‑ATX design makes the GIGABYTE X870M AORUS ELITE WIFI7 Motherboard ideal for compact builds without sacrificing performance. It offers versatile expansion options, multiple USB 3.2 Gen2 ports, and high‑definition audio for a complete PC experience.
In Bangladesh, you can get original GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard From Star Tech. We have a large collection of latest Gigabyte AMD Motherboard to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The GIGABYTE X870M AORUS ELITE WIFI7 DDR5 AM5 mATX Motherboard has 3 Year warranty.
The latest price of GIGABYTE X870M AORUS ELITE WIFI7 Motherboard in Bangladesh is 39,000৳. You can buy the GIGABYTE X870M AORUS ELITE WIFI7 Motherboard at best price from our website or visit any of our showrooms.
