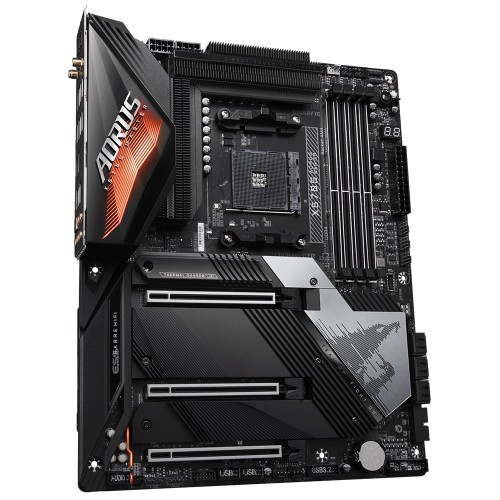

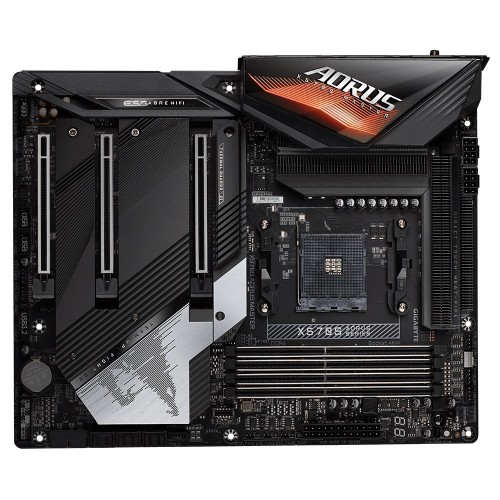

GIGABYTE X570S AORUS MASTER AMD ATX Motherboard
  • GIGABYTE X570S AORUS MASTER AMD ATX Motherboard
  • GIGABYTE X570S AORUS MASTER AMD ATX Motherboard
  • GIGABYTE X570S AORUS MASTER AMD ATX Motherboard
  • GIGABYTE X570S AORUS MASTER AMD ATX Motherboard
Product Page After Image | bKash Cashback

GIGABYTE X570S AORUS MASTER AMD ATX Motherboard

Price To be announced
Status Up Coming
Product Code 18680
Brand GIGABYTE

Key Features

  • Model: X570S AORUS MASTER
  • Supports Ryzen 5000/ 4000 G/ 3000/ 3000 G/ 2000/ 2000 G Series Processors
  • Dual Channel DDR4, 4 DIMMs
  • Intel WiFi 6E 802.11ax & BT 5.2
  • Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
  • View More Info
Up Coming

Specification

Basic Information
Supported CPUAMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
ChipsetAMD X570
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX Form Factor; 30.5cm x 24.4cm
AudioRealtek ALC1220-VB audio CODEC
* The front panel line out jack supports DSD audio.
ESS SABRE9118 DAC chip
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series Processors support PCIe 4.0 x16 mode
AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series Processors support PCIe 3.0 x16 mode
AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series Processors support PCIe 3.0 x8 mode

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series Processors support PCIe 4.0 x8 mode
AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series Processors support PCIe 3.0 x8 mode
AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series Processors do not support this slot
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 4.0* /3.0 x4 mode
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
M.2 Socket1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs
2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs
Memory
TypeDual channel memory architecture
Slots4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Supported MemoryAMD Ryzen 5000 Series processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

AMD Ryzen 4000 G-Series processors:
Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

AMD Ryzen 3000 Series processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/

AMD Ryzen 2000 G-Series Processors:
Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB
Graphics
GraphicsSupport for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only.
Connector & Ports
USB (s)CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel

Chipset+ASMedia USB 3.2 Gen 2x2 Controller:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports, available through the internal USB headers

Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntel Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMDRyzen 2000SeriesProcessors/AMDRyzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.

2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.

6 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
AudioInternal: 1 x front panel audio header
Back Panel: 5 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt add-in card connector
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS jumper
Voltage Measurement Points
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareNorton Internet Security (OEM version)
cFosSpeed
Warranty Information
Manufacturing Warranty03 years

Description

GIGABYTE X570S AORUS MASTER AMD ATX Motherboard

The GIGABYTE X570S AORUS MASTER AMD ATX Motherboard Supports AMD Ryzen 5000 Series/ Ryzen 4000 G Series/ Ryzen 3000 Series/ Ryzen 3000 G Series/ Ryzen 2000 Series/ Ryzen 2000 G Series Processors. It is based on AMD X570 Chipset. It has 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. It supports Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings.  It features Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage and Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate. The GIGABYTE X570S AORUS MASTER is equipped with Intel WiFi 6E 802.11ax & BT 5.2 and Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. This motherboard is supported with Blazing Fast Intel 2.5GbE LAN with cFosSpeed. Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than the previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals.125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB, and WIMA Audio Capacitors. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. It supports Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. The GIGABYTE X570S AORUS MASTER comes with a 3-years warranty.

What is the price of GIGABYTE X570S AORUS MASTER Motherboard in Bangladesh?

The latest price of GIGABYTE X570S AORUS MASTER Motherboard in Bangladesh is 40,999৳. You can buy the GIGABYTE X570S AORUS MASTER Motherboard at best price from our website or visit any of our showrooms.
