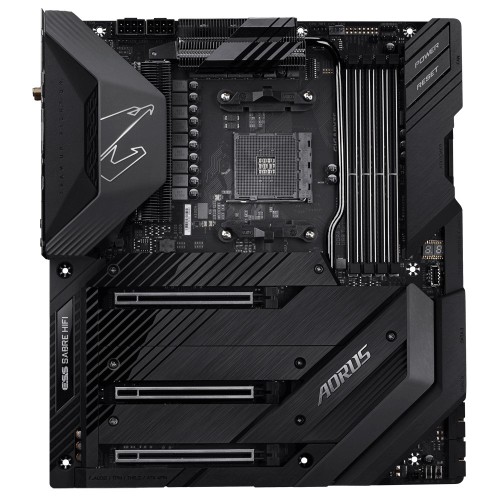

Gigabyte X570 Aorus Xtreme DDR4 AM4 Socket AMD Motherboard
  • Gigabyte X570 Aorus Xtreme DDR4 AM4 Socket AMD Motherboard
  • Gigabyte X570 Aorus Xtreme DDR4 AM4 Socket AMD Motherboard
  • Gigabyte X570 Aorus Xtreme DDR4 AM4 Socket AMD Motherboard

Gigabyte X570 Aorus Xtreme DDR4 AM4 Socket AMD Motherboard

Price To be announced
Status Out Of Stock
Product Code 10947
Brand GIGABYTE

Key Features

  • Model: Gigabyte X570 Aorus Xtreme
  • Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
  • Chipset AMD X570
  • Dual Channel ECC/ Non-ECC
  • Thermal Reactive Armor Design
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUSupports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
ChipsetAMD X570
BIOS2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorE-ATX Form Factor; 30.5cm x 27.0cm
Expansion Slots
PCI3rd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
2nd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors, the PCIEX16 slot operates at up to x8 mode.
2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset (PCIEX4):
1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4
For 3rd Generation AMD Ryzen processors only.
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) (M2B_SOCKET)
For 3rd Generation AMD Ryzen processors only.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) (M2C_SOCKET)
For 3rd Generation AMD Ryzen processors only.
Memory
TypeDual channel memory architecture
Slots4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Supported Memory3rd Generation AMD Ryzen™ processors:
Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB
Graphics
GraphicsSupport for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
* For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
Connector & Ports
USB (s)2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
* For 3rd Generation AMD Ryzen processors only.
2 x USB 3.2 Gen 1 ports on the back panel
Integrated in the Chipset:
1 x USB Type-C port with USB 3.2 Gen 2
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
3 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
LAN Port (s)1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
1 x Intel GbE LAN phy (10/100/1000 Mbit) (LAN2)
Supported StorageIntegrated in the CPU (M2A_SOCKET):
3rd Generation AMD Ryzen™ processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
* For 3rd Generation AMD Ryzen™ processors only.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
* For 3rd Generation AMD Ryzen™ processors only.
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
AudioRealtek ALC1220-VB codec
The front panel line out jack supports DSD audio.
ESS SABRE9218 DAC chip
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x OC PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
1 x noise detection header
2 x temperature sensor headers
1 x power button
1 x reset button
2 x BIOS switches
Voltage Measurement Points
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
USB TurboCharger
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty03 years

Description

Gigabyte X570 Aorus Xtreme DDR4 AM4 Socket AMD 3rd Gen Ryzen Mainboard

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system. Innovative design, cutting-edge function, state-of-art aesthetics, sophisticated thermal design, next generation network connection ,Hi-Fi level audio system. X570 AORUS XTREME is the new definition of flagship motherboard. GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system. To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS XTREME is a true beast among motherboards. X570 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming. Hungry for better performance? X570 AORUS XTREME has full PCIe 4.0 design, supports high frequency memory, and full SSD thermal guard to make sure you get the maximum full system performance. A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed. GIGABYTE ID team designs X570 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty. For Hi-Fi Audio Solution, can be grouped into 2 parts. Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB SNR, 112dB THD+N and supports higher impedance up to 600 Ω headphone. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. Audio Signal Optimization, TXC Oscillator provides precise time triggers to Digital-Analog Converters. WIMA Capacitors to deliver crystal and balanced sound. GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the X570 AORUS XTREME and reinforce every slot to make each of them solid and durable.

What is the price of Gigabyte X570 Aorus Xtreme Motherboard in Bangladesh?

The latest price of Gigabyte X570 Aorus Xtreme Motherboard in Bangladesh is 63,500৳. You can buy the Gigabyte X570 Aorus Xtreme Motherboard at best price from our website or visit any of our showrooms.
