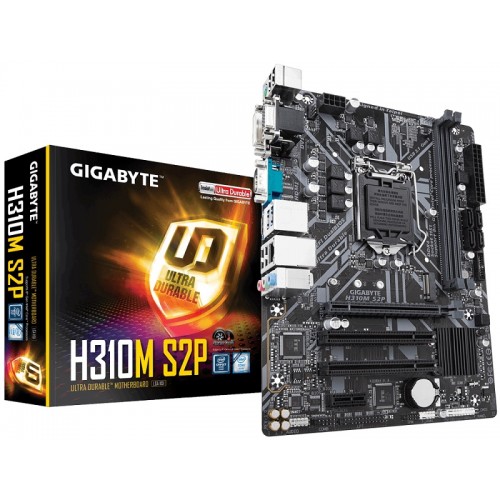

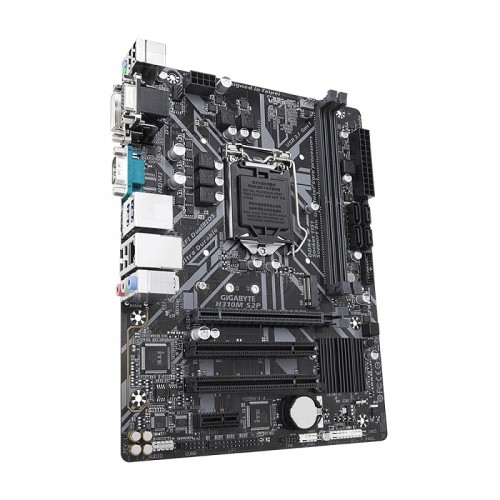

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
  • Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
  • Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
  • Gigabyte H310M S2P 8th Gen Micro ATX Motherboard

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard

Price To be announced
Status Discontinued
Product Code 8551
Brand GIGABYTE

Key Features

  • Model: H310M S2P
  • Chipset: Intel H310 Express
  • Intel Socket 1151 for 8th Gen Core Processors
  • 2 x DIMM, Max. 32GB DDR4
  • 2 x PCIe & 2 x PCI slots
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupport for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support
L3 cache varies with CPU
ChipsetIntel® H310 Express Chipset
BIOS2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 24.4cm x 18.5cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Memory
TypeDDR4
Slots2 x DIMM sockets
Supported MemorySupport for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Maximum Memory32 GB
Graphics
Graphics1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory1 GB

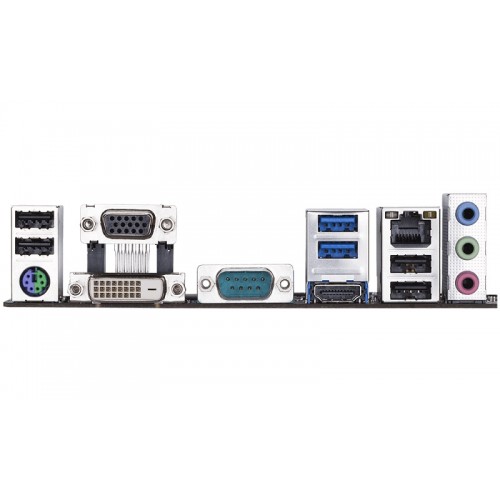

Connector & Ports
HDMI1 x HDMI port
USB (s)4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
AudioRealtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty03 Years

Description

Gigabyte H310M S2P 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 8-Channel HD Audio with High Quality Audio Capacitor board has dual channel DDR4 maximum 32GB memory and it has the capability of Ultra-Fast M.2 with PCIe Gen2 X2 & SATA and USB 3.1 Gen 1 interface. If we consider the graphics of this Anti-Sulfur Resistors Design board supports Intel HD graphics having the maximum resolution of 4096x2160@30 Hz for HDMI and 1920x1200@60 Hz for D-Sub & DVI-D port. This High Quality  board has 2 x PCIe & 2 x PCI slots, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, GIGABYTE UEFI DualBIOSâ„¢  and CEC 2019 Ready.

Gigabyte H310M S2P latest 8th gen mainboard with Intel H310 Express chipset is a great choice for your desktop setup and have the best price in Chattagram, Rangpur, Dhaka, Khulna & Sylhet. Order your PC components from Star Tech online shop and have the delivery at any place in Bangladesh.

Questions (3)

Have question about this product? Get specific details about this product from expert.

Tawheed on 05 Feb 2020

Q: Does it support core i3 9th gen processo?

A: Yes Sir, the Gigabyte H310M S2P 8th Gen Micro ATX Motherboard will be able to support core i3 9th gen processor.

By Star Tech Support 05 Feb 2020

Abir on 09 Sep 2019

Q: On which moatherboard will the core i5 9400F support?

A: Yes Sir, you can use the Gigabyte H310M S2P 8th Gen Micro ATX Motherboard which is able to support the i5 9400F.

By Star Tech Support 09 Sep 2019

Sabbir on 30 Jun 2019

Q: এই মাদারবোর্ড এ কি Intel I5 9400F সাপোর্ট নিবে

A: No Sir, This Gigabyte H310M S2P 8th Gen Micro ATX Motherboard will not support Intel I5 9400F processor. Because this motherboard is 8th Generation and the Processor is 9th Generation.

By Star Tech Support 30 Jun 2019
