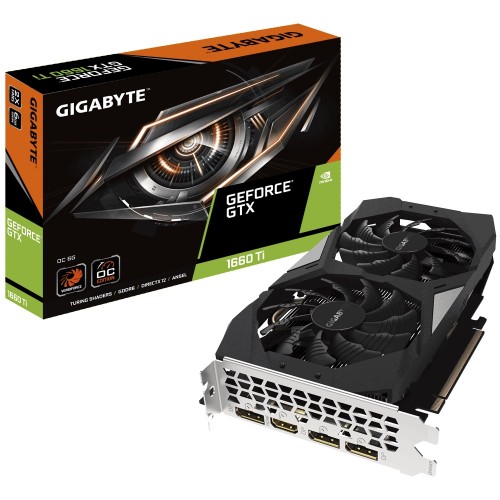

Gigabyte GeForce GTX 1660 Ti OC 6GB GDDR6 Graphics Card
  • Gigabyte GeForce GTX 1660 Ti OC 6GB GDDR6 Graphics Card
  • Gigabyte GeForce GTX 1660 Ti OC 6GB GDDR6 Graphics Card
Product Page After Image | Lenovo Ideapad Flex 5

Gigabyte GeForce GTX 1660 Ti OC 6GB GDDR6 Graphics Card

Price To be announced
Status Discontinued
Product Code 9787
Brand GIGABYTE

Key Features

  • Model: GV-N166TOC-6GD
  • Type GeForce GTX 1660 Ti
  • Memory Size 6 GB
  • Memory Type GDDR6
  • Card Bus PCI-E 3.0 x 16
  • View More Info
Discontinued

Specification

Video Memory Specifications
TypeGDDR6
Size6GB
Memory Clock12000 MHz
BUS Type 192 bit
Memory InterfaceMemory Bandwidth (GB/sec) 288 GB/s
Interface

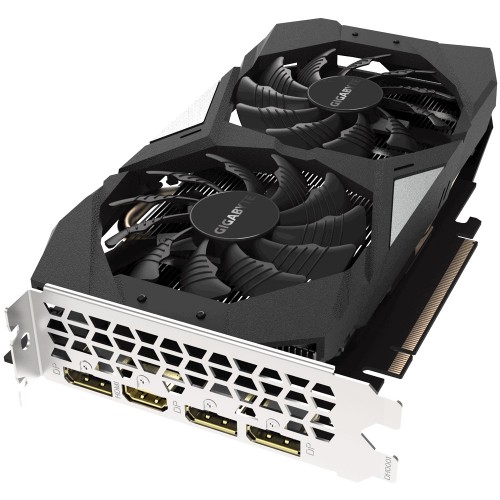

Display Port 1.4 *3
HDMI2.0b *1
HDCPYes
Power Specifications
Connectors8 Pin*1
Recommended PSU450W
Display Option
Multi Display4
Application Programming Interfaces
DirectX12
OpenGL
4.5
Physical Specifications
DimensionsL=225.65 W=122.02 H=40.5 mm
OthersPCB Form ATX
Warranty
Manufacturing Warranty02 years

Description

Gigabyte GeForce GTX 1660 Ti OC 6GB GDDR6 Graphics Card

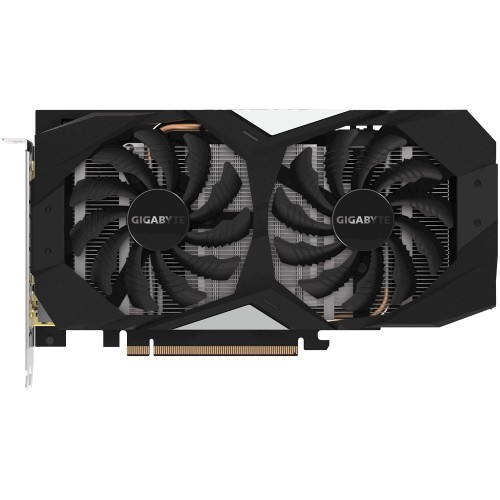

Gigaby Force GTX 1660 Ti Integrated with 6GB GDDR6 192-bit memory interface. WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, a composite copper heat pipe direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.The GIGABYTE patent “Alternate Spinning� is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

Questions (0)

Have question about this product? Get specific details about this product from expert.

textsms
There are no questions asked yet. Be the first one to ask a question.

Reviews (1)

Get specific details about this product from customers who own it.

5 out of 5 star star star star star
star star star star star

Good Graphics card for gaming and Editing

By Siam on 13 May 2019
