close| Price | 13,700৳ |
| Regular Price | 14,650৳ |
| Status | In Stock |
| Product Code | 50037 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.3cm x 19.3cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | 1 x M.2 connector | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 64GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| D-Sub (s) | 1x D-Sub | |
| USB (s) | Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) | |
| Supported Storage | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

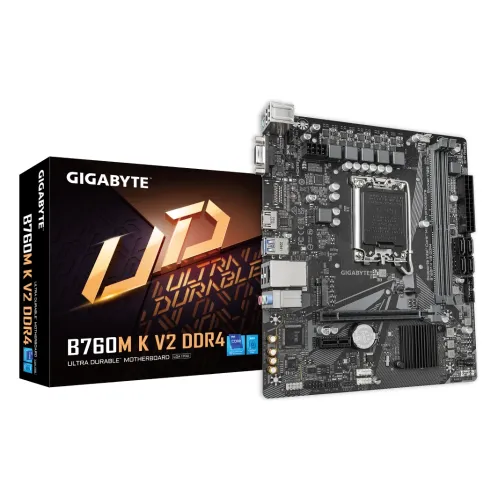

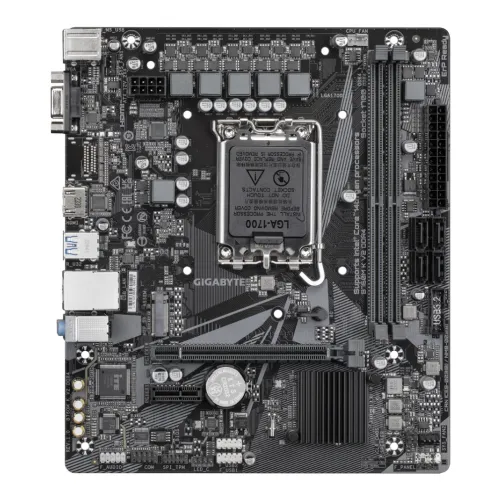

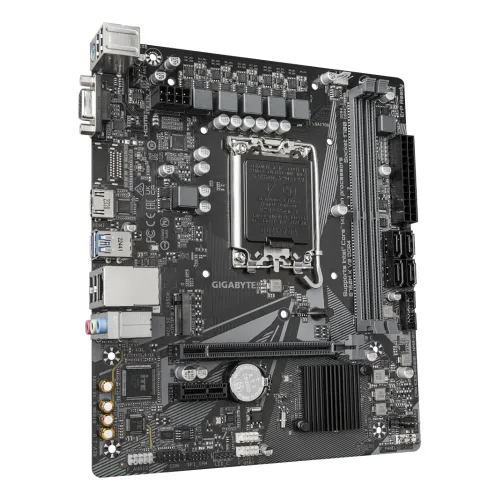

The GIGABYTE B760M K V2 DDR4 Motherboard is a powerful and reliable choice for building modern Intel-based systems. Designed with the LGA1700 socket, this Gigabyte Intel Motherboard supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, delivering stable performance for gaming, productivity, and everyday computing. Powered by the Intel B760 Express Chipset, the GIGABYTE B760M K V2 DDR4 Motherboard ensures efficient system management with AMI UEFI BIOS support. With dual DDR4 DIMM slots, it supports up to 64GB of high-speed memory, including XMP profiles for enhanced performance. Expansion options include a PCIe 4.0 x16 slot for graphics cards, a PCIe 3.0 x1 slot for add-on cards, one M.2 connector, and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support. Integrated Intel HD Graphics compatibility offers HDMI 2.0 and D-Sub outputs, supporting resolutions up to 4K@60Hz. Connectivity is robust with Realtek GbE LAN, USB 3.2 Gen 1, USB 2.0, and Realtek HD Audio CODEC supporting up to 7.1-channel sound. Compact in micro-ATX form factor, the Gigabyte B760M K V2 Motherboard also includes features like Q-Flash, GIGABYTE Control Center, tamper switch alarm, and RGB LED strip header for customization. For users seeking a balance of performance, expandability, and durability, the GIGABYTE B760M K V2 DDR4 Motherboard is the ideal Gigabyte Motherboard for next-generation builds.
In Bangladesh, you can get the original GIGABYTE B760M K V2 DDR4 mATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE B760M K V2 DDR4 mATX Motherboard comes with 3 years warranty.
The latest price of GIGABYTE B760M K V2 DDR4 Motherboard in Bangladesh is 13,700৳. You can buy the GIGABYTE B760M K V2 DDR4 Motherboard at best price from our website or visit any of our showrooms.
