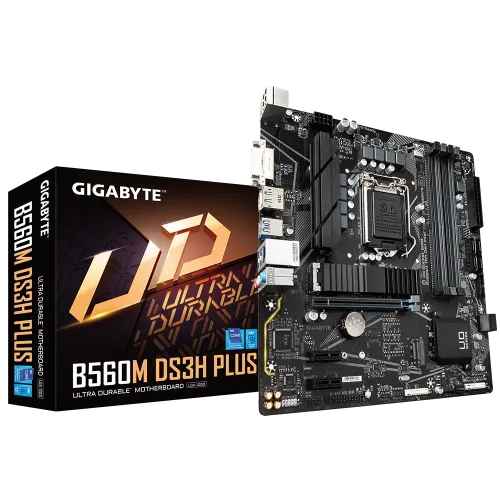

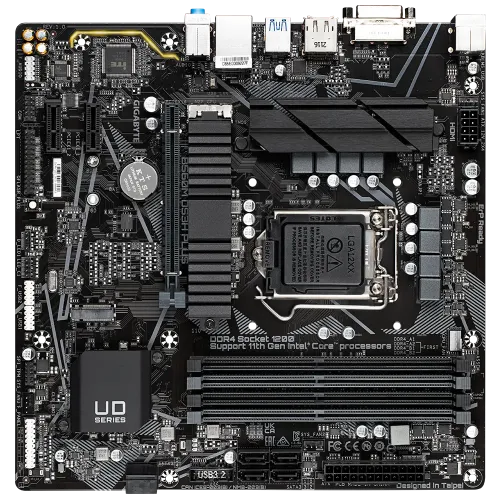

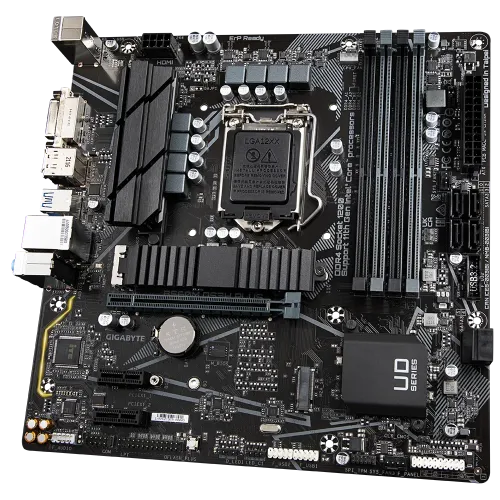

GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard
  • GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard
  • GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard
  • GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard
  • GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard
Product Page After Image | bKash Cashback

GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 26288
Brand GIGABYTE

Key Features

  • Model: B560M DS3H PLUS
  • Supported CPU: 11th/10th Gen Intel Core Processors (LGA1200)
  • Supported RAM: 4 x DIMM, up to 128GB DDR4 4600(O.C.)
  • Graphics Output: 1 x DVI-D, 1 x DisplayPort, 1 x HDMI
  • Features: 2x M.2 Slots, Realtek GbE LAN chip
  • View More Info
stars 100 Star Points
Out Of Stock

Specification

Basic Information
Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel Celeron G5xx5 family.
L3 cache varies with CPU
ChipsetIntel B560 Express Chipset
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
2 x PCI Express x1 slots
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Memory
TypeDDR4
Slots4 x DDR4 DIMM
Supported Memory11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Maximum MemoryUp to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI1 x HDMI port
Display Port (s)1 x DisplayPort
DVI-D (s)1 x DVI-D port

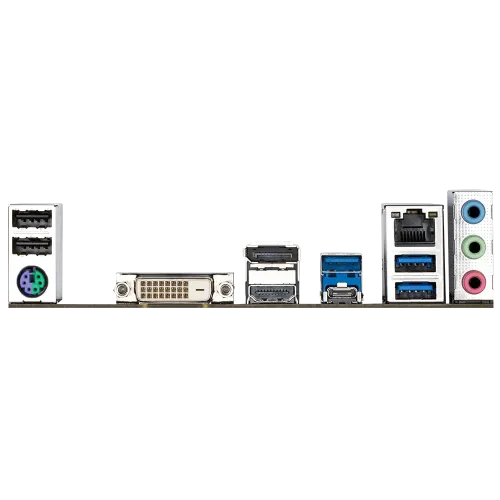

USB (s)1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel
LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
* Supported by 11th Generation processors only.
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
Audio3 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareNorton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty3 years

Description

GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard

GIGABYTE B560M DS3H PLUS Motherboard provides you with access to an LGA 1200 socket, allowing you to equip your rig with 10th and 11th Gen Intel processors. You can install up to 128GB of DDR4 RAM with four dual-channel DIMM slots and install up to two PCIe NVMe solid-state drives, enhancing the overall speed of your system suitable for gaming or running multiple applications simultaneously. Six SATA III ports allow you to install an array of compatible drives for primary or secondary storage systems. GIGABYTE B560M DS3H PLUS Motherboard comes with one PCIe 4.0 x16 and two PCIe 3.0 x1 slots, so you can install a wide range of graphics and utility cards to expand the flexibility of your system. USB 3.2 Gen 1 and USB 2.0 ports provide you with various connections for resource-demanding and low-powered peripherals, respectively. Additionally, a Gigabit Ethernet port is available, giving you quick access to wired networks to enjoy media, access the company intranet, and participate in competitive online battles.

Power Design

The GIGABYTE B560M DS3H PLUS uses a direct 6+2 Phase Digital VRM Controller with Low RDS(on) MOSFETs to stabilize electrical current when delivering high CPU frequencies. This power architecture ensures your system runs at the optimal load whether you are gaming or running multiple applications.

Performance

When paired with an 11th Gen Intel Core CPU, you can take advantage of enhanced speeds with PCIe 4.0 technology, enhancing your NVMe SSDs as well as your PCIe expansion slots, making GIGABYTE B560M DS3H PLUS the suitable option for running high-end components. XMP 4600+ technology enhances your memory, allowing it to run as fast as it can. High-end audio capacitors deliver high-fidelity audio for realistic sound, immersing you deeper into your media. Audio Noise Guard separates the board's sensitive audio components from noise pollution at the PCB level for clean sound. Additionally, Smart Fan 6 provides custom cooling with various controls, headers, and sensors that maintain system performance while staying cool and quiet.

Connectivity

GIGABYTE B560M DS3H PLUS Motherboard comes with an array of connectivity options, from your M.2 drives to the integrated USB 3.2 Gen 1 Type-C port located on the back plate of the motherboard which gives you up to 10 Gb/s transfer speeds suitable for resource-demanding peripherals such as storage drives and digital cameras. GIGABYTE Gaming LAN enhances your connection and prioritizes your system for optimal bandwidth allocation, giving you the edge in competitive online games.

RGB Fusion Lighting

You can customize GIGABYTE B560M DS3H PLUS with an array of lighting and effects that can be adjusted freely with free RGB Fusion 2.0 Software. Sync lighting across various peripherals along with internal components for a unique look. When in the middle of a game, you can use the free RGB Fusion App to make changes on the fly without stopping the action.

Ultra-Durable Design

GIGABYTE B560M DS3H PLUS Motherboard comes with solid-pin power connectors that provide larger contact areas for electricity, allowing for better power efficiency with less heat, giving the motherboard a longer lifespan. Anti-Sulfur design reduces chemical change and resistor shorts, prolonging the lifespan of your board. Q-Flash Plus allows you to update the BIOS without needing to install your CPU, memory, and graphics card, making updating easy.

Buy GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard from the best Motherboard Shop in Bangladesh

In Bangladesh, you can get the original GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE B560M DS3H PLUS Motherboard comes with 3 years warranty.

What is the price of GIGABYTE B560M DS3H PLUS Motherboard in Bangladesh?

The latest price of GIGABYTE B560M DS3H PLUS Motherboard in Bangladesh is 13,200৳. You can buy the GIGABYTE B560M DS3H PLUS Motherboard at best price from our website or visit any of our showrooms.
