close| Price | To be announced |
| Status | Up Coming |
| Product Code | 53796 |
| Brand | Walton |
| Display Details | ||
| Native Resolution | 4K Ultra HD 3840 × 2160 @60 Hz | |
| Panel Type | IPS | |
| Picture Response Time | 8ms Typical | |
| Refresh Frequency | 60Hz | |
| Pixel Pitch | 0.4935( H) x 0.4935 (V) | |
| Display Colors | 1.07 B | |
| Brightness (typical) | 400 cd/m² Typical | |
| Contrast Ratio | 1200:1 Typical | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Life Time | 50,000 hours Typical | |
| Others | Color Gamut: 72% NTSC Typical Camera : 48MP |
|
| Touch System | ||
| Touch Point | 20 Points Android |
|
| Touch Response Time | ≤10ms | |
| Others | View Area(mm): 1895.04 (H) x 1065.96 (V) Sensing Type: Infrared Touch Frame Surface Protection: 3.2mm Toughened Glass with Antiglare, Antifinger, Anti Biosis glass Touch Accuracy: ±1mm Response Time: ≤10ms |
|
| Operating System | ||
| System Version | Android 13 | |
| CPU | Chipset: Amlogic A311D2 Arm Architecture: Cortex A73+A53 Frequency: Max 2.2GHz for Cortex A73 and 2.0GHz for A53 Core: 4 x A73(Quad core A73)+4 x A53(Quad core A53) |
|
| GPU | MaliG52 MP8 |
|
| RAM | 8GB DDR4 |
|
| ROM | 128GB eMMC Flash | |
| Connectivity | ||
| HDMI | HDMI x2 | |
| VGA | VGA in x1 | |
| PC Audio In | Audio In × 1 | |
| Audio out | Audio Out × 1 | |
| LAN | LAN ×2 | |
| USB | USB 3.0 ×2 USB 2.0 ×1 Type-C × 1 |
|
| RS232 | RS232 ×1 | |
| Others | DP IN: x1 TOUCH: x3 SPDIF: x1 Operating Frequency: 2.4GHz/5GHz Wi-Fi : Wi-Fi 6 (802.11ax) Bluetooth: 5.3 Remote Control: x1 Touch pen: x2 3m power cable: x1 3m USB A-B cable : x1 3m HDMI cable: x1 User manual: x1 NFC Supported Array Quantity: 8-mic Pick up Area: 8m AEC: Supported AGC: Supported Speech enhancement: Supported Speaker Details: 16W x2 Speaker+ 15W Subwoofer Front Interfaces Type -C: x1 Public USB(USB3.0 TYPE A): x2 |
|
| Physical Specification | ||
| Active Screen Size | 86" | |
| Dimensions | 1961.8 x 105.6 x 1207.7mm (without Stand) | |
| Power | AC100V~240V, 50-60Hz OPS Power : DC 18V , 5A |
|
| Standby Power | < 0.5 W | |
| Power Requirements | 460W (Without OPS) | |
| Others | Interactive Stand x1 |
|
| Warranty | ||
| Warranty | 3 Years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue) | |

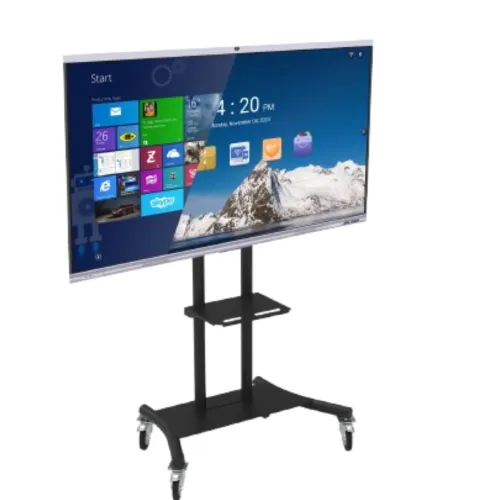

The CiNEXA WSIZ86 turns any meeting room or classroom into a modern collaboration space with its huge 86-inch 4K UHD screen. Its 3840 × 2160 resolution at 60Hz shows sharp text and fine detail. A built-in 48MP camera records video in rich detail, which makes remote calls feel closer and more personal. The eight-microphone array picks up voices from 8m away, while AEC, AGC, and speech enhancement remove echo and background noise. Infrared touch with 20 Android touch points lets a multiple write, draw, and annotate at the same time. Android 13 with 8GB DDR4 RAM and 128GB eMMC storage runs apps smoothly and keeps your lessons and files on the panel. Wi-Fi 6, Bluetooth 5.3, and NFC support link your devices with very little setup. The package includes a remote control, two touch pens, 3m power, USB A-B, and HDMI cables making this smart board ideal for schools, offices, and training centers across Bangladesh.
The CiNEXA WSIZ86 86-Inch Interactive Display uses an IPS panel with 1.07 billion colors and a 72% NTSC typical color gamut, which keeps photos and slides lifelike. A typical brightness of 400 cd/m² and a 1200:1 contrast ratio help content stand out under normal room lighting. With 178° horizontal and vertical viewing angles, people seated at the sides see the same clear picture. A typical 8ms response time keeps fast video smooth, and the 0.4935mm pixel pitch across the 1895.04 x 1065.96mm view area adds fine detail. The panel is rated for 50,000 hours typical life, so it serves daily lessons for years.
Built around an infrared touch frame, this 4K Interactive Touchscreen from CiNEXA WSIZ86 responds in 10ms or less, so digital ink follows your pen instantly. Touch accuracy of ±1mm lets you tap tiny icons and sketch neat lines. A 3.2mm toughened glass layer with anti-glare, anti-fingerprint, and anti-bacterial treatment keeps the surface clean and easy to view. Three touch ports link the panel to external computers, so you can control them with the same fingers.
Powered by the Amlogic A311D2 chipset, the CiNEXA WSIZ86 Android Interactive Panel pairs four Cortex A73 cores at up to 2.2GHz with four A53 cores at 2.0GHz for quick multitasking. The Mali-G52 MP8 GPU renders graphics and video without stutter. Two 16W speakers and a 15W subwoofer deliver rich sound that reaches the whole room. Two HDMI, VGA, DisplayPort, USB 3.0, USB 2.0, Type-C, two LAN, RS232, audio in and out, and SPDIF ports let you plug in almost any device. Dual-band 2.4GHz and 5GHz Wi-Fi keeps online classes steady, and the front Type-C and USB 3.0 ports speed up file transfers.
In Bangladesh, you can get original CiNEXA WSIZ86 86" 4K UHD Interactive Flat Panel Display From Star Tech. We have a large collection of latest Walton Interactive Flat Panel to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The CiNEXA WSIZ86 86" 4K UHD Interactive Flat Panel Display comes with 3 years warranty.
The latest price of CiNEXA WSIZ86 86" 4K Interactive Flat Panel in Bangladesh is 0৳. You can buy the CiNEXA WSIZ86 86" 4K Interactive Flat Panel at best price from our website or visit any of our showrooms.
