| Price | 42,000৳ |
| Regular Price | 46,200৳ |
| Status | In Stock |
| Product Code | 43197 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD X870 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOSc | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) |
|
| M.2 Socket | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a. VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |

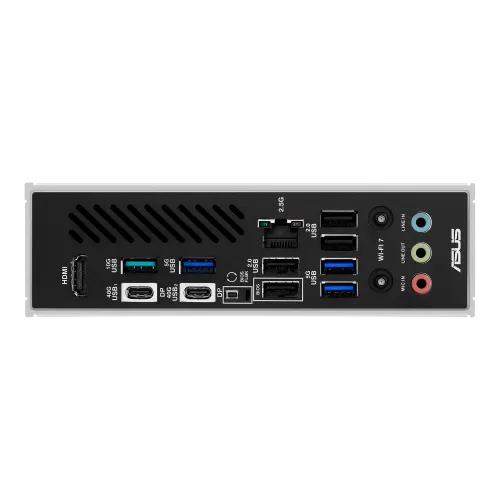

| USB (s) | Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. Specifications vary by CPU types. |
|
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types. |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
|
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

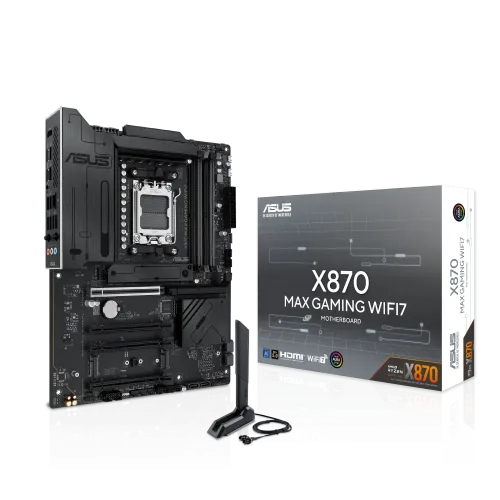

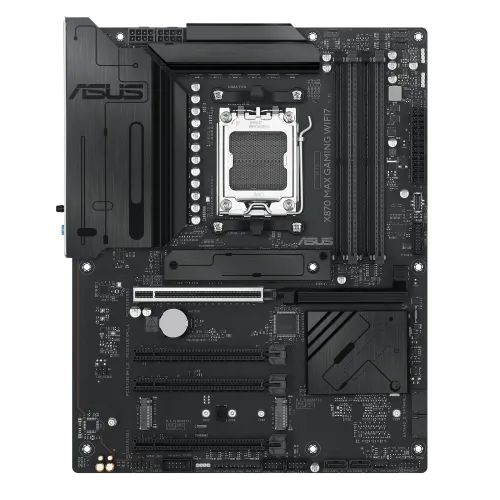

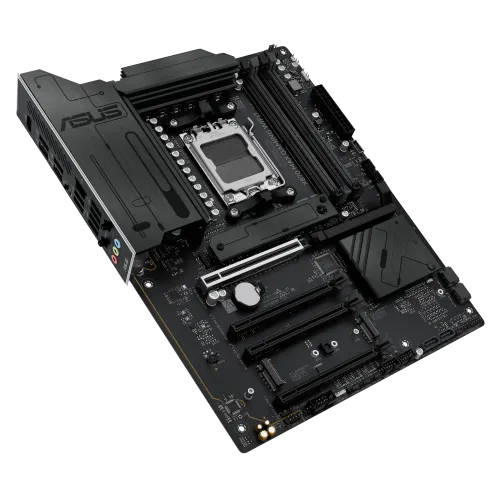

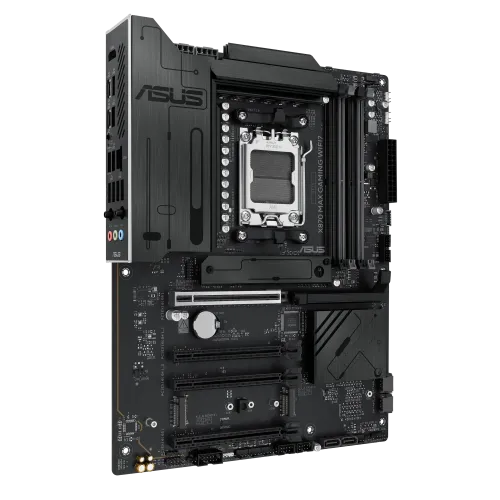

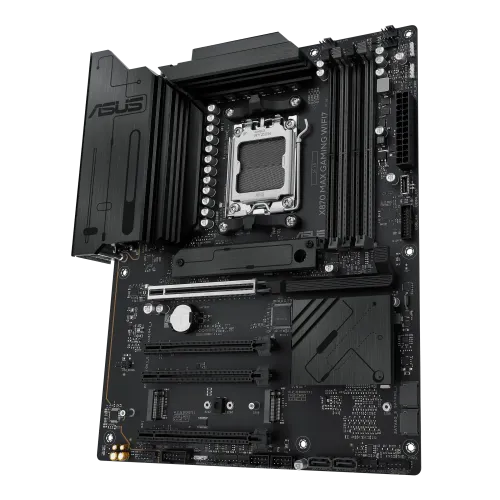

The Asus X870 MAX GAMING WIFI7 AM5 ATX Motherboard is a next-generation performance powerhouse designed for gamers and professionals who demand top-tier features and future-ready technology. Fully compatible with AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, this Asus X870 MAX GAMING WIFI7 ATX Motherboard supports the latest DDR5 memory up to 256GB, clocking speeds of 8000+ MT/s (OC) across four DIMM slots, and offers ECC/Non-ECC support along with AMD EXPO and ASUS AEMP profiles. Visual output is handled via one HDMI 2.1 port and two USB4 Type-C (40Gbps) display outputs, with support for 4K@60Hz visuals depending on the processor. Built on the AMD X870 chipset, the Asus X870 MAX GAMING WIFI7 Motherboard delivers unmatched connectivity with 1 x PCIe 5.0 x16 slot, multiple PCIe 4.0 and 3.0 slots, and three M.2 slots (PCIe 5.0 & 4.0) for ultra-fast NVMe SSDs. Storage options are complemented with four SATA 6Gb/s ports and RAID support (0/1/5/10 based on CPU), managed through AMD RAIDXpert2 Technology. Bandwidth-sharing configurations for USB4 and PCIe slots are BIOS-adjustable. Connectivity is future-focused, with a rich I/O including 2 x USB4 40Gbps Type-C ports, 10 rear USB ports, 7 front USB ports, and a Realtek 2.5Gb Ethernet port. The Asus X870 MAX GAMING WIFI7 also features Wi-Fi 6 for dual-band wireless performance and Bluetooth v5.2 for stable peripheral pairing. For immersive sound, the motherboard integrates Realtek 7.1 HD Surround Sound CODEC, with features like jack detection, multi-streaming, and 24-bit/192kHz playback, powered by premium capacitors and isolated audio PCB layers. This Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard comes equipped with internal I/O flexibility, including multiple 4-pin fan headers, ARGB Gen 2 headers, and extensive USB, TPM, S/PDIF, and COM headers. ASUS-exclusive design enhancements include Q-LED indicators, M.2 Q-Latch, PCIe Slot Q-Release, and pre-mounted I/O shield for easy DIY setups. Advanced cooling is ensured through VRM and M.2 heatsinks, along with AI-based thermal tuning via Fan Xpert 4. Durability is reinforced with ASUS 5X Protection III, DIGI+ VRM, SafeSlot, and stainless steel back I/O. Personalization is seamless with Aura Sync RGB, while bundled software like Armoury Crate, ASUS GlideX, TurboV Core, and trials of Norton 360 Deluxe and WinRAR enhance the overall package. The Asus X870 MAX GAMING WIFI7 ATX Motherboard delivers cutting-edge performance, smart design, and elite connectivity, making it the ideal choice for high-end AMD-based PC builds.
In Bangladesh, you can get original Asus X870 MAX GAMING WIFI7 AM5 ATX Motherboard From Star Tech. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Asus X870 MAX GAMING WIFI7 AM5 ATX Motherboard comes with 3 years of warranty.
The latest price of Asus X870 MAX GAMING WIFI7 Motherboard in Bangladesh is 42,000৳. You can buy the Asus X870 MAX GAMING WIFI7 Motherboard at best price from our website or visit any of our showrooms.
