ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard
  • ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard
  • ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard
  • ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard
  • ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard

ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard

Price 11,600৳
Regular Price 12,760৳
Status In Stock
Product Code 45808
Brand Asus

Key Features

  • Model: Pro Q570M-C/CSM
  • Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
  • Supported RAM: 4x DDR4, Max 128GB 3200(O.C.)
  • Graphics Output: 1x DisplayPort 1.4, 1x HDMI 2.0
  • Features: 1x M.2, Intel I219-LM 1Gb Ethernet
  • View More Info
stars 130 Star Points

Payment Options

Specification

Basic Information
Supported CPUIntel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Q570 Chipset
BIOS128+64 Mb Flash ROM
Form FactormATX Form Factor
AudioRealtek ALC897 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCIIntel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel 11th processors support PCIe 4.0 x16 mode
Intel 10th processors support PCIe 3.0 x16 mode
Intel Q570 Chipset
2 x PCIe 3.0 x1 slots
M.2 SocketIntel 11th & 10th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Q570 Chipset
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)
Memory
TypeDDR4
Slots4x DIMM
Supported MemoryDDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Optimem
10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
Maximum MemoryMax. 128GB
Graphics
GraphicsGraphics specifications may vary between CPU types.
Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz
Connector & Ports
HDMI1x HDMI
Display Port (s)2 x DisplayPort
USB (s)4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
LAN Port (s)1 x Intel I219-LM 1Gb Ethernet
Supported StorageIntel 11th & 10th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Q570 Chipset
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
AudioRealtek ALC897 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O PortsFan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 System Panel header

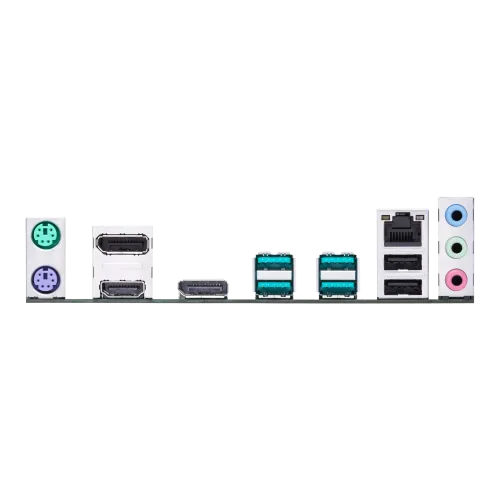

Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMITM
3 x Audio jacks
1 x Intel® I219-LM 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
TPM (Trusted Platform Module )TPM 2.0 IC onboard
Others
Special Features ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
Bundled SoftwareASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
Warranty Information
Manufacturing Warranty3 years

Description

ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard

The ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard is a professional-grade platform built for stability, performance, and long-term reliability. Designed for 11th and 10th Gen Intel Core, Pentium Gold, and Celeron processors, this ASUS Intel Motherboard offers robust compatibility through the LGA1200 socket and supports Intel Turbo Boost and Turbo Boost Max Technology 3.0 for enhanced processing power. With dual-channel DDR4 memory support up to 128GB and frequencies up to 3200MHz (OC), the ASUS Pro Q570M-C/CSM Motherboard ensures smooth multitasking and dependable system responsiveness for business or technical applications. Optimem technology improves signal integrity and stability, while PCIe 4.0 delivers next-level bandwidth for graphics and expansion cards. Storage options on the ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard include dual M.2 slots supporting PCIe 4.0/3.0 and six SATA 6Gb/s ports for SSDs and HDDs. The motherboard also supports Intel Optane Memory, RAID configurations, and high-speed data transfers for faster boot and load times. Connectivity is equally impressive, with four USB 3.2 Gen 2 ports, a USB 3.2 Gen 1 Type-C front header, multiple USB 2.0 headers, and Intel 1Gb Ethernet for reliable wired networking. Audio performance is powered by the Realtek ALC897 codec, offering 7.1-channel high-definition surround sound for immersive experiences. The ASUS Pro Q570M-C/CSM Motherboard is engineered with business reliability in mind, featuring moisture-resistant coating, overcurrent protection, and ASUS Self-Recovering BIOS for automatic system recovery. It includes an event log for detailed system tracking and a COM debug header for efficient troubleshooting. IT administrators benefit from ASUS Control Center Express (ACCE), enabling streamlined remote management and monitoring. With TPM 2.0, robust security, and 24/7 reliability, the ASUS Pro Q570M-C/CSM Motherboard stands out as a trusted choice for professionals seeking a durable, secure, and high-performance ASUS Intel Motherboard built to handle demanding business and industrial computing needs.

Buy ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard from Star Tech

In Bangladesh, you can get original ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASUS Pro Q570M-C/CSM LGA1200 mATX Motherboard comes with 3 years warranty.

What is the price of ASUS Pro Q570M-C/CSM Motherboard in Bangladesh?

The latest price of ASUS Pro Q570M-C/CSM Motherboard in Bangladesh is 11,600৳. You can buy the ASUS Pro Q570M-C/CSM Motherboard at best price from our website or visit any of our showrooms.
