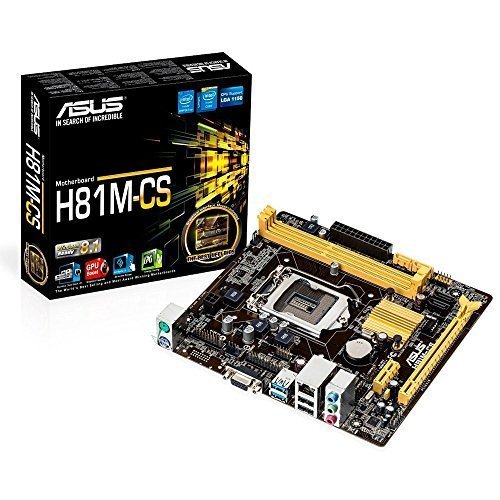

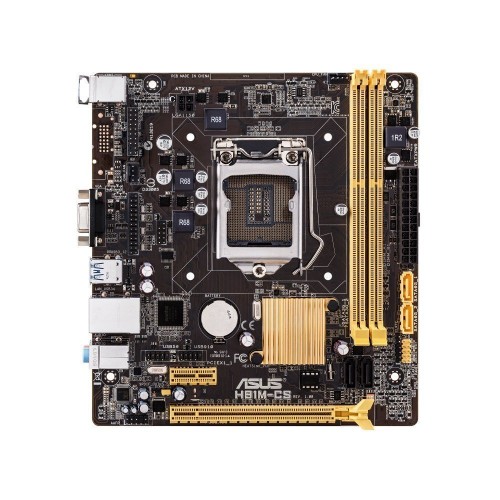

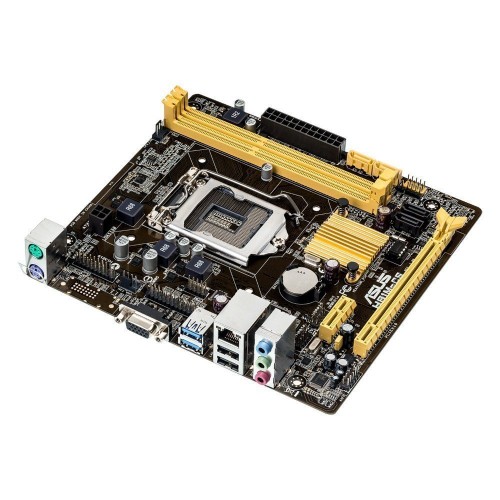

ASUS H81M-CS 4th Gen Intel Motherboard
  • ASUS H81M-CS 4th Gen Intel Motherboard
  • ASUS H81M-CS 4th Gen Intel Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

ASUS H81M-CS 4th Gen Intel Motherboard

Price To be announced
Status Discontinued
Product Code 14546
Brand Asus

Key Features

  • Model: H81M-CS
  • Intel Socket 1150 for 4th Generation Core i7/ i5/ i3/Pentium /Celeron Processors
  • Supports Intel 22 nm CPU, Intel H81
  • UEFI BIOS and EZ Mode
  • GPU Boost, CrashFree BIOS 3
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUIntel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
- The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel H81
BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form FactoruATX Form Factor
7.5 inch x 7.0 inch ( 19 cm x 17.7 cm )
AudioRealtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Expansion Slots
PCI1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
Memory
TypeDDR3
Slots2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supported MemorySupports Intel Extreme Memory Profile (XMP)
- Hyper DIMM support is subject to the physical characteristics of individual CPUs.
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
Graphics
GraphicsIntegrated Graphics Processor
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
Max Shared Memory1024 MB
Connector & Ports
D-Sub (s)1 x D-Sub
USB (s)2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
- 2 x USB 3.1 Gen 1 (blue)
- 2 x USB 2.0
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

LAN Port (s)Realtek 8111GR, 1 x Gigabit LAN Controller(s)
- 1 x LAN (RJ45) port(s)
Supported Storage2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
- 3 x Audio jack(s)
- 1 x Front panel audio connector(s) (AAFP)
Internal I/O Ports2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Chassis Intrusion connector(s)
TPM (Trusted Platform Module )1 x TPM header
Others
Special Features ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Disk Unlocker
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Warranty Information
Manufacturing Warranty03 Years Warranty

Description

ASUS H81M-CS 4th Gen Intel Motherboard

The new ASUS H81M-CS 4th Gen Intel Chipset Motherboard supports Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors, Intel 22 nm CPU, Intel Turbo Boost Technology 2.0 (The Intel Turbo Boost Technology 2.0 support depends on the CPU types.). In this motherboard, Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts by which you can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience. It is featured with 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture and support Intel Extreme Memory Profile (XMP). This motherboard comes with GPU Boost, it accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-wide upgrades for every use. In this motherboard, the ASUS Boot Setting provides better flexibility in customizing your PC’s startup process and you can shorten system boot-up time to 2-seconds for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Here, The ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, that allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This ASUS H81M-CS 4th Gen Intel Motherboard has 03 years warranty.

What is the price of ASUS H81M-CS 4th Gen Intel Motherboard in Bangladesh?

The latest price of ASUS H81M-CS 4th Gen Intel Motherboard in Bangladesh is 7,000৳. You can buy the ASUS H81M-CS 4th Gen Intel Motherboard at best price from our website or visit any of our showrooms.
