closePrice | To be announced |
Status | Out Of Stock |
Product Code | 28550 |
Brand | ARKTEK |
Basic Information | ||
Supported CPU | Support Intel Core i7/i5/i3/Pentium/ Celeron processors in the LGA1150 package. Support Intel 4th generation multi-core processors | |
Chipset | Intel H81 Chipset | |
BIOS | UEFI BIOS | |
Form Factor | Micro-ATX (19 X 17 cm) | |
Audio | Onboard Realtek 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack | |
Expansion Slots | ||
PCI | 1 x PCI Express x16 slot | |
Memory | ||
Type | DDR3 | |
Slots | 2 x Memory Slots | |
Supported Memory | 1066/1333/1600MHz, Supports non-ECC, un-buffered memory | |
Maximum Memory | Max. up to 8GB each | |
Graphics | ||
Graphics | Integrated Graphics Processor | |
Connector & Ports | ||
HDMI | 1 x HDMI port | |
VGA (s) | 1 x VGA port | |
USB (s) | 4 x USB 2.0 port 2 x USB 3.0 port |
|
LAN Port (s) | Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps | |
Supported Storage | 3 x SATA, 1xM.2 supports NVME+NGFF | |
Audio | 3 x Audio jack | |
Warranty Information | ||
Manufacturing Warranty | 2 Year |

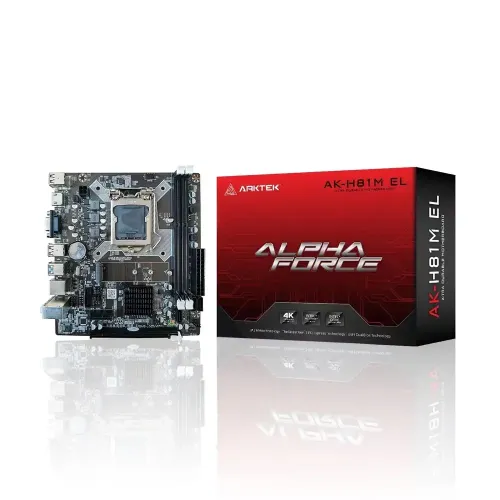

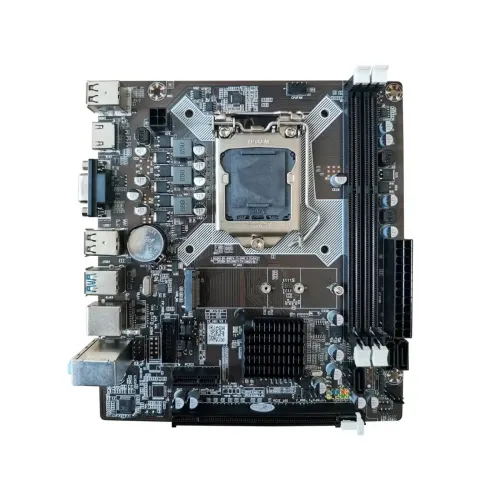

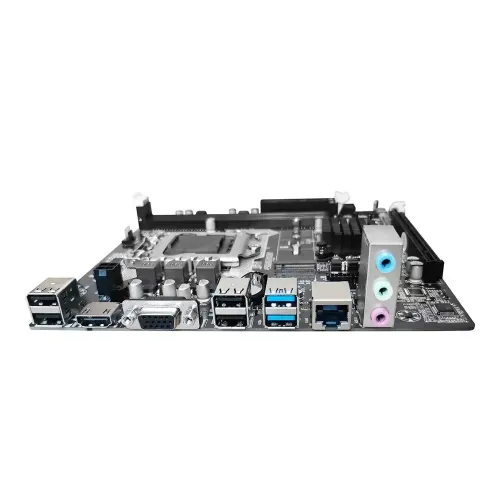

The ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard is designed to support Intel Core i7, i5, i3, Pentium, and Celeron processors of the LGA1150 Intel 4th generation multi-core processors. It utilizes the Intel H81 chipset and features integrated graphics processing. The motherboard supports dual-channel DDR3 memory and has two slots with a maximum capacity of 8GB per slot. It offers LAN connectivity with the onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps LAN and includes a Realtek 662 6-channel HD Audio Codec for audio functions. Storage options include three SATA ports and one M.2 slot supporting NVME and NGFF storage devices. The back panel I/O ports provide various connections, including VGA, HDMI, USB, LAN, and audio jacks. Expansion slots include one PCI Express x16 slot, and the motherboard features UEFI BIOS for system configuration. With its micro-ATX form factor and secure mounting holes, the AK-H81M EL is suitable for compact PC builds.
In Bangladesh, you can get original ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard From Star Tech. We have a large collection of latest ARKTEK Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ARKTEK AK-H81M EL Motherboard comes with 2 years warranty.
The latest price of ARKTEK AK-H81M EL Motherboard in Bangladesh is 5,100৳. You can buy the ARKTEK AK-H81M EL Motherboard at best price from our website or visit any of our showrooms.
