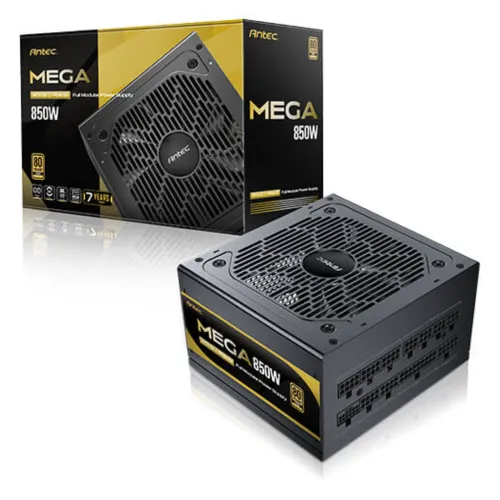

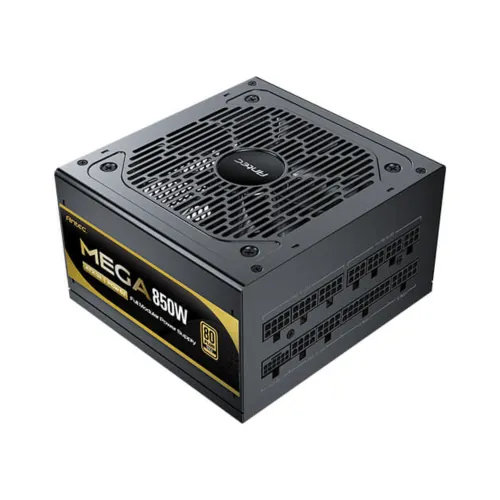

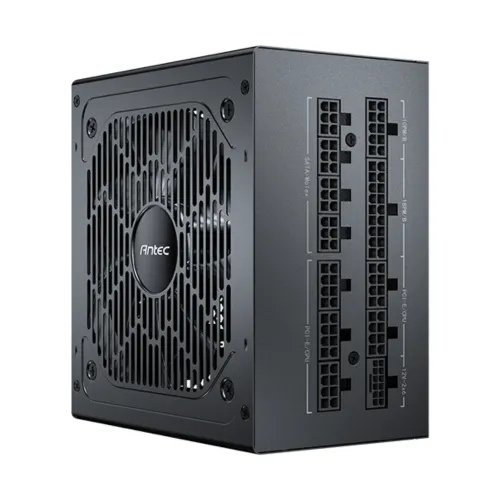

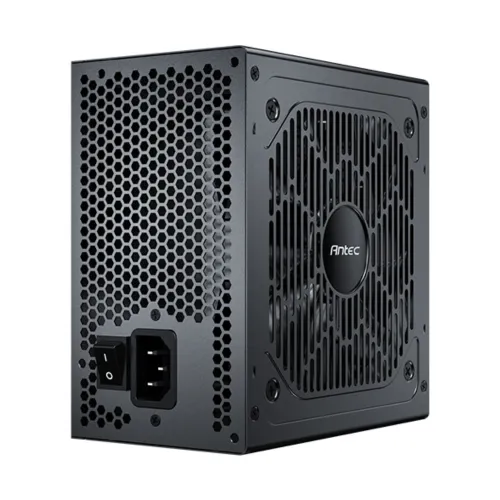

Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 PCIE 5.1 Full Modular Power Supply

Price To be announced
Status Up Coming
Product Code 53055
Brand Antec

Key Features

  • Model: MEGA850 Gold
  • Output Capacity: 850W, Full Modular
  • Certification: 80 Plus Gol, 120mm HDB Silent Fan
  • ATX 3.1 & PCIe 5.1 Compatible, Active PFC
  • Protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
  • View More Info
Up Coming

Specification

Key Features
Efficiency (Approx.)Up to 92% efficient
Certification80 Plus Gold
Fan Size120mm HDB Silent Fan
Lighting Effect N/A
Others Active PFC
Power Good Signal: 100-150ms
Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Regulatory: CB/CE
ATX 3.1 & PCIe 5.1 Compatible
PhaseWave Design
Input
Voltage100V-240V
Frequency Range50Hz-60Hz
Current10A-5A
Output
Modular TypeFull Modular
Total Power850W
Connector
Main Power1 x 24(20+4)pin MB
CPU2 x 8(4+4)pin CPU
PCI-E1 x 16(12+4)pin PCIE 5.1 12V-2x6
3 x 8(6+2) Pin PCI-E
SATA7 x SATA
Molex2 x Molex
Warranty Information
Manufacturing Warranty7 Years

Description

Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 PCIE 5.1 Full Modular Power Supply

The Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 PCIE 5.1 Full Modular Power Supply delivers 850W output for modern desktop systems. This 850W PSU follows the ATX 12V 3.1 standard for current PC hardware requirements. Its 80 Plus Gold certification supports efficient power delivery during demanding workloads. The unit operates with 100V-240V input voltage and a 50Hz-60Hz input frequency range. Active PFC helps support stable electrical performance across compatible power sources. The 140 by 150 by 86mm dimensions support installation in compatible ATX PC cases. Its Full Modular PSU design lets users connect only the required cables. This can help reduce unnecessary cable clutter inside the computer chassis. The Antec MEGA850 Gold power supply includes a 120mm HDB Silent Fan for controlled cooling during operation. It supports operating temperatures from 0°C to 40°C for standard computing environments. The Antec MEGA850 Gold 850W Gold PSU includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO protections. These safeguards address several electrical and operating conditions during system use. Connectivity includes one 24-pin motherboard connector for compatible ATX systems. A PCIe 5.1 12V-2x6 connector supports newer graphics card power requirements. Two 8-pin CPU connectors support compatible processor power configurations. Three 8-pin PCI-E connectors provide additional graphics and expansion connectivity. Seven SATA connectors support storage drives and other compatible peripherals. Two Molex connectors provide power for supported legacy accessories. CB and CE regulatory compliance further identifies its electrical certification status. With its ATX 3.1 design, Gold efficiency rating, and modern connectors, the Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 PCIE 5.1 Full Modular Power Supply suits performance-focused desktop builds.

Buy Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 Power Supply from Star Tech

In Bangladesh, you can get original Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 Power Supply From Star Tech. We have a large collection of latest Antec Power Supply to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 Power Supply comes with 7 years warranty.

What is the price of Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 Power Supply in Bangladesh?

The latest price of Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 Power Supply in Bangladesh is 0৳. You can buy the Antec MEGA850 Gold 850W 80+ Gold ATX 3.1 Power Supply at best price from our website or visit any of our showrooms.
