close| Price | 715,000৳ |
| Regular Price | 795,000৳ |
| Status | In Stock |
| Product Code | 53880 |
| Brand | Solis |
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |
| Others | Display: 7.0" LCD display & Bluetooth + APP PV connection: MC4 Quick connection plug Battery connection: Lever terminal AC connection: Terminal Block Communication interface: CAN, RS485, Ethernet, |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 50 kW Rated grid voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V Rated grid output current: 76 A / 72.2 A Output AC (Back-up) Rated output power: 50 kW Back-up switch time: < 10 ms Rated output voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Max. AC passthrough current: 152 A / 144.4 A Rated input voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
|
| DC Input | Supported Battery type: Li-ion Battery voltage range: 150 - 800 V Max. charge / discharge current: 70 A × 2 No. of battery inputs: 2 Communication: CAN / RS485 |
|
| Solar Input | Input DC (PV side) Recommended max. PV array size: 100 kW Max. usable PV input power: 96 kW Max. input voltage: 1000 V Rated voltage: 600 V Start-up voltage: 180 V MPPT voltage range: 150 - 850 V Max. input current: 4 × 40 A |
|
| Generator Input | Input AC (Generator side) Max. input power: 50 kW Rated input current: 76 A / 72.2 A Rated input voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 530 × 880 × 290 mm | |
| Weight | Approx. 73 kg |
|
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
The Solis S6-EH3P50K-H 50kW Three Phase Hybrid Solar Inverter delivers efficient energy conversion for commercial and industrial solar installations. This Hybrid Solar Inverter supports solar generation, battery storage, and grid connectivity for improved energy management. With a maximum efficiency of 97.8%, it helps optimize solar power utilization. Its three-phase design supports rated AC output power of 50 kW for demanding energy requirements.
Designed for high-capacity installations, the Solis S6-EH3P50K-H 50kW Hybrid Inverter supports a recommended maximum PV array size of 100 kW and usable PV input power of 96 kW. This High Voltage Solar Inverter operates with a maximum PV input voltage of 1000 V DC and an MPPT voltage range of 150–850 V. It supports lithium-ion batteries with a voltage range of 150–800 V and two battery inputs for effective storage integration.
For reliable backup performance, the Solis S6-EH3P50K-H 3 Phase Solar Inverter provides 50 kW backup output with a switching time below 10 milliseconds. It supports grid and generator inputs, offering additional options for managing power supply. The inverter includes IP66 ingress protection, anti-islanding protection, DC reverse polarity protection, and over-current protection. Its operating temperature range of -25°C to +60°C supports installations across varied environmental conditions.

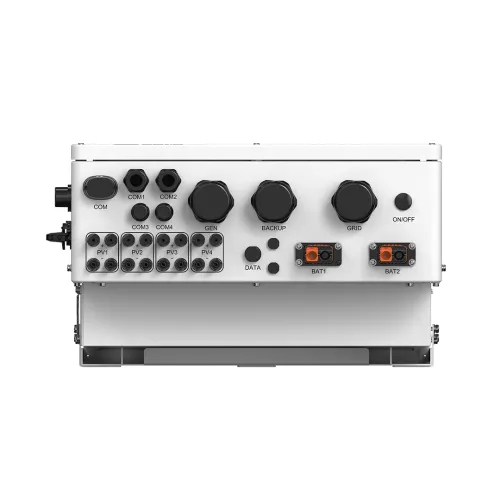

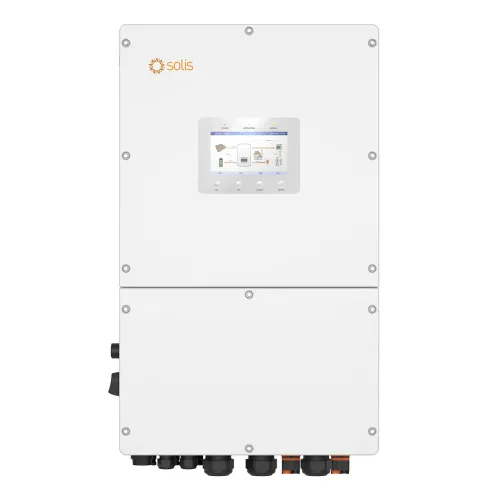

The Solis S6-EH3P50K-H Hybrid Solar Inverter features a 7-inch LCD display, Bluetooth connectivity, and app-based monitoring for convenient system supervision. Communication interfaces include CAN, RS485, and Ethernet for integration with compatible equipment. MC4 connectors simplify PV connections, while lever terminals support battery wiring. Measuring 530 × 880 × 290 mm and weighing approximately 73 kg, this 50kW Hybrid Inverter suits commercial solar projects requiring high-voltage battery integration, backup functionality, and three-phase power management.
In Bangladesh, you can get original Solis S6-EH3P50K-H 50kW Hybrid Solar Inverter From Star Tech. We have a large collection of latest Inverter to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Solis S6-EH3P50K-H 50kW Hybrid Solar Inverter comes with 5 Year warranty.
The latest price of Solis S6-EH3P50K-H 50kW Hybrid Solar Inverter in Bangladesh is 715,000৳. You can buy the Solis S6-EH3P50K-H 50kW Hybrid Solar Inverter at best price from our website or visit any of our showrooms.
