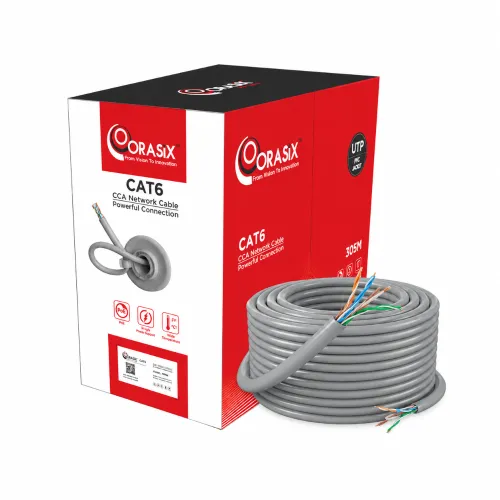

Orasix OS-SLN6M305-ING-CCA Cat6 305 Meter Indoor Network Cable Grey

Orasix OS-SLN6M305-ING-CCA Cat6 305M Network Cable

The Orasix OS-SLN6M305-ING-CCA Cat6 305 Meter Network Cable features a 23AWG CCA conductor with 10% copper content. The conductor diameter is 0.56 ± 0.01 mm. HDPE insulation provides a 1.02 ± 0.05 mm diameter and 0.55 ± 0.05 mm thickness. A separator and rip-cord support the internal cable structure. The PVC outer sheath measures 6.4 ± 0.50 mm.

Signal Performance

For network connectivity, the Orasix Cat6 305 Meter Indoor Network Cable supports frequencies from 1.0 to 250.0 MHz. It offers 100 ± 15 Ω impedance and delay skew below 45 ns per 100 meters. DC resistance stays below 120 Ω per 100 meters. DC conductor resistance unbalance remains below 4.0%. This Cat6 Cable suits Ethernet Cable and broadband network installations.

Sheath Properties

The Orasix Cat6 305 Meter Indoor Network Cable delivers specified tensile strength and elongation before and after aging. Before aging, tensile strength exceeds 13.5 MPa, with elongation reaching at least 150%. After aging, tensile strength remains at least 12.5 MPa, while elongation reaches 125%. Cold-bend testing at -20°C produces no visible cracks.

Length and Operating Range

The Orasix Cat6 305 Meter Indoor Network Cable provides 305 ± 1.5 meters of cable length. It supports temperatures from -10°C to 60°C and an operating voltage of 57 V. This UTP Cable works for indoor Ethernet, broadband, and Wifi Cable installations.

Buy Orasix OS-SLN6M305-ING-CCA Cat6 305M Network Cable From Star Tech

In Bangladesh, you can get the original Orasix OS-SLN6M305-ING-CCA Cat6 305M Network Cable From Star Tech. We have a large collection of the latest UTP cable to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Orasix OS-SLN6M305-ING-CCA Cat6 305M Network Cable comes no Warranty.
