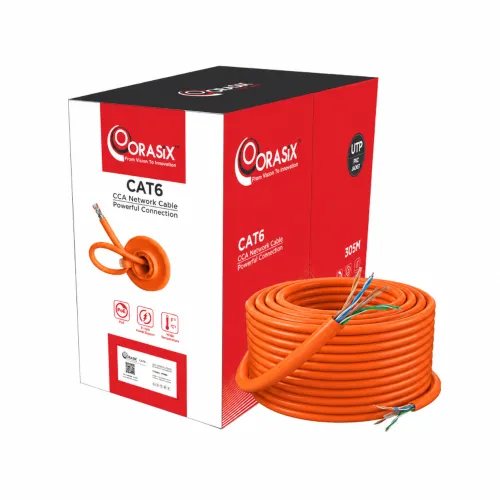

Orasix OS-SLN6M305-INO-CCA Cat6 305 Meter Indoor Network Cable Orange

Orasix OS-SLN6M305-INO-CCA Cat6 305M Network Cable

The Orasix OS-SLN6M305-INO-CCA Cat6 305 Meter Indoor Network Cable uses a 23AWG CCA conductor with 10% copper content. The conductor diameter measures 0.56 ± 0.01 mm. HDPE insulation surrounds each conductor with a 1.02 ± 0.05 mm diameter. A separator and rip-cord support the cable's internal structure. This Cat6 Cable also features a 6.4 ± 0.50 mm PVC sheath for indoor network installations.

For network connectivity, this Orasix Cat6 305 Meter Indoor Network Cable supports frequencies from 1.0 to 250.0 MHz. Its impedance is 100 ± 15 Ω, while delay skew remains below 45 ns per 100 meters. DC resistance stays below 120 Ω per 100 meters. DC conductor resistance unbalance remains below 4.0%. These specifications make it suitable for structured Ethernet Cable installations and broadband connections.

The Orasix Cat6 305 Meter Indoor Network Cable provides specified physical properties before and after aging. Before aging, tensile strength exceeds 13.5 MPa, with elongation reaching at least 150%. After aging at 100°C for 24 hours across 10 days, tensile strength remains at least 12.5 MPa. Elongation remains at least 125%. Cold-bend testing at -20°C shows no visible cracks at eight times cable diameter.

Length and Operating Range

Designed for extended installations, this Orasix Cat6 305 Meter Indoor Network Cable provides 305 ± 1.5 meters of cable. It supports ambient temperatures from -10°C to 60°C and an operating voltage of 57 V. The package measures 410 × 410 × 240 mm and weighs 10.5 ± 0.5 kg. This UTP Cable suits indoor Ethernet networks, broadband cabling, and Wifi Cable requirements.

Buy Orasix OS-SLN6M305-INO-CCA Cat6 305M Network Cable From Star Tech

In Bangladesh, you can get the original Orasix OS-SLN6M305-INO-CCA Cat6 305M Network Cable From Star Tech. We have a large collection of the latest UTP cable to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Orasix OS-SLN6M305-INO-CCA Cat6 305M Network Cable comes no Warranty.
