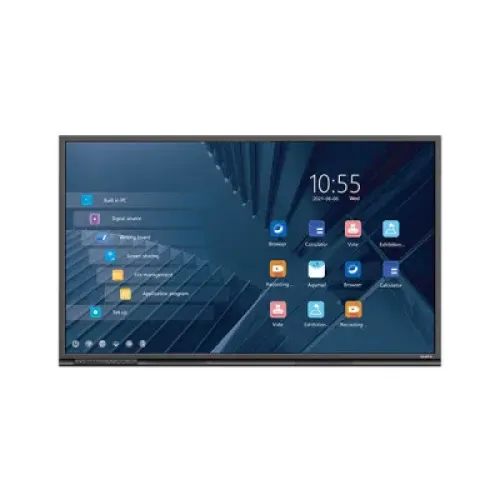

Newline S Series 86-inch 4K Interactive Flat Panel Display

Newline S Series 86-inch 4K Interactive Flat Panel Display

Price 440,000৳
Regular Price 462,000৳
Status In Stock
Product Code 43509
Brand Newline

Key Features

  • MPN: TT-8622S
  • Model: S Series 86-inch
  • Resolution: 4K UHD (3840 x 2160), 86" IR Multi-Touch,
  • RAM: 4GB DDR4, Internal Storage: 32GB, TF Card: 64GB
  • 20-Point Touch System, Android 11, 2x20W Speaker
  • Built-in Android, Anti-Glare + Anti-Fingerprint + Tempered Glass
  • View More Info

Payment Options

Specification

Display Details
Display Format Native Resolution4K (3840*2160)
Aspect Ratio16:9
Picture Response Time4ms
Display Colors10 bits
Brightness (typical)500cd/m2
Contrast Ratio15000:1
Viewing Angle178°
Life Time50,000 hours
OthersBuild-in Android, Anti-Glare + Anti-Fingerprint + Tempered Glass
Max Power Output: 2x20 WattsStorage Temperature/Humidity: -20~60°C 0~90%RH (non-condensing)
Working Temperature/Humidity: 0~40°C 20~80%RH (non-condensing)
Touch System
Touch Point20 point touch
Surface HardnessZero-Bonding
OthersTouch Sensor: Advanced IR
Touch Screen Writing Tools: Nano Pen (>2mm width) included or Finger
Positioning Accuracy: ±1mm
Transmission Range: 5M
Transparency: >88%
Glass thickness: 4mm
Operating System
System VersionAndroid Version: 11
CPUA55*4
GPUMali G52MP2
RAM4GB DDr4
ROM32GB
Connectivity
HDMIFront:
HDMI IN (2.0) ×1

Rear:
HDMI IN (2.0) ×2
HDMI OUT (2.0) ×1
VGAVGA IN x 1
PC Audio InAudio 3.5mm x 1
Audio outAudio 3.5mm x 1
LANRJ45 IN ×1

RJ45 OUT ×1
USBFront:
Touch USB (USB 2.0 Type-B) ×1
USB 3.0 (Type-A Public) ×2
USB Type-C PD (65W) ×1

Rear:
Touch USB (USB 2.0 Type-B) ×1
USB 2.0 (Type-A Android) ×1
USB 2.0 (Type-A Public) ×2
USB Type-C (for camera, USB 2.0) ×1
RS232RS232 x 1
TF CARDYes
OthersDisplayPort IN (1.2) ×1, Wi-Fi Module Slot ×1, Bluetooth V 5.2
Physical Specification
Active Screen Size86 inch
PowerWorking Voltage: AC 100 - 240V 5.0A 50/60Hz
Standby Power Standby Mode <0.5W
Power RequirementsPower Consumption: ≤500W
OthersSelf-shutdown: Self-shutdown during abnormal temperature
Warranty
Warranty3 years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue)

Description

Newline S Series 86-inch 4K Interactive Flat Panel Display

The Newline S Series TT-8622S is a premium 86-inch 4K UHD interactive flat panel display designed for education and meeting rooms. It features a large DLED screen with 3840×2160 resolution, offering sharp visuals and vibrant colors. The display supports 10-bit color depth, 500cd/m² brightness, and a 15000:1 contrast ratio, ensuring clear images in any lighting condition. With a 178° wide viewing angle, everyone in the room gets a perfect view. This Newline S Series 86-inch interactive display uses zero-bonding technology and advanced IR touch sensors for smooth and accurate touch response. It supports up to 20 touch points with ±1mm precision and 4ms response time, making writing and drawing easy with a Nano Pen or finger. The anti-glare, anti-fingerprint, and tempered glass surface adds durability and comfort. Powered by Android 11, the Newline S Series 86-inch Interactive Board includes 4GB DDR4 RAM and 64GB total memory. It comes with built-in apps like Whiteboard, Chromium, Eshare Pro, and Aqua Mail. Users can cast wirelessly from up to 9 devices, use split-screen and picture-in-picture modes, and access tools like vote, message, and screen recorder. Connectivity is seamless with Wi-Fi 6, Bluetooth 5.2, and multiple ports including HDMI 2.0, USB Type-C PD 65W, DisplayPort, OPS slot, and RJ45 LAN. The display also supports OTA firmware updates, smart eye protection, and a blue light filter to reduce eye strain. The Newline S Series 86-inch 4K Interactive Flat Panel includes dual 20W speakers for clear audio and supports self-shutdown during abnormal temperatures for safety. It comes with essential accessories like a remote controller, an HDMI cable, a wall mount, and a stylus. Ideal for smart classrooms, corporate boardrooms, and collaborative spaces, the Newline TT-8622S interactive panel combines high performance, user comfort, and advanced features to deliver a powerful and engaging experience.

Buy Newline S Series 86-inch 4K Interactive Flat Panel Display from Star Tech

In Bangladesh, you can get original Newline S Series 86-inch 4K Interactive Flat Panel Display From Star Tech. We have a large collection of latest Newline Interactive Flat Panel Display to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Newline S Series 86-inch 4K Interactive Flat Panel Display comes with 3 years full warranty.

What is the price of Newline S Series 86-inch 4K Interactive Flat Panel in Bangladesh?

The latest price of Newline S Series 86-inch 4K Interactive Flat Panel in Bangladesh is 440,000৳. You can buy the Newline S Series 86-inch 4K Interactive Flat Panel at best price from our website or visit any of our showrooms.
