| Price | 30,500৳ |
| Regular Price | 33,550৳ |
| Status | In Stock |
| Product Code | 45805 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|

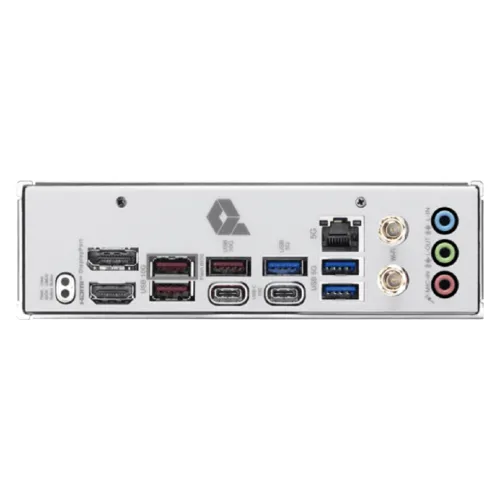

| Connector & Ports | ||
| HDMI | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz |
|
| Display Port (s) | 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| USB (s) | 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126 5G LAN | |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

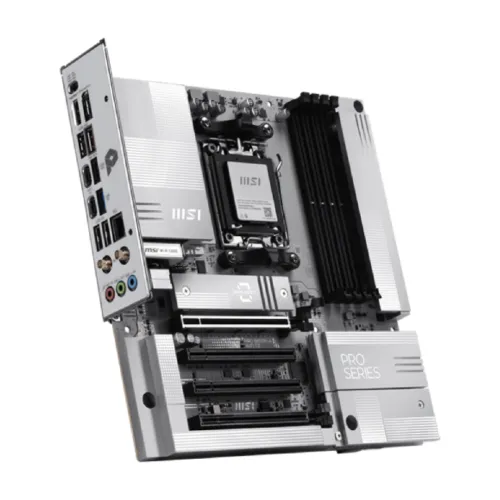

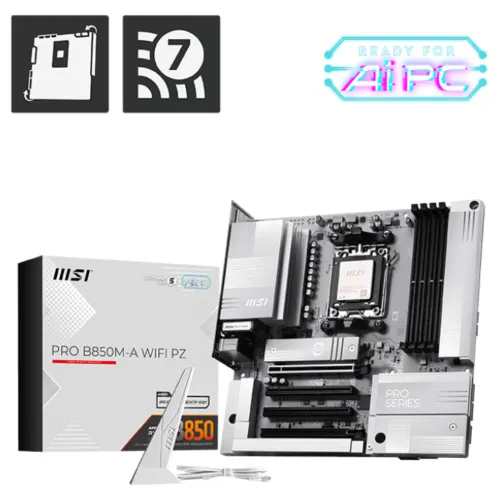

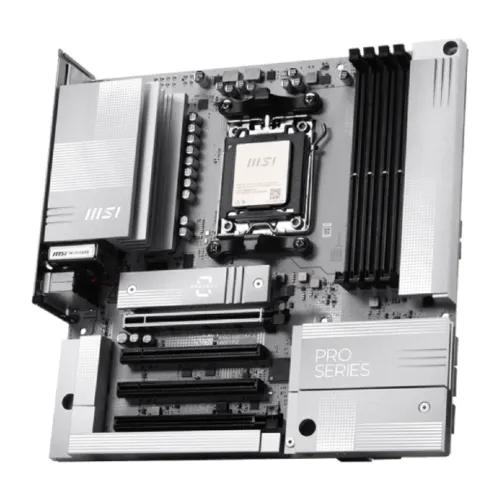

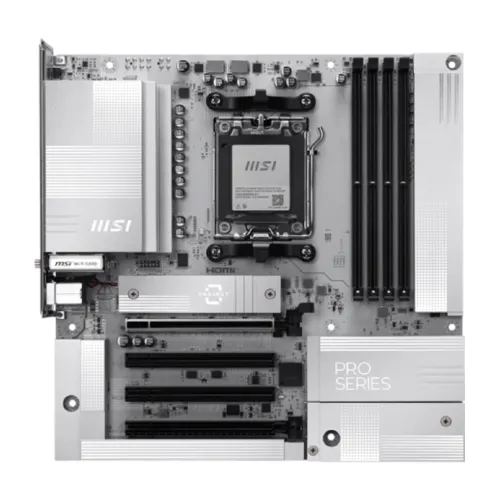

The MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard is built to deliver outstanding reliability, speed, and performance for modern PC builders and gaming enthusiasts. Supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this MSI AM5 Motherboard offers exceptional power efficiency and overclocking potential through its robust Direct 8+2+1 Power System with 60A SPS and 8+4-pin CPU connectors. Engineered with a 6-layer PCB made from 2oz thickened copper and server-grade materials, the MSI PRO B850M-A WIFI PZ Motherboard ensures stable power delivery and thermal performance under heavy workloads. It supports dual-channel DDR5 memory with speeds up to 8200+ MT/s (OC), enabling lightning-fast data processing and multitasking capabilities. The Frozr Guard thermal design features extended heatsinks, 7W/mK MOSFET thermal pads, choke thermal pads, and an M.2 Shield Frozr to maintain consistent cooling for high-performance components. The MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard also brings cutting-edge connectivity with PCIe 5.0 support and Lightning Gen 5 x4 M.2 slots, providing ultra-fast storage and expansion options for gamers and professionals. It includes Realtek 8126 5G LAN and the latest Wi-Fi 7 technology for secure, high-speed networking, making it ideal for gaming, content creation, and productivity. With user-friendly EZ DIY features such as EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna setup, building with this MSI Motherboard is straightforward and efficient. Audio Boost technology delivers immersive studio-grade sound, while multiple USB 10Gbps Type-C and Type-A ports offer versatile connectivity. Compact yet powerful, the MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard embodies durability and innovation with its military-grade components, RGB support, and Windows 11 compatibility. For anyone seeking a dependable MSI BTF Motherboard that blends performance, efficiency, and future-ready technology, the MSI PRO B850M-A WIFI PZ Motherboard stands as an exceptional choice for next-gen PC builds.
In Bangladesh, you can get original MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO B850M-A WIFI PZ AM5 mATX Motherboard comes with 3 years warranty.
The latest price of MSI PRO B850M-A WIFI PZ Motherboard in Bangladesh is 30,500৳. You can buy the MSI PRO B850M-A WIFI PZ Motherboard at best price from our website or visit any of our showrooms.
