| Price | 28,500৳ |
| Regular Price | 31,020৳ |
| Status | In Stock |
| Product Code | 46170 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |

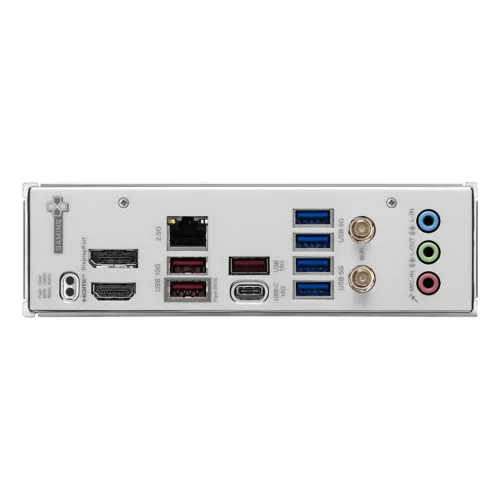

| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8125D 2.5G LAN | |
| Wireless Communication module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
The MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard is designed for PC enthusiasts and gamers who require dependability, speed, and power. This MSI B850 motherboard, which is made to handle AMD Ryzen 9000, 8000, and 7000 Series desktop processors, offers exceptional performance with dual-channel DDR5 memory support up to 8200+ MT/s (OC). The MSI B850 Motherboard, which is constructed on a sturdy 6-layer 2 ounce copper PCB, has a 12+2+1 Duet Rail Power System with dual 8-pin CPU connectors, Core Boost, and Memory Boost technologies for increased stability. In order to maintain temperature management throughout longer gaming sessions, the MSI AM5 Motherboard uses the Frozr Guard design, which includes extended heatsinks, 7W/mK MOSFET thermal pads, choke pads, and an EZ M.2 Shield Frozr II. The MSI B850 GAMING PLUS WIFI6E Motherboard provides high-speed connectivity, including 2.5G LAN and Wi-Fi 6E for safe and fast networking. Gamers will like the PCIe 4.0 slots, Lightning Gen 5 x4 M.2 compatibility, and front USB Type-C connection for fast data transfers. The storage options include two M.2 slots (PCIe 5.0 and PCIe 4.0) and four SATA 6G ports with RAID 0, 1, and 10. The MSI B850 GAMING PLUS WIFI6E Motherboard provides visual output via HDMI 2.1 and DisplayPort 1.4, which supports 4K at 60Hz. The EZ DIY features, such as the EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn design, and EZ antenna, make construction simple. Realtek ALC897 delivers premium audio with 7.1-channel HD sound and Audio Boost technology for engaging gaming experiences. The MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard supports Bluetooth 5.3 and MU-MIMO Wi-Fi 6E, giving you complete wireless freedom. This MSI motherboard is compatible with Windows 11 64-bit, ensuring a future-ready and efficient gaming setup.
In Bangladesh, you can get original MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price.The MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard has 3 year warranty.
The latest price of MSI B850 GAMING PLUS WIFI6E Motherboard in Bangladesh is 28,500৳. You can buy the MSI B850 GAMING PLUS WIFI6E Motherboard at best price from our website or visit any of our showrooms.
