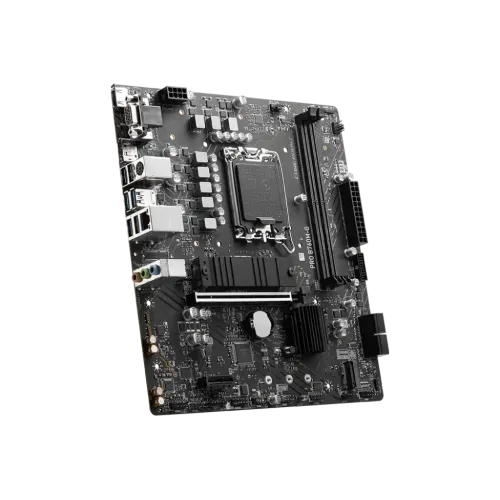

MSI PRO B760M-G DDR4 mATX Motherboard
  • MSI PRO B760M-G DDR4 mATX Motherboard
  • MSI PRO B760M-G DDR4 mATX Motherboard
  • MSI PRO B760M-G DDR4 mATX Motherboard
  • MSI PRO B760M-G DDR4 mATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

MSI PRO B760M-G DDR4 mATX Motherboard

Price 15,800৳
Regular Price 17,040৳
Status In Stock
Product Code 32003
Brand MSI

Key Features

  • Model: PRO B760M-G DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 64GB 4800(OC)
  • Graphics Output: 1x HDMI, 1x DP, 1x VGA
  • Features: 2x M.2 slot, Realtek RTL8125B 2.5Gbps LAN
  • View More Info
stars 180 Star Points

Payment Options

Specification

Basic Information
Supported CPUSupports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
ChipsetINTEL B760
Form FactormATX
220mmx243.84mm
AudioRealtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Memory
TypeDDR4
Slots2
Supported MemoryMemory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory64GB
Graphics
Graphics1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

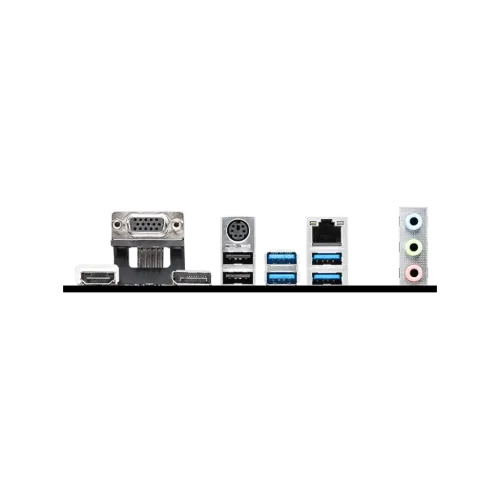

Connector & Ports
HDMI1x HDMI
Display Port (s)1x DisplayPort
VGA (s)1x VGA
USB (s)2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)Realtek RTL8125B 2.5Gbps LAN
Supported Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty3 years

Description

MSI PRO B760M-G DDR4 mATX Motherboard

The MSI PRO B760M-G DDR4 mATX Motherboard is a high-performance motherboard that supports a broad selection of Intel CPUs, making it an appealing option for both casual and professional users. This motherboard supports Intel Core 14th, 13th, and 12th Generation CPUs, as well as Pentium Gold and Celeron processors. It makes use of the LGA 1700 socket for a variety of CPU choices. The motherboard supports DDR4 memory, with a dual-channel configuration and a clock speed of 4800+MHz (when overclocked). This guarantees that multitasking and data management go smoothly. The Core Boost technology, with its superior architecture and digital power design, assures that the motherboard can handle more CPU cores, leading to higher overall performance. This is particularly useful for demanding applications. Memory Boost technology is used to transmit clean and reliable data signals, guaranteeing excellent performance, stability, and compatibility with the memory modules installed. PCIe 4.0 compatibility is included, as well as Lightning Gen4 x4 M.2 slots with M.2 Shield Frozr. This implies you may use high-speed storage devices and other PCIe peripherals to achieve lightning-fast data transfer and loading times. The addition of a 2.5 Gigabit LAN connector upgrades the network solution for professional and multimedia applications. This assures a safe, reliable, and fast network connection, lowering latency and enhancing streaming performance while online gaming. The motherboard has Audio Boost technology, which provides studio-level sound quality for an immersive gaming experience. This function is especially useful for gamers who value crystal-clear audio during gaming sessions. Steel Armor is included on the motherboard to protect VGA cards from bending and electromagnetic interference (EMI). This not only improves the performance and stability of your graphics card but also assures the motherboard's general robustness and endurance.

Buy MSI PRO B760M-G mATX Motherboard Shop in BD

In Bangladesh, you can get the original MSI PRO B760M-G mATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO B760M-G DDR4 Motherboard comes with 3 years warranty.

What is the price of MSI PRO B760M-G DDR4 Motherboard in Bangladesh?

The latest price of MSI PRO B760M-G DDR4 Motherboard in Bangladesh is 15,800৳. You can buy the MSI PRO B760M-G DDR4 Motherboard at best price from our website or visit any of our showrooms.
