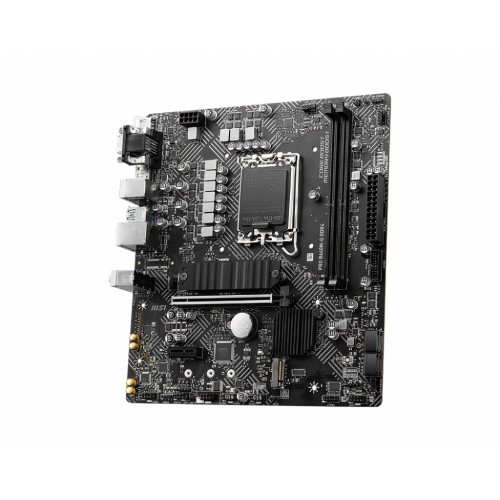

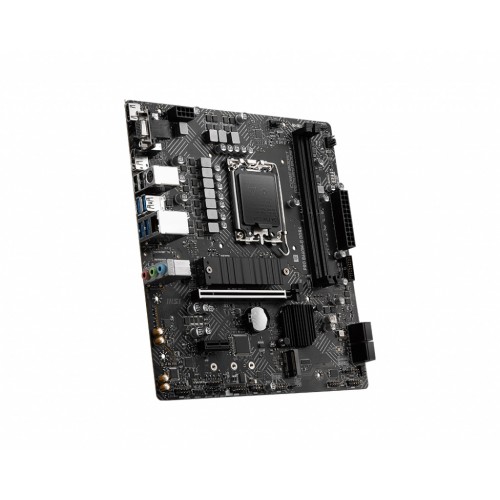

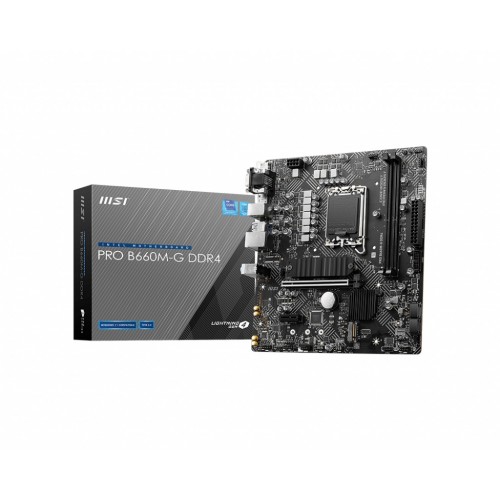

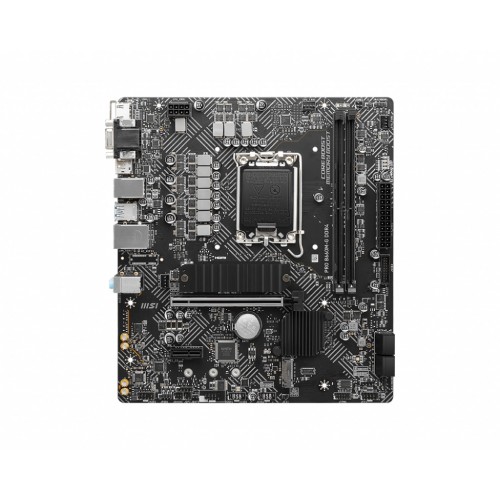

MSI PRO B660M-G DDR4 mATX Motherboard
  • MSI PRO B660M-G DDR4 mATX Motherboard
  • MSI PRO B660M-G DDR4 mATX Motherboard
  • MSI PRO B660M-G DDR4 mATX Motherboard
  • MSI PRO B660M-G DDR4 mATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

MSI PRO B660M-G DDR4 mATX Motherboard

Price To be announced
Status Discontinued
Product Code 20762
Brand MSI

Key Features

  • Model: PRO B660M-G DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported Memory: DDR4, up to 4600+(OC) MHz
  • PCIe 4.0, Lightning Gen4 x4, M.2 Shield Frozr
  • Supported socket: LGA 1700
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupport for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
ChipsetIntel B660 Chipset
BIOSBIOS FEATURES
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language
Form FactorM-ATX Form Factor
9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI1x PCIe 4.0 x16 slot (from CPU)
1x PCIe 3.0 x1 slot (from B660 chipset)
Memory
Type DDR4
Slots2x DDR4 memory slots
Supported MemorySupports ADL-s 1R 2133/ 2666/ 2933/ 3200 MHz 1
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memorysupport up to 64GB
Graphics
Graphics1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)
Connector & Ports
HDMIHDMI (BACK PANEL PORTS)
Display Port (s)DisplayPort (BACK PANEL PORTS)
VGA (s)Yes (BACK PANEL PORTS)
USB (s)Intel B660 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
2x USB 2.0 Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors
LAN Port (s)1x Realtek RTL8125BG 2.5Gbps LAN controller
Supported Storage4x SATA 6Gb/s ports (From B660 chipset) 1
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 chipset) 1
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Optane Technology
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O PortsINTERNAL CONNECTORS:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connector (support additional 4 USB ports)
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectorx
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x JRGB
2x JRAINBOW
1x Tuning Controller Connector

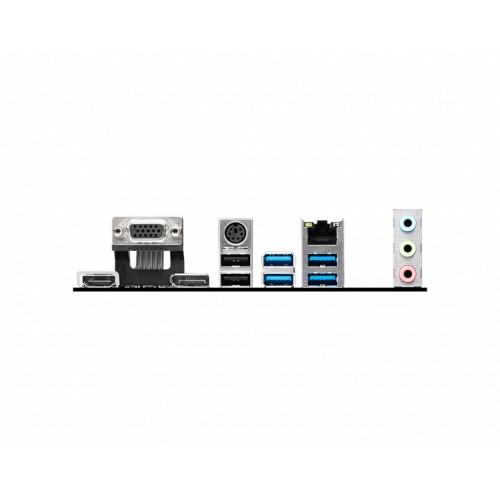

BACK PANEL CONNECTORS:
VGA
Keyboard / Mouse
LAN port
Audio connector
HDMI
DisplayPort
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
TPM (Trusted Platform Module )1x TPM module connector
Others
Special Features 1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

LED FEATURE
4x EZ Debug LED
Warranty Information
Manufacturing Warranty3 years warranty

Description

MSI PRO B660M-G DDR4 mATX Motherboard

MSI PRO B660M-G DDR4 motherboard supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4600+(OC) MHz. This motherboard comes with premium layout and digital power design to support more cores and provide better performance. In thihs bmotherboard, the Advanced technology to deliver pure data signals for the best performance, stability and compatibility. It has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. With 2.5G LAN, This 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. You can Upgraded network solution for professional and multimedia use and also it Delivers a secure, stable and fast network connection. This motherboard comes with Steel Armor, which helps to Protecting VGA cards against bending and EMI for better performance, stability and strength. The latest MSI PRO B660M-G DDR4 motherboard offers 03 year warranty.

What is the price of MSI PRO B660M-G DDR4 Motherboard in Bangladesh?

The latest price of MSI PRO B660M-G DDR4 Motherboard in Bangladesh is 12,500৳. You can buy the MSI PRO B660M-G DDR4 Motherboard at best price from our website or visit any of our showrooms.
