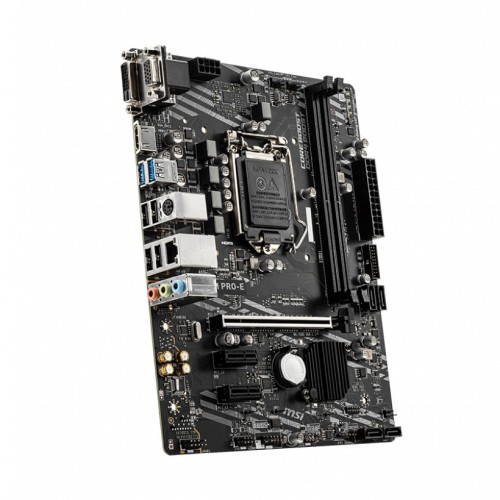

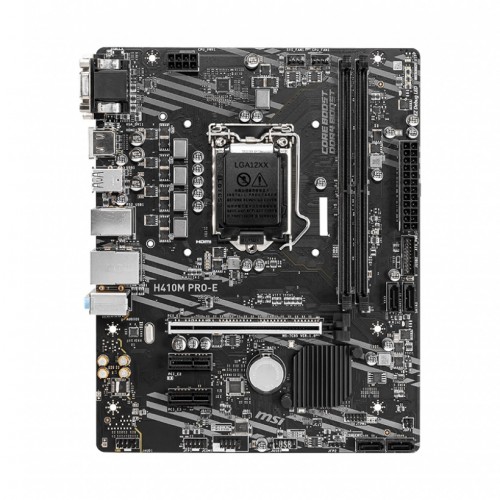

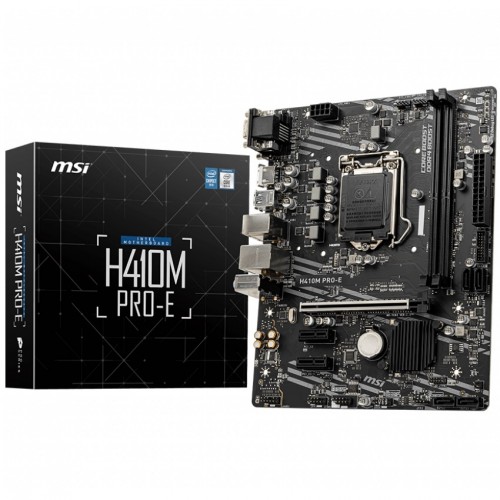

MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard
  • MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard
  • MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard
  • MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard

Price To be announced
Status Discontinued
Product Code 15677
Brand MSI

Key Features

  • Model: H410M PRO-E
  • Supports 10th Gen Intel Core and Pentium Gold/ Celeron Processors
  • PCI-E Steel Armor
  • 2x DDR4 Memory Slots
  • Intel LAN, Audio Boost, DDR4 Boost
  • View More Info
stars 70 Star Points
Discontinued

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core and Pentium Gold/ Celeron processors for LGA 1200 socket
ChipsetIntel H410 Chipset
Form FactorMirco-ATX Form Factor
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Expansion Slots
PCI1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
Memory
TypeNon-ECC, Un-Buffered Memory
Slots2x DDR4 memory slots
Supported MemoryIntel Core i7/ i9: Supports up to DDR4 2933 MHz
Intel Core i5 and below: Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory64GB
Graphics
Graphics1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz

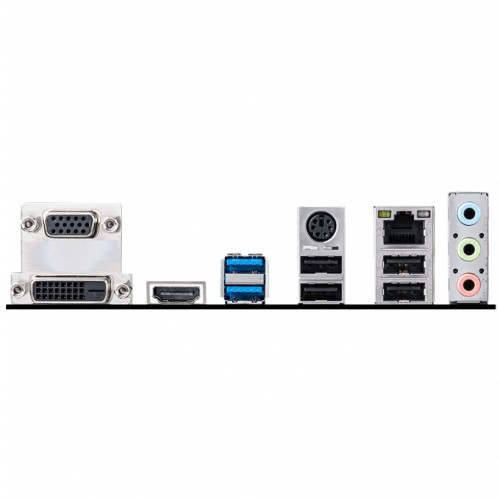

Connector & Ports
HDMI1x HDMI 1.4 port (Resolution of 4096x2160 @30Hz)
DVI-D (s)1x DVI-D port (Resolution of 1920x1200 @60Hz)
USB (s)Intel H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s)1x Realtek R1111H Gigabit LAN controller
Supported StorageIntel H410 Chipset
4x SATA 6Gb/s ports
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O Ports1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED
TPM (Trusted Platform Module )1 x TPM module connector
Warranty Information
Manufacturing Warranty3 Years

Description

MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.

What is the price of MSI H410M PRO-E Motherboard in Bangladesh?

The latest price of MSI H410M PRO-E Motherboard in Bangladesh is 7,600৳. You can buy the MSI H410M PRO-E Motherboard at best price from our website or visit any of our showrooms.

Questions (2)

Have question about this product? Get specific details about this product from expert.

aminul islam jaber on 22 Aug 2021

Q: does i3-10100f work on this motherboard?

A: Yes, MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard supports i3-10100f.

By Star Tech Support 22 Aug 2021

Saiyedul Abrar on 11 Aug 2021

Q: Will it support Corsair Vengeance LPX 4GB DDR4 DRAM 2400MHz?

A: Yes sir, MSI H410M PRO-E Intel 10th Gen Micro-ATX Motherboard supports Corsair Vengeance LPX 4GB DDR4 DRAM 2400MHz.

By Star Tech Support 11 Aug 2021
