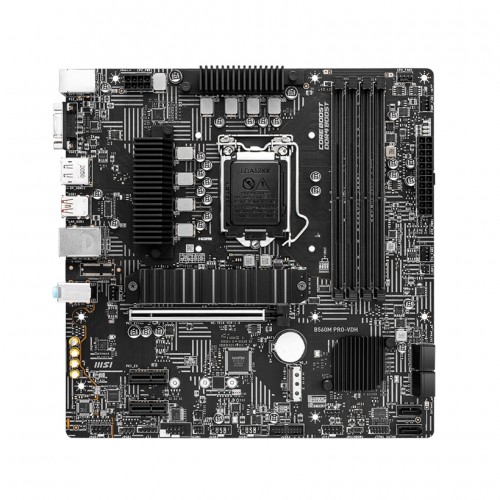

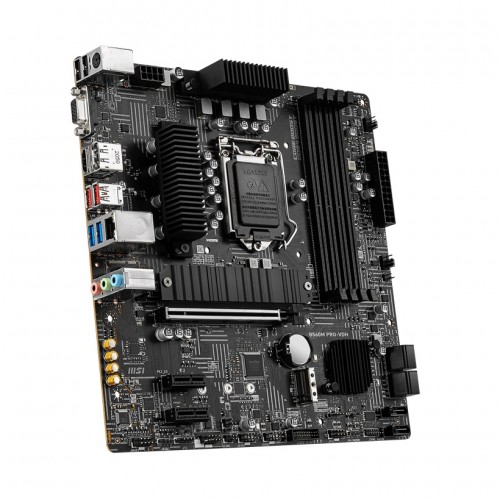

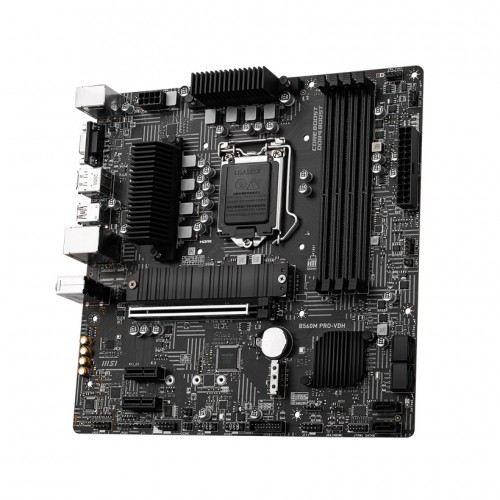

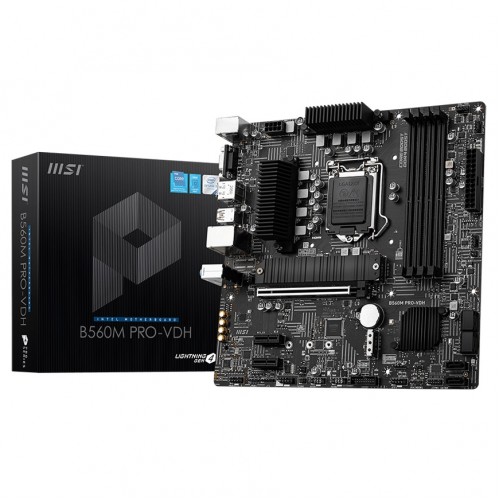

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard
  • MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard
  • MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard
  • MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard
  • MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard

Price To be announced
Status Discontinued
Product Code 17637
Brand MSI

Key Features

  • Model: B560M PRO-VDH
  • Supports 10th & 11th Gen Core, Pentium Gold & Celeron processors
  • Socket: LGA 1200, Form Factor: Micro ATX
  • Supports DDR4, up to 5066(OC) MHz
  • PCIe 4.0, Lightning Gen4 x4
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA1200
ChipsetIntel B560 chipset
BIOS1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language
Form FactorMicro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
AudioRealtek AL897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI1x PCIe x16 slot (From CPU)
PCI_E1 (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 chipset)
M.2 Socket2x M.2 slot (Key M)
Memory
TypeDDR4
Slots4x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum MemoryUp to 128GB
Graphics
Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz, and 1920x1200 @60Hz

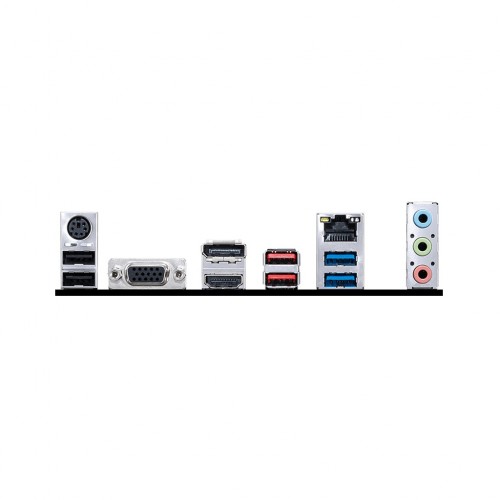

Connector & Ports
HDMI1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
VGA (s)1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz, and 1920x1200 @60Hz
USB (s)2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s)1x Realtek 8125B 2.5Gbps LAN controller
Supported Storage- 6x SATA 6Gb/s ports (From B560 chipset)
- 2x M.2 slot (Key M)
- M2_1 slot
- Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
- Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot2 (from B560 chipset)
- Supports up to PCIe 3.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- Intel Optane Memory Ready
- Supports Intel Smart Response Technology for Intel Core processors
AudioRealtek AL897 Codec
7.1-Channel High Definition Audio
1x Front panel audio connector
Internal I/O Ports1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x Serial port connector
1x Tuning Controller Connector
TPM (Trusted Platform Module )1 x TPM module connector
Warranty Information
Manufacturing Warranty03 years warranty

Description

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard

The latest MSI B560M PRO-VDH Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz. This motherboard featured Core Boost With a premium layout and digital power design to support more cores and provide better performance. Here used Advanced technology to deliver pure data signals for the best performance and stability. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr that provides you Lightning Fast Experience. By 2.5G LAN, you can Upgrade network solution for professional and multimedia use that delivers a secure, stable and fast network connection. Here, Audio Boost rewards your ears with studio-grade sound quality. This motherboard has Steel Armor that Protecting VGA cards against bending for better performance, stability, and strength. This latest MSI PRO series motherboards are designed for professional and satisfy workflow. The MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard has 03 years of warranty.

What is the price of MSI B560M PRO-VDH Micro ATX Motherboard in Bangladesh?

The latest price of MSI B560M PRO-VDH Micro ATX Motherboard in Bangladesh is 13,500৳. You can buy the MSI B560M PRO-VDH Micro ATX Motherboard at best price from our website or visit any of our showrooms.
