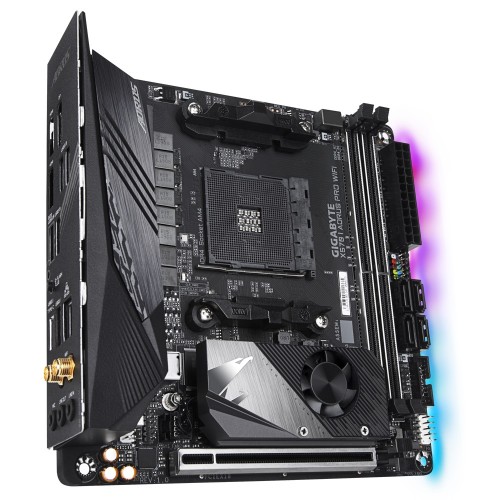

GIGABYTE X570 I Aorus Pro Wi-Fi AMD Mini-ITX Motherboard
  • GIGABYTE X570 I Aorus Pro Wi-Fi AMD Mini-ITX Motherboard
  • GIGABYTE X570 I Aorus Pro Wi-Fi AMD Mini-ITX Motherboard
  • GIGABYTE X570 I Aorus Pro Wi-Fi AMD Mini-ITX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

GIGABYTE X570 I Aorus Pro Wi-Fi AMD Mini-ITX Motherboard

Price To be announced
Status Out Of Stock
Product Code 17507
Brand GIGABYTE

Key Features

  • Model: X570 I Aorus Pro WiFi
  • Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
  • Chipset: AMD X570
  • Memory: 4 x DDR4, Max 128 GB
  • Supports SLI and CrossFire
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUAMD Socket AM4, Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen/ 2nd Gen Ryzen/ 3rd Gen Ryzen with Radeon Graphics/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics Processors
ChipsetAMD X570
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMini-ITX Form Factor; 17.0cm x 17.0cm
AudioRealtek ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI3rd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
2nd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
M.2 Socket3rd Generation AMD Ryzen processors:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/ x2 SSD support)
2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/ 2280 SATA and PCIe 4.0 x4/x2 SSD support)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Memory
TypeDDR4
Slots2 x DIMM sockets
Supported MemoryAMD Ryzen 5000 series Processors/ 3rd Gen AMD Ryzen Processors:
Support for DDR4 5100(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5300(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors:
Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory64 GB (32 GB single DIMM capacity)
Graphics
GraphicsIntegrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for up to 3 displays at the same time
Max Shared Memory16 GB
Connector & Ports
HDMI2 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz
USB (s)Integrated in the CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Integrated in the Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/ 1.1 ports available through the internal USB header
LAN Port (s)Intel GbE LAN chip (10/100/1000 Mbit)
Wireless Communication moduleIntel Wi-Fi 6 AX200
Wi-Fi 802.11a/ b/ g/ n/ ac/ ax, supporting 2.4/ 5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported StorageIntegrated in the CPU (M2A_SOCKET):
3rd Generation AMD Ryzen processors:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 4.0 x4/ x2 SSD support)
2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/ 2280 SATA and PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty03 years

Description

GIGABYTE X570 I Aorus Pro Wi-Fi AMD Mini-ITX Motherboard

Ultimate Power Design

To unleash the full potential of the 3rd Generation of AMD Ryzenâ„¢ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.

Advanced Thermal Design

On a small mini-ITX board, heat is easily trapped and thermal balance is not easy to achieve. To avoid thermal throttle, an improved thermal solution consisting of a heatsink with cuts, and multi-layered heatsink has been implemented on the X570 I AORUS PRO WIFI. With a LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.

Smart Chipset Fan Heatsink

Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation. X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000 working hours.

Full PCIe 4.0 Design

X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors, and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.

Next Generation Connectivity

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

ALC1220-VB Immersive Gaming ViBes

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A). AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

RGB Fusion 2.0

With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS Motherboards are now upgraded with Addressable LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. AORUS Gaming Motherboards will support 5v digital LED lighting strips and up to 1000 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come. Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

What is the price of GIGABYTE X570 I Aorus Pro Wi-Fi Motherboard in Bangladesh?

The latest price of GIGABYTE X570 I Aorus Pro Wi-Fi Motherboard in Bangladesh is 0৳. You can buy the GIGABYTE X570 I Aorus Pro Wi-Fi Motherboard at best price from our website or visit any of our showrooms.

Questions (1)

Have question about this product? Get specific details about this product from expert.

Fokrul Islam on 22 Jan 2022

Q: Will this processor support Ryzen 5 1600?

A: Yes Sir, Gigabyte X570 I Aorus Pro Wi-Fi AMD Mini-ITX Motherboard will be compatible with Ryzen 5 1600.

By Star Tech Support 22 Jan 2022
