Gigabyte X299 AORUS Gaming 3 Motherboard
  • Gigabyte X299 AORUS Gaming 3 Motherboard
  • Gigabyte X299 AORUS Gaming 3 Motherboard
  • Gigabyte X299 AORUS Gaming 3 Motherboard

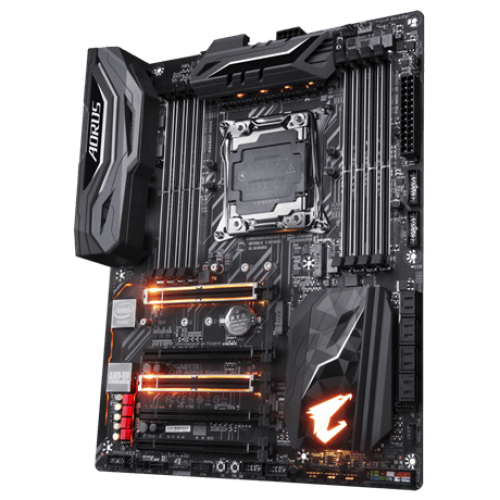

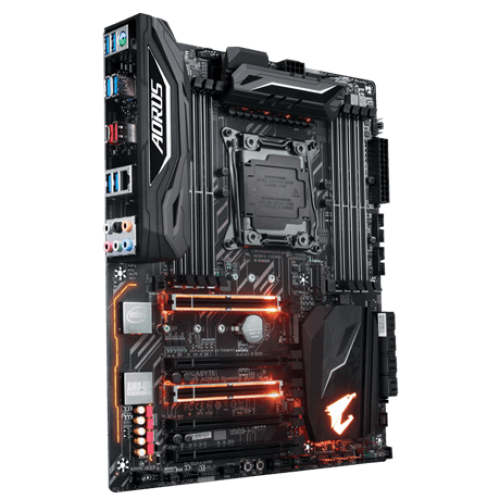

Gigabyte X299 AORUS Gaming 3 Motherboard

Price To be announced
Status Discontinued
Product Code 6590
Brand GIGABYTE

Key Features

  • Model: X299 AORUS Gaming 3
  • Intel® X299 Express Chipset
  • Supports Intel® Coreâ„¢ X-series Processor Family
  • 8 x DDR4 DIMM
  • 2 x PCI Express x16 slots
  • View More Info
Discontinued

Specification

Motherboard
ChipsetIntel® X299 Express Chipset
Supported ProcessorsSupport for Intel® Core™ X series processors in the LGA2066 package
L3 cache varies with CPU
Max Memory8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
* Support for up to 512 GB of system memory when using Registered DIMMs.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
* Supported when using a 16-lane CPU (4-core).
4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core).
Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
Support for non-ECC Un-buffered DIMM memory modules
Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
Support for Extreme Memory Profile (XMP) memory modules
Onboard VideoChipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Intel® VROC ready
Onboard AudioRealtek® ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Onboard LANIntel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
Warranty3 Years

Description

Gigabyte X299 AORUS Gaming 3 Motherboard

  • Supports Intel® Coreâ„¢ X-series Processor Family
  • Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs, DDR4400+(OC)
  • Intel® Optaneâ„¢ Memory Ready
  • Intel® VROC ready
  • ASMedia 3142 USB 3.1 Gen 2 with USB Type-Câ„¢ and Type-A
  • 3-Way Graphics Support with Dual Armor and Ultra Durableâ„¢ Design
  • Server-Class Digital Power Design
  • ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitor
  • RGB FUSION supports Digital LED and RGBW Light Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • NVMe PCIe Gen3 x4 U.2 support by optional adaptor
  • Intel® GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
  • Anti-Sulfur Resistor Design
  • Ultra Durableâ„¢ 25KV ESD and 15KV Surge LAN Protection
  • Lightning-Fast Intel® Thunderboltâ„¢ 3 AIC Support
  • GIGABYTE UEFI DualBIOSâ„¢
  • APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities

03 Years Warranty
