| Price | To be announced |
| Status | Up Coming |
| Product Code | 44822 |
| Brand | Colorful |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard | |
| Chipset | AMD B450 | |
| BIOS | 128M UEFI, support multiple languages | |
| Form Factor | M-ATX 230mm x 197mm |
|
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels | |
| Expansion Slots | ||
| PCI | 1×PCIe 3.0 x16 slot 1×PCIe 2.0 x1 slot |
|
| M.2 Socket | 1x M.2 slot M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM |
|
| Supported Memory | Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133MHz memory Support Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology |
|
| Maximum Memory | up to 64GB of memory (a single socket can support up to 32 GB of memory) | |
| Connector & Ports | ||
| HDMI | 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution | |
| VGA (s) | 1×VGA interface | |
| LAN Port (s) | 1×Gigabit network interface RTL8111H Gigabit Network Card |
|
| Supported Storage | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel) |
|
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels | |

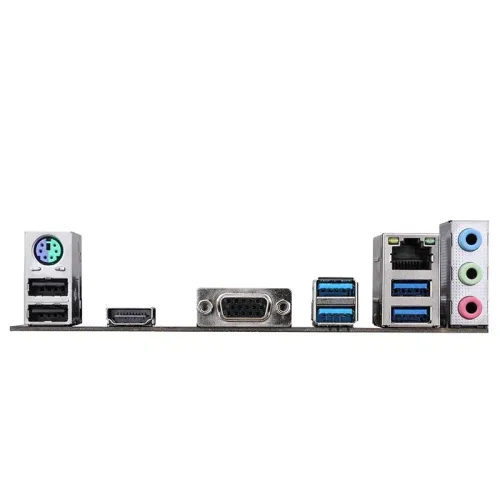

| Internal I/O Ports | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Digital audio pin -1×Clear CMOS jumper -1×BIOS burner pin -1×Debug light pin -1×USB live control jumper |
|
| Others | ||
| Special Features | Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

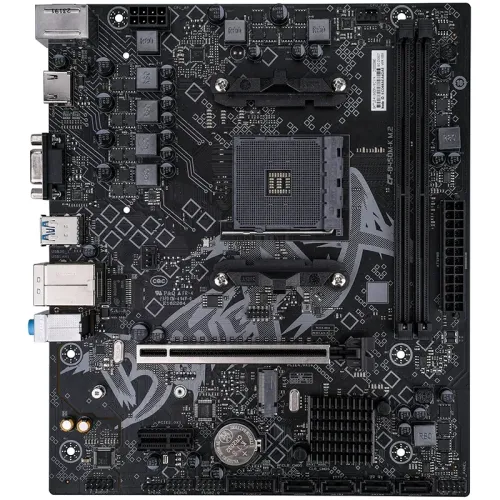

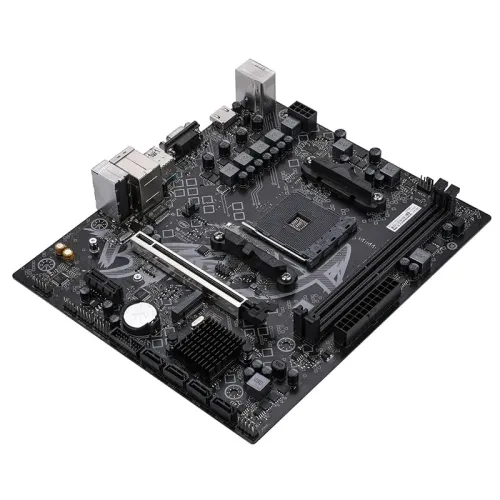

The Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX motherboard is designed for consumers who desire reliable features, broad compatibility, and strong performance in a small micro-ATX package. Supporting AMD Ryzen series processors via the AM4 socket, it provides a solid basis for gaming rigs, productivity settings, and daily computers. Memory performance is impressive, with two DDR4 sockets enabling up to 64GB total capacity, or 32GB each slot, and speeds up to DDR4-4000 (OC). The Colorful BATTLE-AX B450M-K M.2 V14 Motherboard optimizes memory settings for steady, high-performance operation thanks to its dual-channel architecture and support for Extreme Memory Profile (XMP). Storage options are equally diverse, with one M.2 slot supporting 2242/2280 SSDs via PCIe 3.0 x4 or SATA and four SATA 6Gb/s connectors for extra drives. The board's back I/O contains two USB 2.0 ports, four USB 3.2 Gen 1 Type-A connectors, HDMI 2.0 support for 4K @ 60Hz, VGA, PS/2, Gigabit LAN, and three audio jacks. The colorful BATTLE-AX B450M-K M.2 V14 Motherboard includes internal headers for expansion of more USB ports, audio, fans, and front panel connectors, as well as debug and jumper pins for expert users. Expansion slots include one PCIe 3.0 x16 slot for graphics cards and one PCIe 2.0 x1 slot for add-on cards. The motherboard includes a 128M UEFI BIOS that supports several languages, as well as advanced power management features such as S3/S4 wake-up, network S5 wake-up, USB wake-up, and scheduled boot choices. The colorful BATTLE-AX B450M-K M.2 V14 Motherboard includes monitoring tools that let you to regulate CPU and system fan speeds, as well as track CPU, system, and voltage temperatures in real time. The dependable RTL8111H Gigabit Ethernet controller handles networking, while the Realtek ALC897 codec provides high-fidelity audio up to 5.1 channels. This colorful BATTLE-AX B450M-K M.2 V14 mATX Motherboard is 230mm x 197mm and fits comfortably into tiny enclosures without sacrificing connectivity or performance.
In Bangladesh, you can get original Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard From Star Tech. We have a large collection of the latest Colorful Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard comes with 3 years of warranty.
The latest price of Colorful BATTLE-AX B450M-K M.2 V14 Motherboard in Bangladesh is 0৳. You can buy the Colorful BATTLE-AX B450M-K M.2 V14 Motherboard at best price from our website or visit any of our showrooms.
