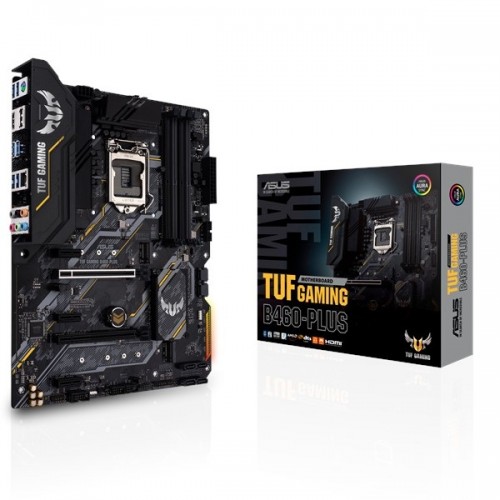

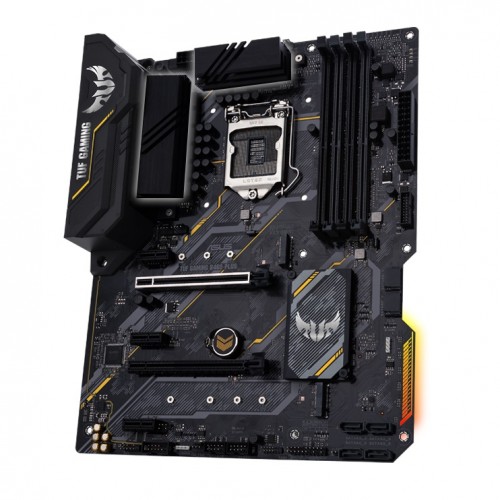

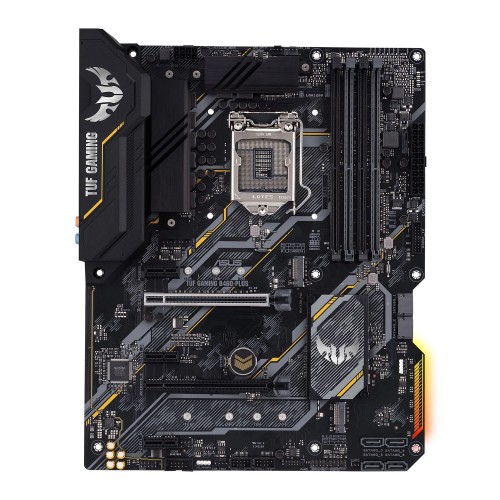

Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard
  • Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard
  • Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard
  • Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 13830
Brand Asus

Key Features

  • Model: TUF Gaming B460-Plus
  • Intel LGA 1200 socket
  • Aura Sync RGB Lighting
  • Made for Online Gaming
  • Enhanced power solution
  • View More Info
stars 120 Star Points
Discontinued

Specification

Basic Information
Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel B460 Express Chipset
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactorATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)
Expansion Slots
PCIIntel 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
M.2 SocketIntel® B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
TypeDual channel memory architecture
Slots4 x DDR4 DIMM
Supported MemorySupport for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory128 GB
Graphics
GraphicsIntegrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports AMD 2-Way CrossFireX Technology

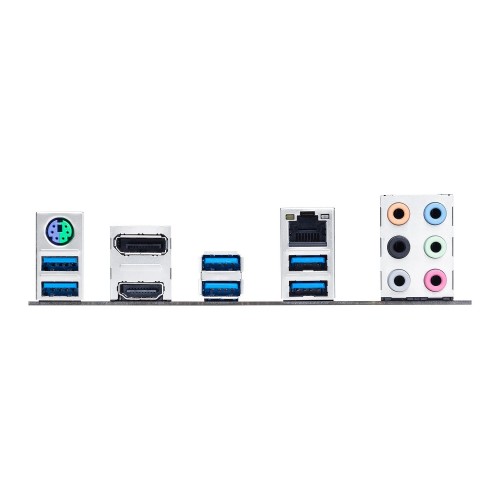

Connector & Ports
HDMI1 x HDMI 1.4b
Display Port (s)1 x DisplayPort 1.4
USB (s)Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
LAN Port (s)Intel I219-V 1Gb Ethernet
Supported StorageTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
AudioRealtek ALC S1200A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Internal I/O Ports1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
Others
Special Features Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
Digi+ VRM
EPU
Fan Xpert 4
- EZ update
- PC Cleaner
- System Information
AI Charger
ASUS Turbo LAN
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
DAEMON Tools
Google Chrome Browser & Google Toolbar
TUF GAMING CPU-Z
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features:
ASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design :
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution:
- Aluminum heatsink design
ASUS EZ DIY
- Box Headers
AURA Sync
- Standard RGB headers
Warranty Information
Manufacturing Warranty03 Years

Description

Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard

TUF Gaming B460-Plus distills essential elements of the latest Intel platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for faster memory and storage, TUF Gaming B460-Plus is the perfect foundation for your next high-core-count battle rig. Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Proprietary capacitors provide up to 20% greater temperature tolerance and a 5X-longer lifespan. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming B460-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Intel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer. Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface and reduces network lag.

What is the price of Asus TUF Gaming B460-Plus Motherboard in Bangladesh?

The latest price of Asus TUF Gaming B460-Plus Motherboard in Bangladesh is 12,600৳. You can buy the Asus TUF Gaming B460-Plus Motherboard at best price from our website or visit any of our showrooms.

Questions (5)

Have question about this product? Get specific details about this product from expert.

Afif Akram on 05 Aug 2021

Q: Does this motherboard support Samsung 980 pro 250gb ssd?

A: Yes sir, Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard supports Samsung 980 Pro 250GB PCIe 4.0 M.2 NVMe SSD.

By Star Tech Support 05 Aug 2021

Mamun on 10 Feb 2021

Q: Does it support Samsung 970 EVO Plus NVMe M.2 250GB SSD?

A: Yes sir this Motherboard supports Samsung 970 EVO Plus NVMe M.2 250GB SSD.

By Star Tech Support 10 Feb 2021

Mahbubur Rahman on 30 Jan 2021

Q: Does it support Corsair MP510 240GB NVMe M.2 SSD?

A: Yes sir, you can use Corsair MP510 240GB NVMe M.2 SSD on Asus TUF Gaming B460-Plus Intel 10th Gen ATX Motherboard.

By Star Tech Support 30 Jan 2021

Noman on 24 Dec 2020

Q: Will Asus TUF Gaming B460-Plus Intel 10th Gen Micro-ATX motherboard will support for Intel core i7-10700?

A: Yes Sir, the Asus TUF Gaming B460-Plus Intel 10th Gen Micro-ATX motherboard will support for Intel core i7-10700.

By Star Tech Support 24 Dec 2020

Ankur on 20 Sep 2020

Q: Will the motherboard support Corsair Vengeance LPX 16GB DDR4 DRAM 3200MHz Ram?

A: No Sir. The Asus TUF Gaming B460-Plus Intel 10th Gen Micro-ATX Motherboard will support 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

By Star Tech Support 20 Sep 2020
