close| Price | To be announced |
| Status | Up Coming |
| Product Code | 48554 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD X870E | |
| BIOS | 64 MB (512Mb) Flash ROM, UEFI AMI BIOS |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4) |
|
| M.2 Socket | Supports 5 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*" Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit and DIMM Fit Pro NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x HDMI port* 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 11 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C®) Front USB (Total 12 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)** 1 x USB 20Gbps connector (supports USB Type-C®)* 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A **USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
|
| LAN Port (s) | 1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4 (suppport LE Audio)*** |
|
| Supported Storage | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* AMD Ryzen™ 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode) 2 x SATA 6Gb/s ports ASMedia ASM1162 Controller 2 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10* * SATA ports from ASM1162 cannot support RAID |
|
| Audio | 2 x Gold-plated audio jacks | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x AIO Q-Connector Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper Back Panel I/O Ports: 2 x USB4 (40Gbps) ports (2 x USB Type-C) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 10Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
|
| Others | ||
| Special Features | Asynchronous Clock Extreme OC Kit - FlexKey button - LN2 Mode - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - 1 x DDR5 fan holder - 1 x ROG assistant fan (60mm) - 3D VC M.2 Heatsink - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Metal backplate ASUS EZ DIY - Backplate - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) - Polymo Lighting II ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - WiFi Q-Antenna - MLO Wizard ASUS DriverHub - ASUS MB Manager - HWiNFO - ASUS AI Advisor - AIDA64 Extreme (1 year full version) - ASUS GlideX - USB Wattage Watcher - Turbo Vcore WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial)** UEFI BIOS AI Overclocking Guide Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

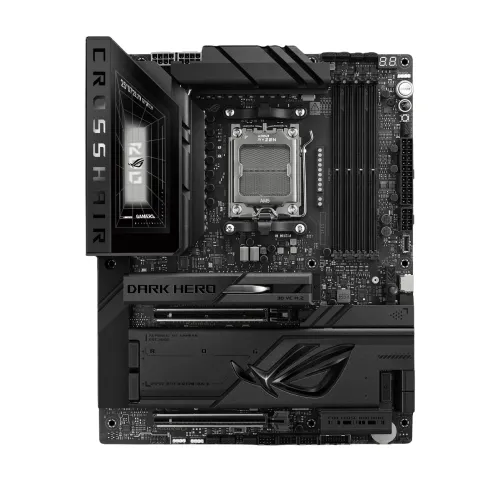

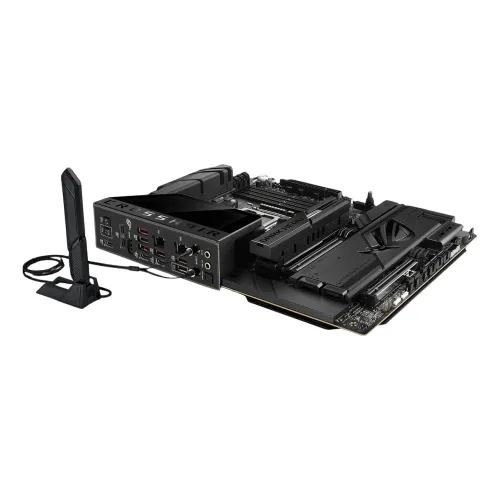

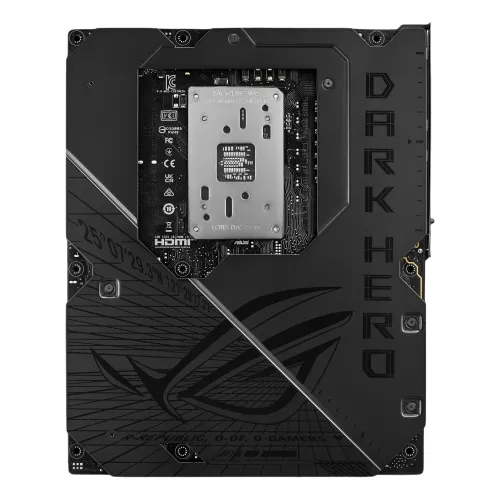

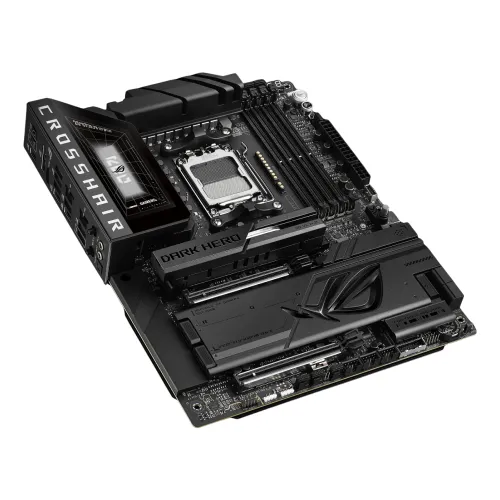

The Asus ROG CROSSHAIR X870E DARK HERO Motherboard is a flagship gaming and enthusiast platform built to deliver uncompromising performance. Designed for the latest AMD AM5 processors, this Asus X870E Motherboard supports DDR5 memory and PCIe 5.0, ensuring ultra-fast data transfer speeds and next-generation GPU compatibility. Whether you are building a high-end gaming rig or a workstation for demanding creative tasks, this Asus ROG Motherboard provides the stability, speed, and scalability needed for future-ready computing.
Engineered with a robust 20+2+2 power stage design, the Asus ROG CROSSHAIR X870E DARK HERO Motherboard ensures consistent power delivery for overclocking and heavy workloads. This advanced design allows users to push their AMD Ryzen processors to peak performance without compromising stability. To complement its power efficiency, the motherboard includes five M.2 slots with integrated heatsinks, including a 3D VC M.2 heatsink for superior thermal management. These cooling solutions keep high-speed SSDs operating at optimal temperatures, even during extended gaming or content creation sessions.
The Asus 870 Motherboard is equipped with cutting-edge connectivity options to meet the demands of modern systems. Featuring USB4 ports, multiple USB Type-C connections, and 10G Ethernet, it ensures lightning-fast networking and seamless data transfer. With support for PCIe 5.0, users can take advantage of the latest graphics cards and storage devices, unlocking unmatched speed and responsiveness. Its multiple PCIe slots provide flexibility for expansion, making this Asus Motherboard ideal for gamers, professionals, and enthusiasts who require versatile upgrade paths.
Exclusive ASUS AI technologies make the Asus ROG CROSSHAIR X870E DARK HERO Motherboard intelligent and adaptive. Features such as AI Cooling II, AI Overclocking, and AI Cache Boost automatically optimize system performance, ensuring smooth gameplay and efficient multitasking. These smart enhancements allow users to enjoy maximum performance without the need for constant manual adjustments, making the Asus ROG Motherboard a perfect choice for both beginners and experienced PC builders who want effortless tuning and stability.
With its sleek all-black aesthetic and Polymo Lighting II, the Asus ROG CROSSHAIR X870E DARK HERO Motherboard combines durability with customizable style. The ATX form factor ensures compatibility with a wide range of cases, while Q-Connect BIOS features simplify installation, updates, and system management. Built with premium materials and advanced engineering, this Asus Motherboard is designed to withstand the rigors of high-performance computing, offering both reliability and visual appeal for gamers and professionals alike.
In Bangladesh, you can get original Asus ROG CROSSHAIR X870E DARK HERO AMD AM5 ATX Motherboard From Star Tech. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Asus ROG CROSSHAIR X870E DARK HERO AMD AM5 ATX Motherboard comes with 3 years of warranty.
The latest price of Asus ROG CROSSHAIR X870E DARK HERO Motherboard in Bangladesh is 0৳. You can buy the Asus ROG CROSSHAIR X870E DARK HERO Motherboard at best price from our website or visit any of our showrooms.
