close| Price | 130,500৳ |
| Regular Price | 143,550৳ |
| Status | In Stock |
| Product Code | 49291 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series* | |
| Chipset | AMD TRX50 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | CEB Form Factor 12 inch x 11 inch (30.5 cm x 28.3 cm) |
|
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors 2 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot(x8 mode) 1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x16 slot(x4 mode) * Please check the PCIe bifurcation table on the support site |
|
| M.2 Socket | 3 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product |
|
| Connector & Ports | ||
| USB (s) | Rear USB (Total 9 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A ) 2 x USB 2.0 ports (2 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel I226-LM 2.5Gb Ethernet |
|
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| Supported Storage | Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. | |
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Dedicated audio PCB layers - Unique de-pop circuit * A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output. * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard. |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power related 2 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x BMC header 1 x COM Port header 1 x USB4 header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button 1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin system panel header 1 x Chassis intrusion header 1 x Thermal Sensor header Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 port (2 x Type-A) 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink and onboard thermal pads - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility - FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

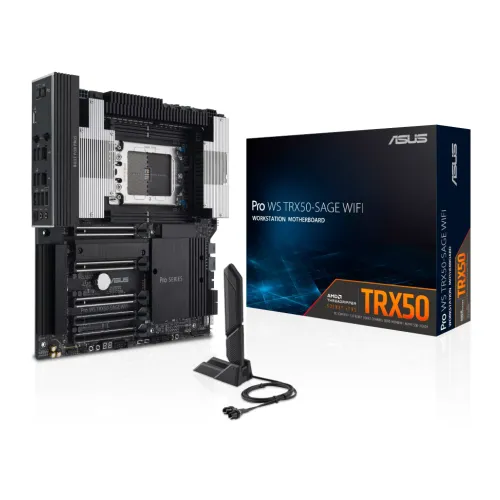

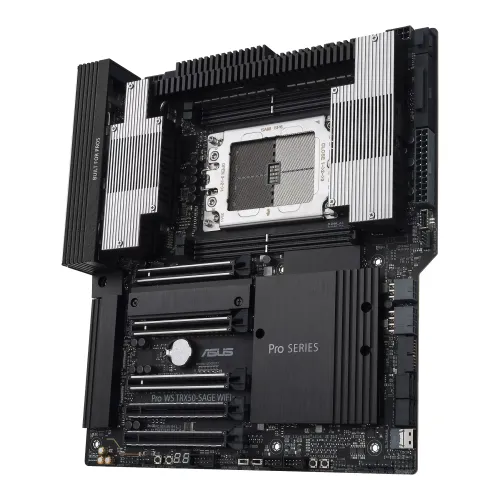

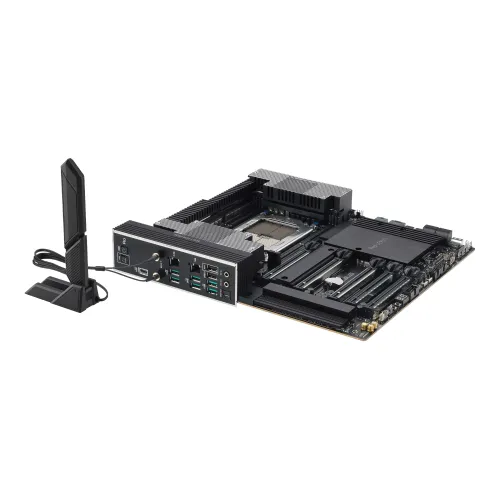

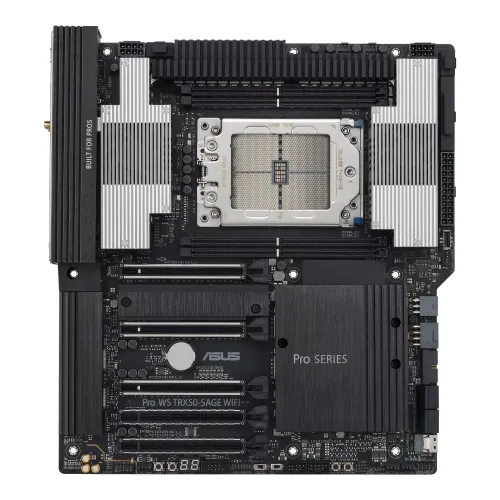

The ASUS Pro WS TRX50‑SAGE WIFI Workstation Motherboard is a professional‑grade solution built for creators, engineers, and enterprises who demand uncompromising performance. Powered by the AMD TRX50 chipset and supporting Ryzen Threadripper PRO 9000 & 7000 WX‑Series processors, this ASUS Workstation WiFi Motherboard delivers cutting‑edge computing power with advanced scalability, connectivity, and durability.
Featuring the AMD sTR5 socket, the ASUS Pro WS TRX50‑SAGE WIFI supports Ryzen Threadripper PRO and Threadripper CPUs, offering massive multi‑core performance for rendering, simulation, and AI workloads. With 4 DDR5 DIMM slots and quad‑channel memory architecture, this ASUS Motherboard for Threadripper CPU ensures high bandwidth and stability for professional applications.
This ASUS TRX50 Workstation Motherboard provides versatile expansion with 2 PCIe 5.0 x16 slots, 1 PCIe 5.0 x16 slot (x8 mode), 1 PCIe 4.0 x16 slot, and 1 PCIe 4.0 x16 slot (x4 mode). Storage options include 3 M.2 slots (PCIe 5.0 and 4.0), 4 SATA 6Gb/s ports, and 1 SlimSAS port supporting PCIe 4.0 NVMe devices. With AMD RAIDXpert2 technology, users can configure PCIe and SATA RAID 0/1/5/10 for performance and redundancy.

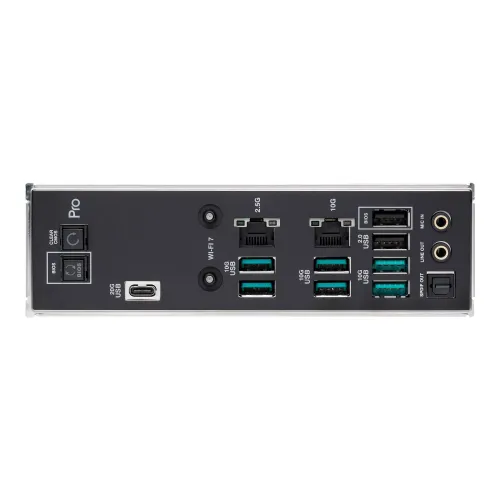

The rear I/O panel offers 1 USB 20Gbps Type‑C port, 6 USB 10Gbps Type‑A ports, and 2 USB 2.0 ports. Networking is powered by Marvell AQtion 10Gb Ethernet and Intel 2.5Gb Ethernet, while integrated Wi‑Fi 7 and Bluetooth 5.4 provide next‑generation wireless connectivity. Front panel support includes USB 20Gbps Type‑C with 27W PD/QC4+, USB 5Gbps, and multiple USB 2.0 headers, making this ASUS Workstation WiFi Motherboard ideal for modern professional setups.
Equipped with Realtek ALC1220P Surround Sound HD Audio CODEC, the ASUS Pro WS TRX50‑SAGE WIFI delivers high‑fidelity audio with 120 dB SNR playback and 113 dB SNR recording. Features include impedance sensing, premium capacitors, audio shielding, and optical S/PDIF out, ensuring clear sound for content creation and multimedia workflows.
Designed for 24/7 reliability, the motherboard integrates advanced thermal solutions including VRM heatsinks with active fans, M.2 heatsinks, and onboard thermal pads. ASUS Q‑Design features such as Q‑DIMM, Q‑Slot, and BIOS FlashBack™ simplify installation and maintenance. With CEB form factor (12 × 11 inches), this ASUS Workstation Motherboard fits workstation chassis while delivering enterprise‑grade durability.
In Bangladesh, you can get original ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard comes with 3 years warranty.
The latest price of ASUS Pro WS TRX50-SAGE WIFI Motherboard in Bangladesh is 130,500৳. You can buy the ASUS Pro WS TRX50-SAGE WIFI Motherboard at best price from our website or visit any of our showrooms.
