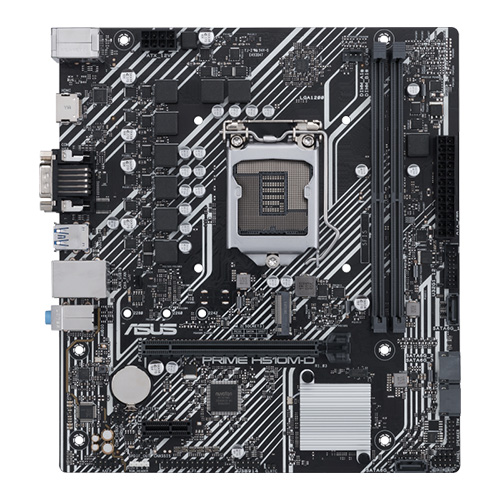

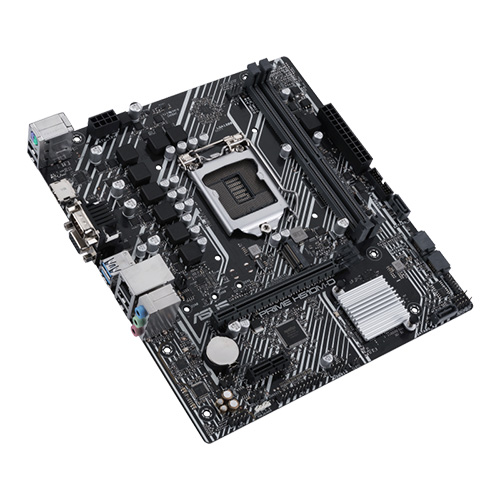

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard
  • ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard
  • ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard
  • ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

Price To be announced
Status Discontinued
Product Code 16768
Brand Asus

Key Features

  • Model: PRIME H510M-D
  • Intel LGA 1200 socket: 11th and 10th Gen Processors
  • PCIe 4.0, 32Gbps M.2, 1Gb Ethernet & USB 3.2 Gen 1
  • 5X Protection III, LPT header & RGB header
  • PCH heatsink and Fan Xpert
  • View More Info
stars 80 Star Points
Discontinued

Specification

Basic Information
Supported CPUIntel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel H510 Chipset

BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactormicroATX
22.6cm x 20.3cm
AudioRealtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"

Audio Features:
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
Expansion Slots
PCI1 x PCIe 4.0/3.0 x16 slot
1 x PCIe 3.0 x1 slot

M.2 SocketSupports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Type2DDR4 (Dual Channel)
Supported Memory64GB
Maximum MemoryDDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Graphics
Graphics1 x D-Sub
1 x HDMI 2.0
Connector & Ports
HDMI1 x HDMI 2.0
D-Sub (s)1 x D-Sub port

USB (s)Rear USB:Total 6 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB:Total 4 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Supported StorageM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
AudioRealtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC:
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"

Audio Features:
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers

(A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.)
Internal I/O PortsFan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related:
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB:
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous:
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

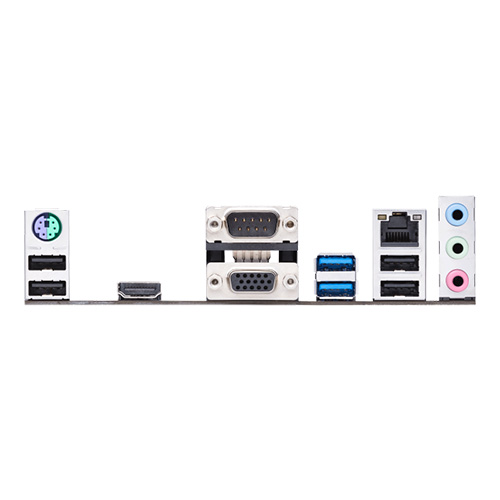

Back Panel I/O Ports:
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Intel I219-V 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty03 Years Warranty

Description

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential and supports 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-D provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

This motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. ASUS PRIME H510M-D Motherboard featured with Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors, Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1, Comprehensive cooling: PCH heatsink and Fan Xpert, 5X Protection III: Multiple hardware safeguards for all-round protection.The ASUS Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads and also features with comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

ASUS H510 series motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. This latest ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard comes with 03 Years Warranty.

What is the price of ASUS PRIME H510M-D 10th & 11th Gen Micro ATX Motherboard in Bangladesh?

The latest price of ASUS PRIME H510M-D 10th & 11th Gen Micro ATX Motherboard in Bangladesh is 8,600৳. You can buy the ASUS PRIME H510M-D 10th & 11th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.

Questions (0)

Have question about this product? Get specific details about this product from expert.

textsms
There are no questions asked yet. Be the first one to ask a question.

Reviews (1)

Get specific details about this product from customers who own it.

5 out of 5 star star star star star
star star star star star

Performance outstanding with i310105 processor. I like this brand.

By Prasanta Roy Moulick on 09 May 2022
