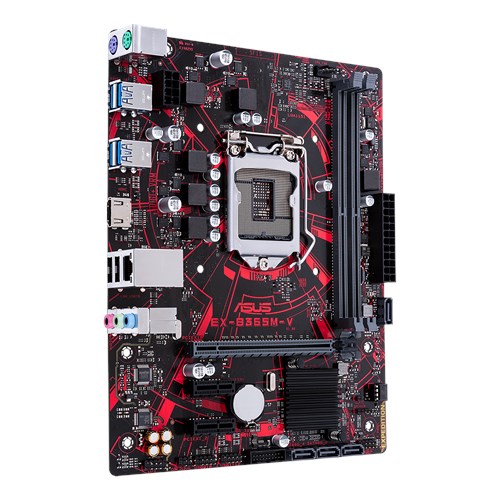

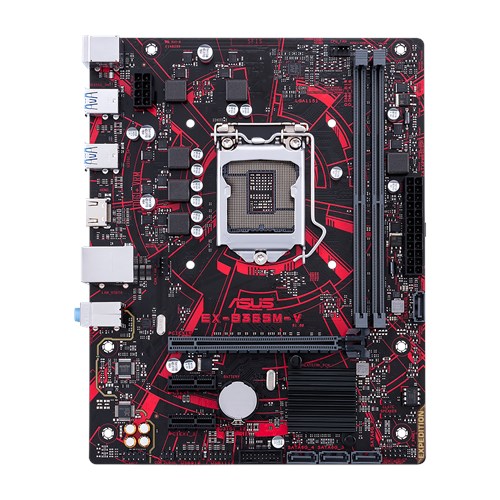

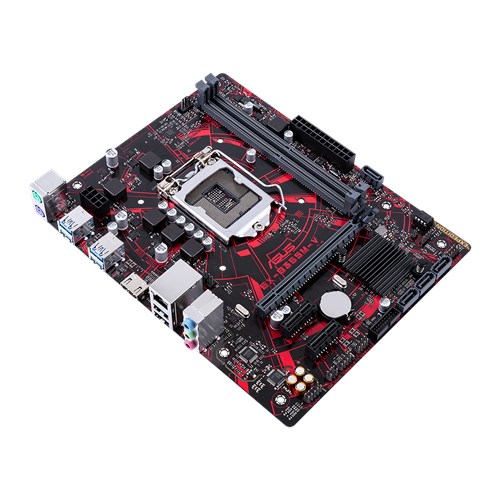

Asus EX-B365M-V DDR4 9th Gen Micro ATX Motherboard
  • Asus EX-B365M-V DDR4 9th Gen Micro ATX Motherboard
  • Asus EX-B365M-V DDR4 9th Gen Micro ATX Motherboard
  • Asus EX-B365M-V DDR4 9th Gen Micro ATX Motherboard

Asus EX-B365M-V DDR4 9th Gen Micro ATX Motherboard

Price 8,500৳
Regular Price 8,800৳
Status Discontinued
Product Code 10464
Brand Asus

Key Features

  • Model: Asus EX-B365M-V
  • Intel Socket 1151 for 9th / 8th Gen Processor
  • Chipset Intel B365
  • Max. 32GB Memory
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUIntel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
ChipsetIntel B365
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS
Form FactormATX Form Factor 8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC
Expansion Slots
PCI1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1
M.2 SocketNo
Memory
Supported Memory2 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory32GB
Graphics
GraphicsIntegrated Graphics Processor- Intel® HD Graphics support
VGA output support : HDMI port
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz

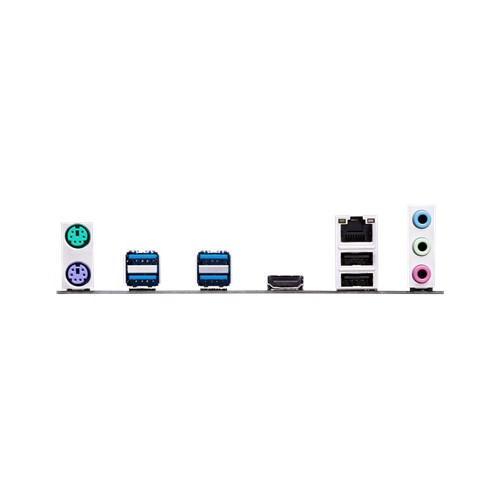

Connector & Ports
HDMI1 x HDMI
USB (s)4 x USB 3.1 Gen 1
2 x USB 2.0
LAN Port (s)1 x LAN (RJ45) port(s)
Audio3 x Audio jack(s)
Internal I/O Ports1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x COM Debug header
1 x Clear CMOS jumper(s)
Warranty Information
Manufacturing Warranty02 Years
Others
Special Features ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
- ASUS ESD Guards - Enhanced ESD protection
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

Description

Asus EX-B365M-V Intel LGA 1151 mATX motherboard with luminous anti-moisture coating, USBGuard, DDR4 2666MHz, HDMI, SATA 6Gbps and USB 3.1 Gen 1, and 8-pin power connector. The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses.Unbeatable features including luminous anti-moisture coating, USBGuard, SafeSlot Core, Stainless-steel back I/O and 5X Protection III.ASUS Beyond VR ready and Epic audio. ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
