close| Price | 21,500৳ |
| Regular Price | 23,650৳ |
| Status | In Stock |
| Product Code | 49282 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel B760 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slot (support x1 mode) |
|
| M.2 Socket | 3 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 192GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMITM port*** * Graphics specifications may vary between CPU types |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 *The Bluetooth version may vary, |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports |
|
| RAID | * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Aura Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet 3 x Audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool AURA Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

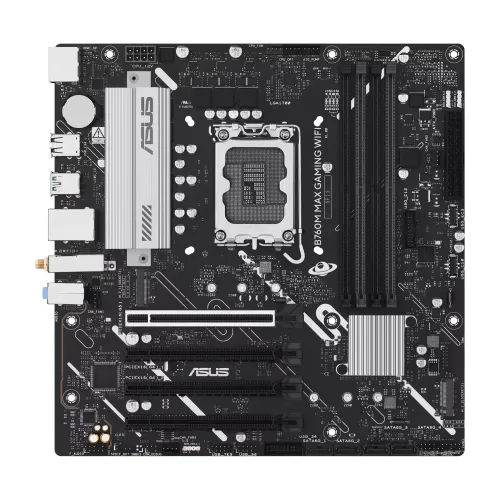

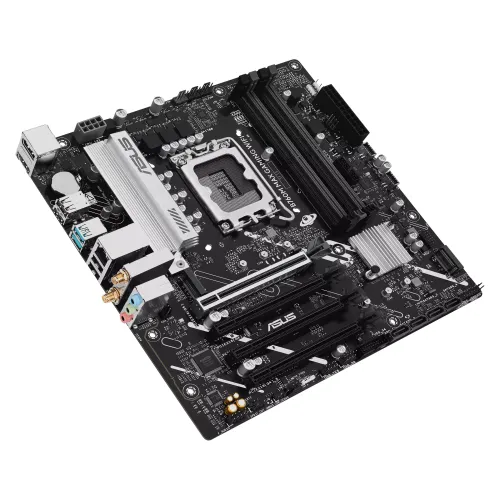

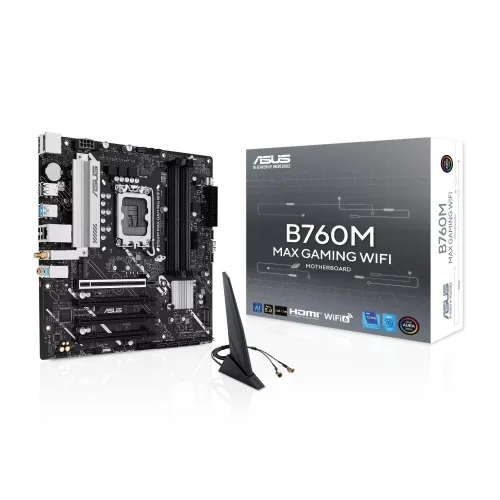

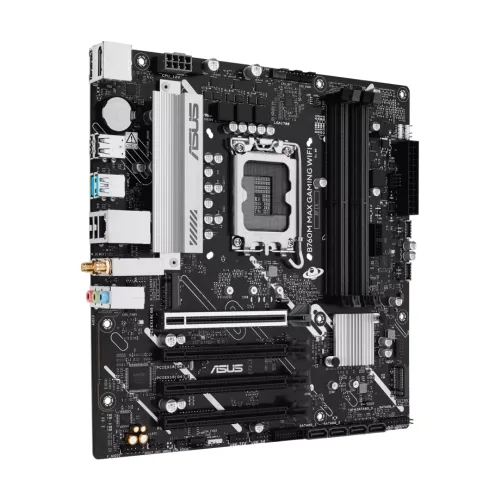

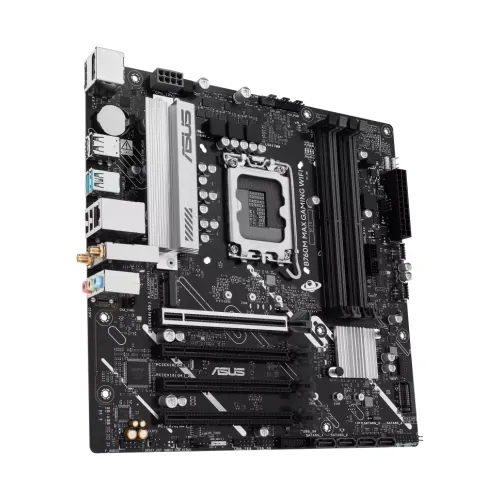

The ASUS B760M MAX GAMING WIFI mATX Motherboard is designed for gamers and PC builders who demand performance, stability, and modern connectivity. Powered by the Intel B760 chipset and LGA 1700 socket, this ASUS Gaming Motherboard supports Intel 12th, 13th, and 14th Gen processors, DDR5 memory, and PCIe 5.0 expansion, making it a future‑ready choice for high‑performance gaming rigs and productivity systems.
The ASUS B760M MAX GAMING WIFI Motherboard ensures compatibility with Intel Core 12th, 13th, and 14th Gen CPUs, delivering fast and efficient performance for gaming, streaming, and multitasking. With dual DDR5 DIMM slots, it supports up to 128GB of memory with advanced overclocking capabilities. This ASUS mATX Motherboard combines compact design with powerful features, making it ideal for mid‑tower builds.
Equipped with PCIe 5.0 x16 SafeSlot for next‑generation GPUs and multiple PCIe 4.0 slots for expansion, the ASUS B760M MAX GAMING WIFI Motherboard provides flexibility for upgrades. Dual M.2 slots (PCIe 4.0) and SATA 6Gb/s ports allow for ultra‑fast NVMe SSDs and traditional HDDs, ensuring versatile storage options for gamers and creators.
This ASUS WiFi Motherboard offers advanced networking with Wi‑Fi 6E for ultra‑fast wireless speeds and Intel 2.5Gb Ethernet for stable wired connections. The rear I/O panel includes HDMI and DisplayPort outputs, multiple USB 3.2 Gen 2 and USB Type‑C ports, and audio jacks powered by Realtek codec for immersive sound. Whether gaming online or streaming content, this ASUS Prime Intel Motherboard ensures seamless connectivity.
With robust VRM design, heatsinks, and ASUS Fan Xpert software, the ASUS B760M MAX GAMING WIFI Motherboard maintains efficient cooling under heavy loads. Its micro‑ATX form factor makes it suitable for compact cases, while customizable RGB lighting enhances the aesthetics of any gaming setup.
In Bangladesh, you can get the original ASUS B760M MAX GAMING WIFI mATX Motherboard From Star Tech. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The ASUS B760M MAX GAMING WIFI Motherboard comes with 3 years warranty.
The latest price of ASUS B760M MAX GAMING WIFI Motherboard in Bangladesh is 21,500৳. You can buy the ASUS B760M MAX GAMING WIFI Motherboard at best price from our website or visit any of our showrooms.
