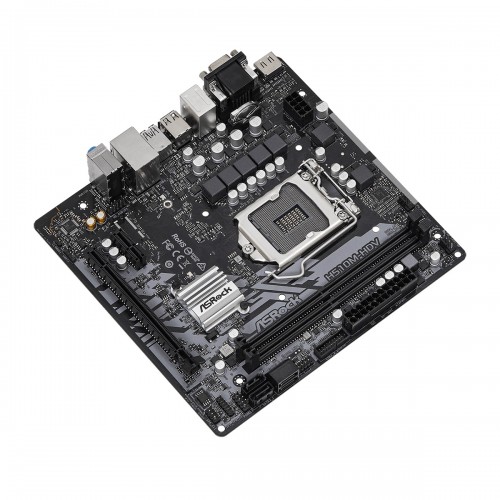

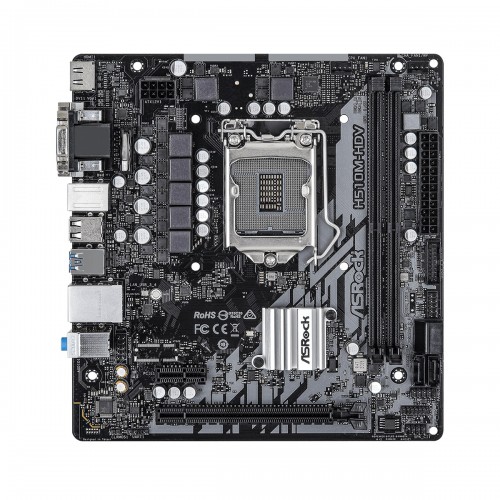

ASRock H510M-HDV 11th and 10th Gen Micro ATX Motherboard
  • ASRock H510M-HDV 11th and 10th Gen Micro ATX Motherboard
  • ASRock H510M-HDV 11th and 10th Gen Micro ATX Motherboard
  • ASRock H510M-HDV 11th and 10th Gen Micro ATX Motherboard

ASRock H510M-HDV 11th and 10th Gen Micro ATX Motherboard

Price 7,700৳
Status In Stock
Product Code 19558
Brand ASRock

Key Features

  • Model: H510M-HDV
  • Supports 10th and 11th Gen Intel Core Processors
  • Supports DDR4 3200MHz (OC)
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
  • Output Options: HDMI, DVI-D, D-Sub
  • View More Info

Payment Options

Specification

Basic Information
Supported CPU- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
- 5 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
ChipsetIntel H510
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake-up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment
Form Factor- Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
- Solid Capacitor design
Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
Expansion Slots
PCI11th Gen Intel Core Processors
- 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel Core Processors
- 1 x PCI Express 3.0 x16 Slot*
- 1 x PCI Express 3.0 x1 Slot
Memory
TypeDDR4
Slots 2 x DDR4 DIMM Slots
Supported Memory- Dual Channel DDR4 Memory Technology
- Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
Maximum Memory64GB
Graphics
Graphics- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
- Three graphics output options: D-Sub, DVI-D and HDMI**
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel Core Processors
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel Core Processors
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel Core Processors)

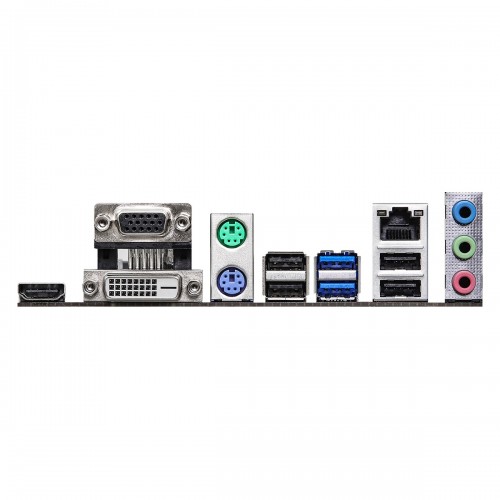

Connector & Ports
HDMISupports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
D-Sub (s)Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
DVI-D (s)Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
USB (s)4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
LAN Port (s)- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- 1 x Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Supported Storage- 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
Audio1 x Front Panel Audio Connector
Internal I/O Ports- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )- 1 x SPI TPM Header
Warranty Information
Manufacturing Warranty03 years warranty
Others
Special Features ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Description

ASRock H510M-HDV 11th and 10th Gen Micro ATX Motherboard

The ASRock H510M-HDV Motherboard Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors. It supports DDR4 3200MHz (OC). It comes with 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 and 3 Graphics Output Options: HDMI, DVI-D, D-Sub. Plus the HDMI port supports 4K resolution. ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Conventional PC systems processors can only access a fraction of graphics memory and limit system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, remove the bottleneck, and increase performance. It comes with a 7.1 CH HD Audio (Realtek ALC897 Audio Codec). It also has 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front) and 6 x USB 2.0 (4 x Rear, 2 x Front). It is equipped with Intel Gigabit LAN that provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver the ultimate network experience to users. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. The ASRock H510M-HDV has 3 years of warranty.

What is the price of ASRock H510M-HDV 11th and 10th Gen Motherboard in Bangladesh?

The latest price of ASRock H510M-HDV 11th and 10th Gen Motherboard in Bangladesh is 7,700৳. You can buy the ASRock H510M-HDV 11th and 10th Gen Motherboard at best price from our website or visit any of our showrooms.
