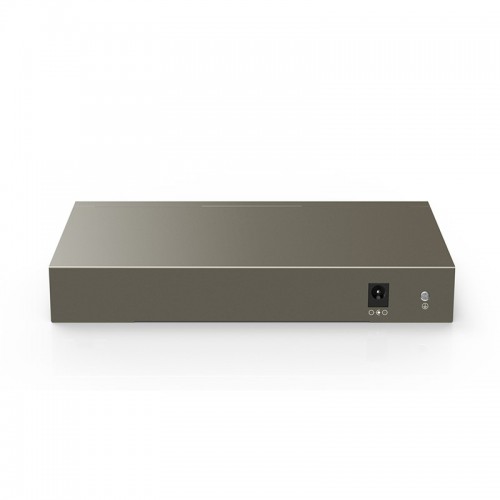

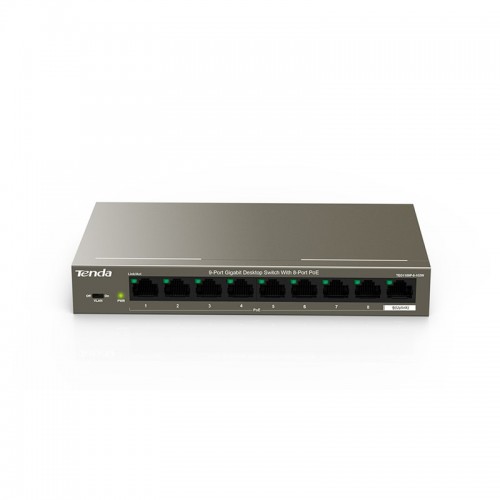

Tenda TEG1109P 8-Port PoE 10/100 Mbps Gigabit Desktop Switch
  • Tenda TEG1109P 8-Port PoE 10/100 Mbps Gigabit Desktop Switch
  • Tenda TEG1109P 8-Port PoE 10/100 Mbps Gigabit Desktop Switch
Product Page After Image | Lenovo Ideapad Flex 5

Tenda TEG1109P 8-Port PoE 10/100 Mbps Gigabit Desktop Switch

Price To be announced
Status Out Of Stock
Product Code 10523
Brand Tenda

Key Features

  • Model: Tenda TEG1109P
  • Simple Port VLAN Setup
  • Excellent Lightning Protection
  • Outstanding PoE Power Supply
  • Integrated with Smart Power
  • View More Info
stars 25 Star Points
Out Of Stock

Specification

Main Feature
Port8-Port
Network StandardIEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
Access Method1 10/100/1000Mbps RJ45 Ports(Data)
Advanced FunctionsExcellent Lightning Protection
Wire-speed forwarding:Support
Forwarding mode:Store-forward and cut-through
Transmission MethodWired
Data Transmission Rate8 10/100/1000Mbps RJ45 Ports(Data/PoE)
1 10/100/1000Mbps RJ45 Ports(Data)
(Auto Negotiation/Auto MDI/MDIX)
MAC Address Table16K
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Hardware Features
Power SupplyPort 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W), PoE power type is end-span(12+, 36- line pair)
Dimensions (L x W x H)177.5mm x 104mm x 26mm(W × D × H)
Manufacture Warranty
Warranty1 Year

Description

Tenda TEG1109P 8-Port PoE 10/100 Mbps Gigabit Desktop Switch

TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for uplink port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easierconfigure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor. The switch supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30Wmaximum PoE output a single port and 92W the whole device. 2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously. It includes chips with smart power management function and integrated professional chip control algorithm,which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.

What is the price of Tenda TEG1109P 8-Port Switch in Bangladesh?

The latest price of Tenda TEG1109P 8-Port Switch in Bangladesh is 7,700৳. You can buy the Tenda TEG1109P 8-Port Switch at best price from our website or visit any of our showrooms.
