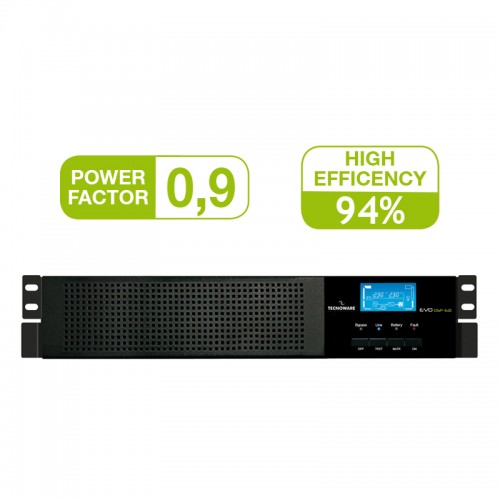

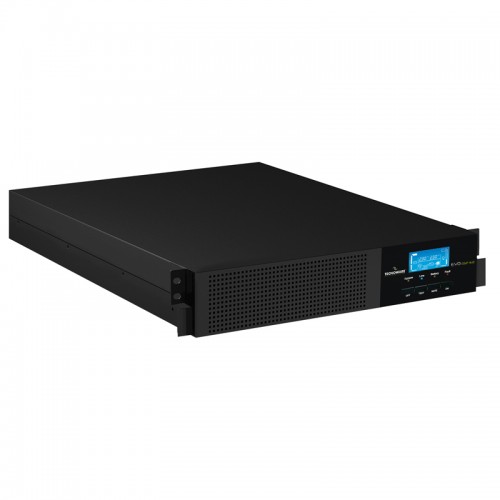

Tecnoware FGCEVDP6MMRM/00 6KVA EVO DSP MM Online UPS
  • Tecnoware FGCEVDP6MMRM/00 6KVA EVO DSP MM Online UPS
Product Page After Image | Lenovo Ideapad Flex 5

Tecnoware FGCEVDP6MMRM/00 6KVA EVO DSP MM Online UPS

Price To be announced
Status Out Of Stock
Product Code 13358
Brand Tecnoware

Key Features

  • Model: Tecnoware FGCEVDP6MMRM/00
  • Dimension (WxHxD): 43.8 x 13.3 x 58cm (3U)
  • Capacity: 6 kVA
  • Power factor: 9 kW
  • Number of phases: 1Ph+N
  • View More Info
info Call for Best Price: 01313717027
Out Of Stock

Specification

Main Feature
Capacity6 kVA
Load CapacityOverload capability (Line mode):
110% for 10 minutes, 130% for 1 minute, >130% for 1 second
Overload capability (Battery mode):
110% for 30 seconds, 130% for 10 seconds, >130% for 1 second
Efficiency:
94%, calculated in double conversion mode at 100% load to 100% load according to standard 62040-3
Frequency (Battery Mode)50/60HZ
Noise Level< 48 dBA to 1 m
BatteryType: Lead acid, sealed, maintenance free
Input Features
Frequency50/60 Hz (selectable)
Power Factor0.99
Voltage RangeNominal voltage:
208Vac/220Vac/230Vac/240Vac
Input voltage range:
176Vac-300Vac from 50% to 100% load, 110Vac-300Vac from to 50% load
Output Features
Voltage RangeNominal voltage:
208Vac/220Vac/230Vac/240Vac
Voltage Regulation (On-Line and Battery mode):
±1%
Power FactorNominal voltage:
208Vac/220Vac/230Vac/240Vac
Voltage Regulation at %100 linear load (On-Line and Battery mode):
±1%
Type of WaveSinewave
Transfer Time0 ms (On-Line)
Rated powerVoltage THD <3% (linear load), <6% (non-linear load)
Manufacture Warranty
Warranty02 Years Warranty

Description

Tecnoware FGCEVDP6MMRM/00 6KVA EVO DSP MM Online UPS

Tecnoware FGCEVDP6MMRM/00 Online UPS features with On-Line double conversion technology without transformer (VFI-SS-111), Power Factor 0,9. Here the Rectifier realized by IGBT technology with Active PFC Circuit (0.9). This UPS also Compatible with generators and EPO (Emergency Power Off). The Output voltage and frequency can be regulated from the front pane, Static and Manual Bypass. And here used Tecno Manager UPS Management Software. The UPS has 94% High Efficiency calculated in double conversion mode at 100% load, which is according to 62040-3: 2011 standard. This Online UPS also features with SINGLE-PHASE/SINGLE-PHASE 230/230 50/60Hz, POWER 6 kVA, COS 0.9, Online Double Conversion technology without transformer, DSP System, Multifunction LCD Display, Micro processor drived battery charge system, STATIC and MANUAL BYPASS, RS232 and USB, TECNOMANAGER Software.

This New Online UPS comes with 02 Years warranty.

What is the price of Tecnoware FGCEVDP6MMRM/00 Online UPS in Bangladesh?

The latest price of Tecnoware FGCEVDP6MMRM/00 Online UPS in Bangladesh is 0৳. You can buy the Tecnoware FGCEVDP6MMRM/00 Online UPS at best price from our website or visit any of our showrooms.
