| Price | To be announced |
| Status | Up Coming |
| Product Code | 44881 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
|
| Chipset | INTEL H810 | |
| Form Factor | Mini-ITX 170mmx170mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
|
| M.2 Socket | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|

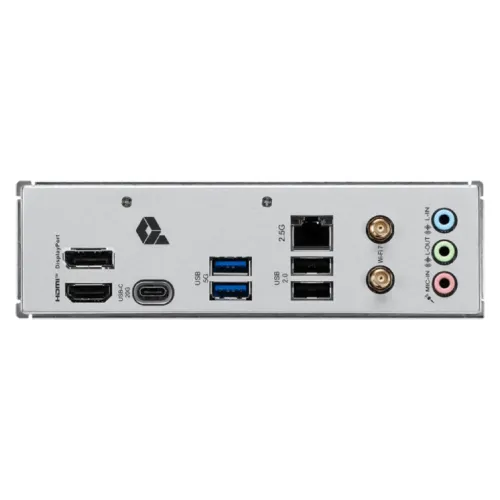

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| LAN Port (s) | Intel I226 2.5Gbps LAN | |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty | |

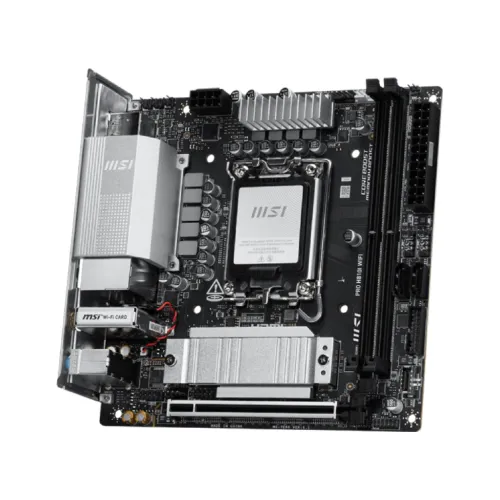

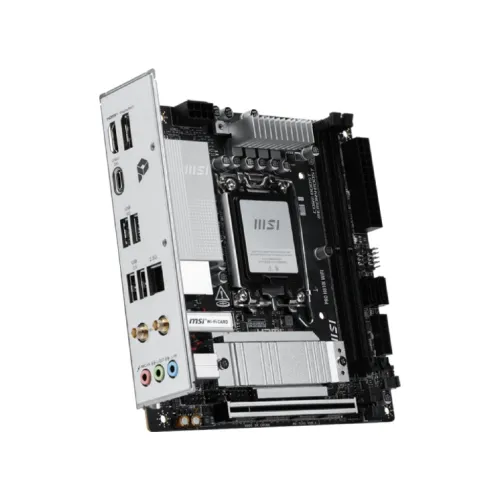

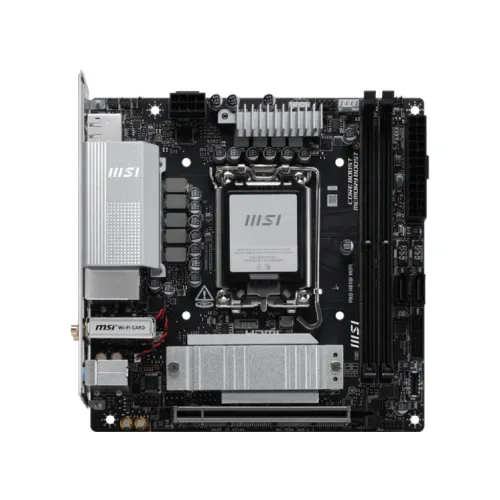

The MSI PRO H810I WIFI LGA 1851 Mini-ITX motherboard is a small but powerful option for modern PC setups that require cutting-edge performance and next-generation connections. It is powered by the Intel H810 chipset and supports Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, making it a long-term option for those seeking a dependable platform for productivity, gaming, and multimedia operations. MSI PRO H810I WIFI Mini-ITX motherboard supports dual-channel DDR5 memory, allowing up to 128GB of capacity and speeds up to 6400 MT/s, while Intel XMP 3.0 provides seamless overclocking for improved performance. The MSI Mini-ITX motherboard has Core Boost and Memory Boost technologies to ensure consistent power delivery and clean data transmission, resulting in efficiency for demanding applications. MSI's Frozr Guard provides cooling, which features an expanded heatsink, M.2 Shield Frozr, and MOSFET thermal pads rated at 7W/mK to keep temperatures under control during heavy operation. A PCIe 5.0 x16 slot allows for expansion with the latest graphics cards, while a PCIe 4.0 x4 M.2 slot and two SATA 6Gb/s connectors provide storage support. The MSI PRO H810I WIFI Mini-ITX motherboard supports Intel I226 2.5Gbps LAN and sophisticated Wi-Fi 7 with Bluetooth 5.4 for safe, stable, and ultra-fast networking at speeds of up to 2.9Gbps. Display choices include HDMI 2.1 and DisplayPort 1.4, with 4K resolution at 60Hz depending on the CPU. The Realtek ALC897 codec handles audio, and the 7.1-channel high-definition sound ensures an immersive experience. The USB possibilities are wide, with a 20Gbps Type-C on the back, a 10Gbps Type-C on the front, several USB 5Gbps, and more USB 2.0 ports. Features such as EZ PCIe Clip II, EZ Debug LEDs, and EZ Memory Detection facilitate installation and troubleshooting, while RGB headers allow for more customization. The MSI PRO H810I WIFI Mini-ITX motherboard, which supports Windows 11 64-bit, strikes the perfect balance between tiny form factor, robust performance, and next-generation networking, making it an excellent choice for both small form factor enthusiasts and professionals.
In Bangladesh, you can get original MSI PRO H810I WIFI Mini-ITX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO H810I WIFI Mini-ITX Motherboard comes with a 3-year Warranty.
The latest price of MSI PRO H810I WIFI Mini-ITX Motherboard in Bangladesh is 0৳. You can buy the MSI PRO H810I WIFI Mini-ITX Motherboard at best price from our website or visit any of our showrooms.
