close| Price | To be announced |
| Status | Up Coming |
| Product Code | 48540 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4 |
|
| Chipset | AMD B550 | |
| Form Factor | mATX 220mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2x DDR4 | |
| Supported Memory | Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4600+ MHz • 1DPC 2R Max speed up to 3866+ MHz |
|
| Maximum Memory | up to 64GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.2, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|

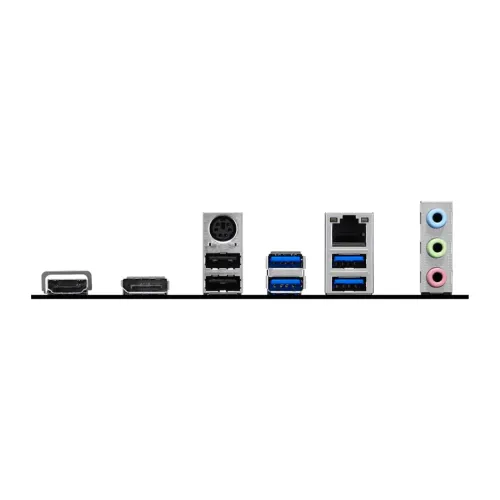

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port | |
| Display Port (s) | 1x DisplayPort 1.2 | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
|
| LAN Port (s) | 1 x Realtek RTL8111H 1Gbps LAN | |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices 4x SATA 6G |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

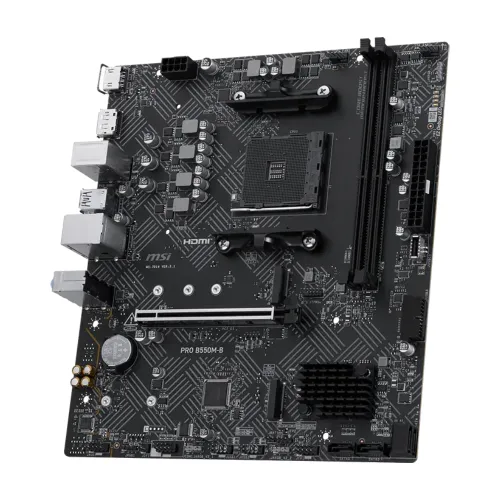

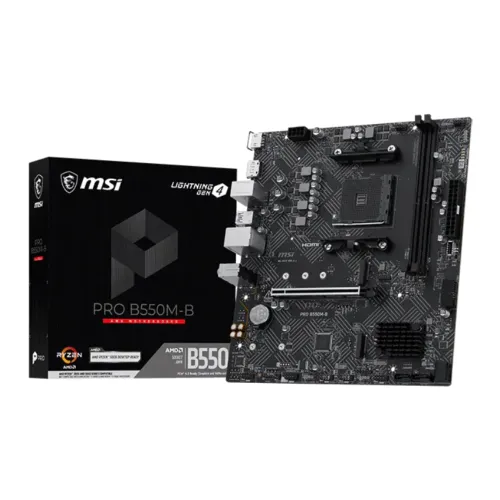

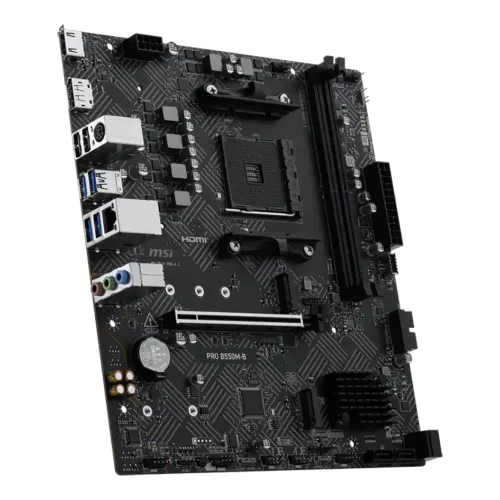

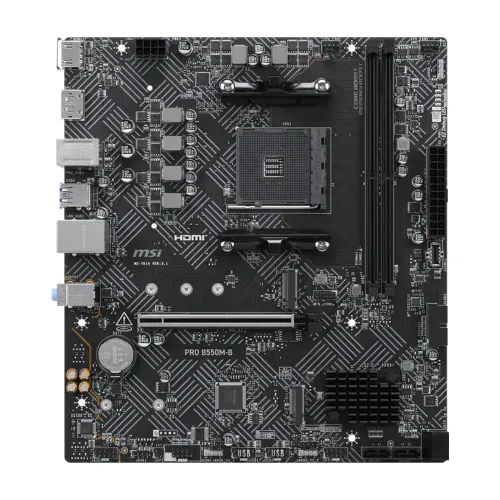

The MSI PRO B550M-B Motherboard is a dependable and efficient MSI AMD Motherboard designed for mainstream PC builders who want stability, performance, and essential features at a great value. Built on the AMD B550 chipset with support for the AM4 socket, it is fully compatible with a wide range of AMD Ryzen 3000, 4000, and 5000 series processors, making it a versatile choice for gaming and productivity. With support for DDR4 memory up to 128GB and speeds reaching 4400+ MHz (OC), this MSI 550 Motherboard ensures smooth multitasking and fast responsiveness. It features PCIe 4.0 support for next-gen graphics cards and NVMe SSDs, delivering ultra-fast data transfer speeds and future-proof expansion. Storage options include M.2 slots with PCIe 4.0/3.0 support and multiple SATA ports, giving flexibility for both high-speed SSDs and traditional drives. Connectivity is practical with USB 3.2 Gen1 ports, HDMI and DVI-D outputs, and Gigabit LAN, ensuring stable networking and versatile display options. Enhanced with Core Boost technology, Audio Boost, and premium thermal solutions, the MSI PRO B550M-B provides reliable power delivery, improved sound quality, and efficient cooling for long-term durability. Compact in micro-ATX form factor, it fits easily into smaller cases while still offering robust functionality. Whether you’re building a budget-friendly gaming rig or a productivity workstation, the MSI PRO B550M-B Motherboard delivers dependable performance, essential features, and MSI’s trusted quality.
In Bangladesh, you can get original MSI PRO B550M-B AMD AM4 mATX Motherboard From Star Tech. We have a large collection of latest MSI AMD Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO B550M-B Motherboard Comes with 03 Years Warranty.
The latest price of MSI PRO B550M-B Motherboard in Bangladesh is 0৳. You can buy the MSI PRO B550M-B Motherboard at best price from our website or visit any of our showrooms.
