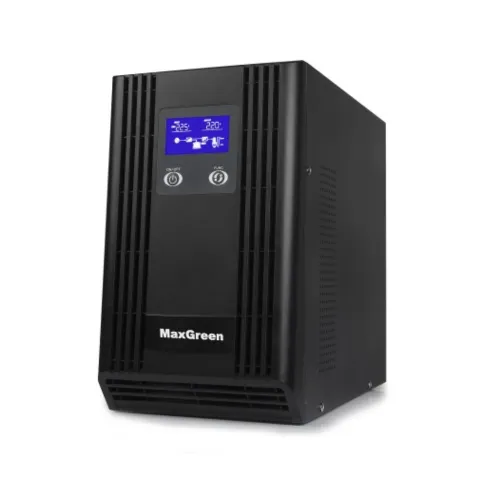

MaxGreen MGO-S1KS(PX1KL) Online UPS

MaxGreen MGO-S1KS(PX1KL) Online UPS

Price To be announced
Status Call for Price
Product Code 10327
Brand MaxGreen

Key Features

  • Model: MaxGreen MGO-S1KS(PX1KL)
  • Capacity 1KVA/900W
  • Input voltage 220VAC
  • 36V external battery
  • Weight 6.1kg
  • View More Info
info Call for Best Price: 01313717027
Call for Price

Specification

Main Feature
Capacity1KVA/900W
Input Voltage220VAC
Output Voltage220VAC
Frequency (Battery Mode)50Hz+/-0.05Hz
BatteryBattery Type Value Regulated Maintainance Free Lead Acid(VRLA) for standard Model with internal battery
Battery Voltage/Capacity 36V external battery
Recharge Time ~5Hours
Max recharge current 6A
Floating charge Voltage 27.3V/41.0V
Input Features
Frequency40~70Hz
Power Factor0.99@Full Load
Voltage Range110V~300V Halfload 176V~300V Full load
Manufacture Warranty
Warranty01 Year

Description

MaxGreen MGO-PX1K Online UPS has  Input Nominal input voltage 220VAC ,Voltage Range 110V~300V Halfload 176V~300V Full load, Frequency Range 40~70Hz,Power Factor 0.99@Full Load. Output voltage 220VAC,Voltage Regulation 1%, Frequency(Sync.Mode) 47Hz~53Hz. Frequency(Bat.Mode) 50Hz+/-0.05Hz ,Output THDv 2% linear Load 6% Non-Linear Load ,Waveform Pure Sinewave. Transfer Time Line Mode--Bat Mode 0ms, Inv--Bypass Mode <4ms. Efficiency AC-AC 89% ,ECO 94% ,Battery Mode 88%. Battery & Charger Voltage/Capacity 36V external battery. Battery Type Value Regulated Maintenance Free Lead Acid(VRLA) for standard Model with internal battery.Recharge Time ~5Hours.Max recharge current 6A. Floating charge Voltage 27.3V/41.0V. Display LCD, Buzzer Alarm Bat.Mode/Bat.Low/Overload/Fault. Dimension 145(W)X220(H)X328(L)mm. Weight 6.1kg. Environment Humidity 5~97%(Non Condensing) .Operating Ambient Temperature 0~40℃. Communication Port S 232/SNMP(opion)/USB(option).
