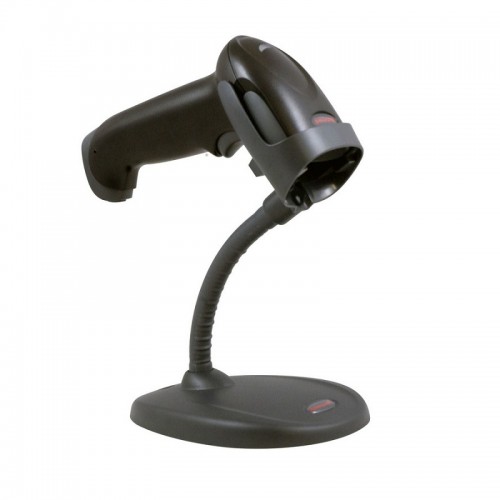

Honeywell Voyager 1250g General Duty Scanner

Honeywell Voyager 1250g General Duty Scanner

SCAN PERFORMANCE

• Scan Pattern- Single scan line

• Scan Angle- Horizontal: 30°

• Print Contrast- 20% minimum reflectance difference

• Pitch, Skew- 60°, 60°

• Decode Capabilities- Reads standard 1D and GS1 DataBar symbologies

MECHANICAL

• Dimensions (LxWxH)- 60 mm x 168 mm x 74 mm (2.3 in x 6.6 in x 2.9 in)

• Weight- 133 g (4.7 oz)

ELECTRICAL

• Input Voltage- 5 V ± 5%

• Operating Power- 700 mW; 140 mA (typical) @5V

• Standby Power- 425 mW; 85 mA (typical) @ 5V

ENVIRONMENTAL

• Operating Temperature- 0°C to 40°C (32°F to 104°F)

• Storage Temperature -20°C to 60°C (-4°F to 140°F)

• Humidity- 5% to 95% relative humidity, non-condensing
